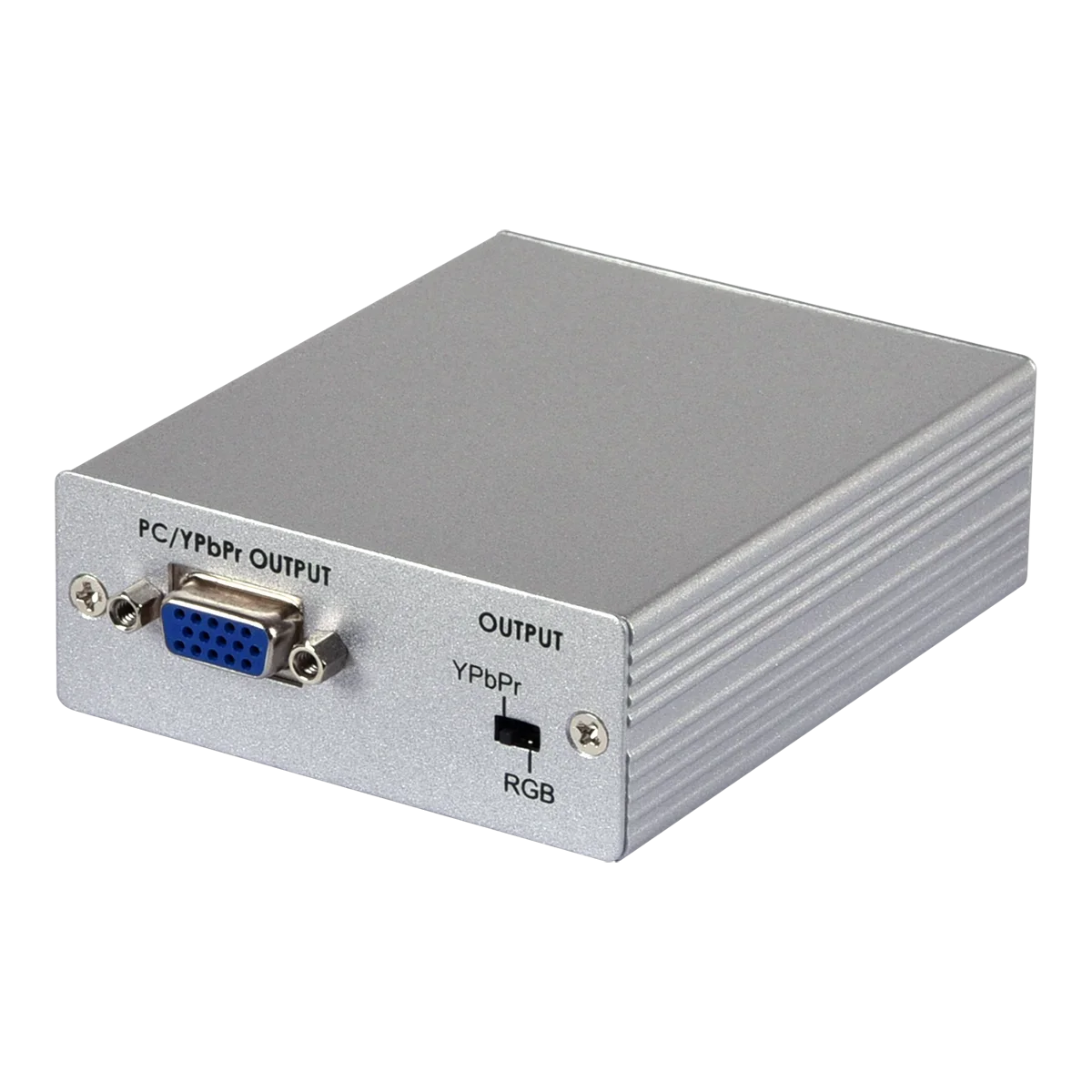

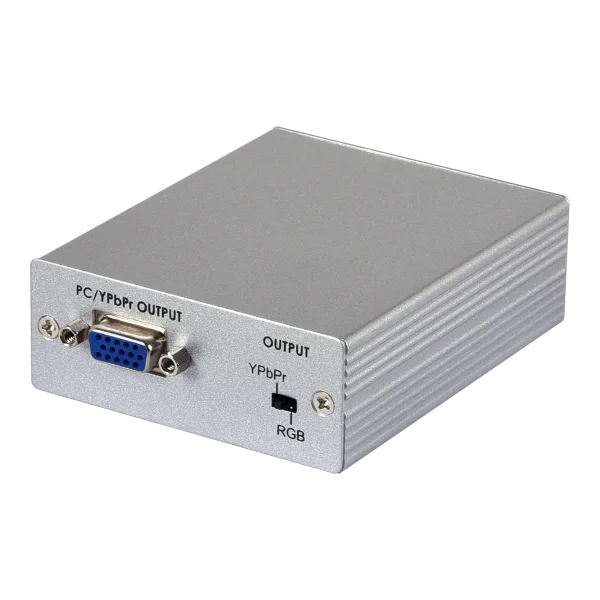

DVI to VGA Video Converter

Supports DVI-D input and Analog PC/RGB or HD YPbPr output , Supports output selection between YPbPr and RGB , Supports PC and HDTV resolutions , Built-in EDID

Hersteller-Nr.	CP-1262DI
Hersteller	Cypress Technology

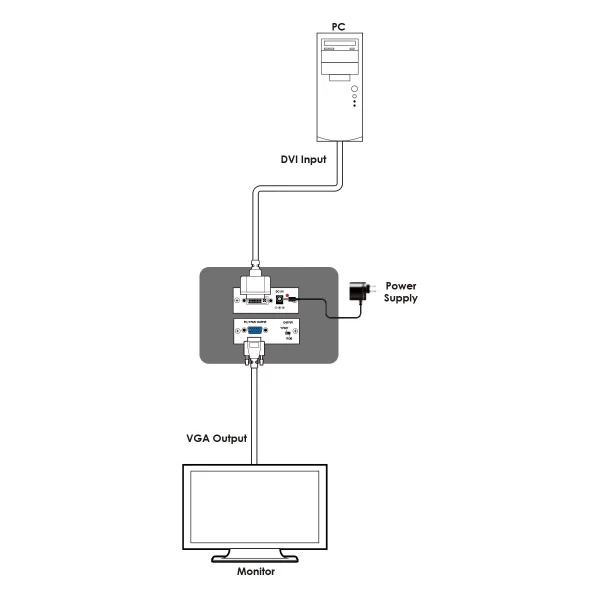

Nowadays although HDMI is popular, but VGA only projector, monitor and TV are still in use in some field. Same situation, source with DVI is still also in use in some filed. This converter box converts digital DVI-D to Analog PC/RGB or HD YPbPr output. It enables the DVI sources to connect with the analog PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions.

Interfaces

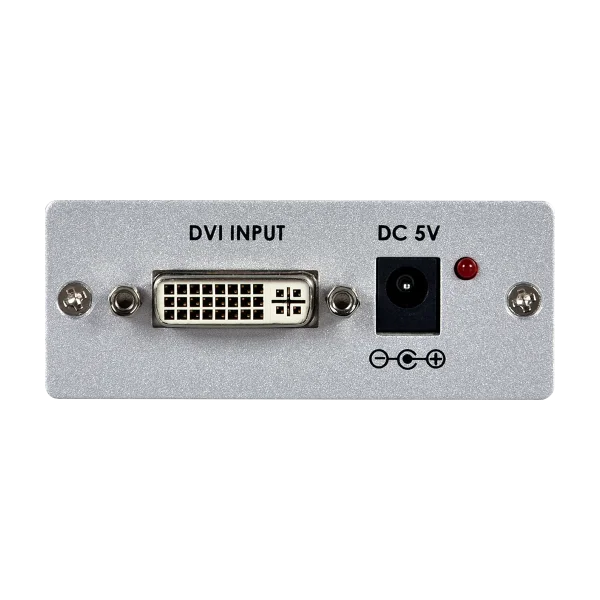

Input Port	1 DVI (only DVI-D supported)

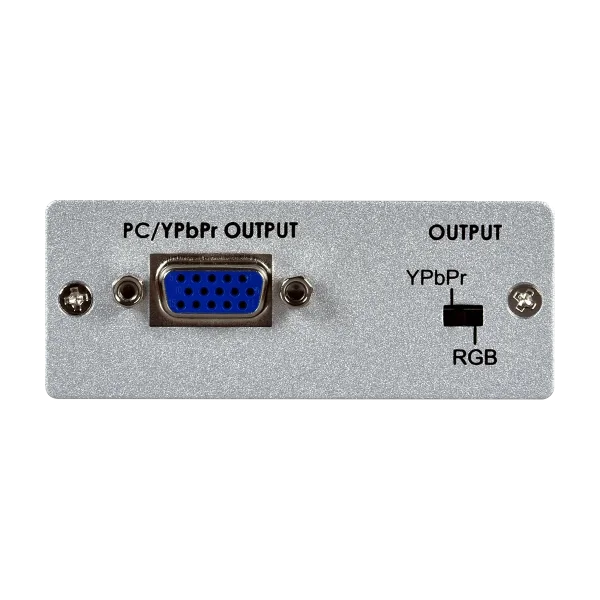

Output Port	1 VGA (HD-15)

Video
Input Signal Types	1 VGA (HD-15)
Output Signal Type	VGA 1920x1080p@60Hz

Resolutions
Maximum Input	DVI	1920×1080p@60
Maximum Output	VGA	1920×1080p@60

Power
Power Supply	5V/1.2A DC (Locking)
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Silver
Dimensions (W×H×D)	94mm×76.5mm×30mm [Case Only] 94mm×104mm×30mm [All Inclusive]
Weight	190g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CP-1262DI	DVI to VGA Video Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
