DCT-3AN

Supports digital audio input (Coaxial/Optical) and stereo analog audio output (L/R) , Integrated digital interpolator filter and Digital to Analog Converter (DAC , Supports uncompressed digital stereo audio input , Supports S/PDIF audio at 192kHz/24-bit data for conversion to left and right analog channels , Compact size and easy to install

Hersteller-Nr.	DCT-3AN
Hersteller	Cypress Technology

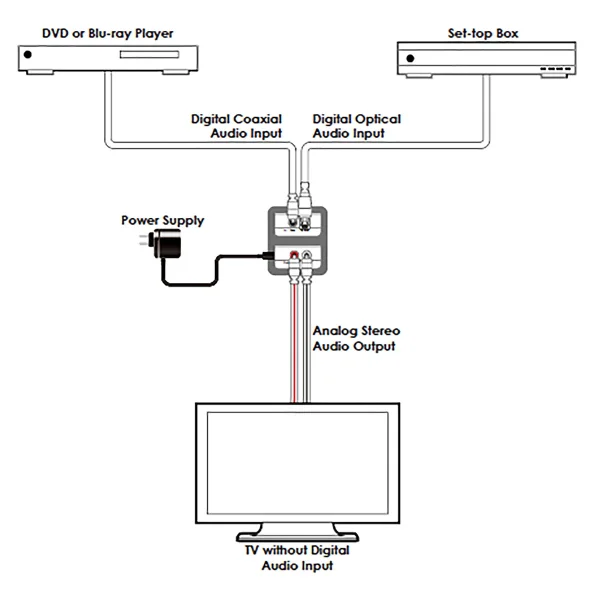

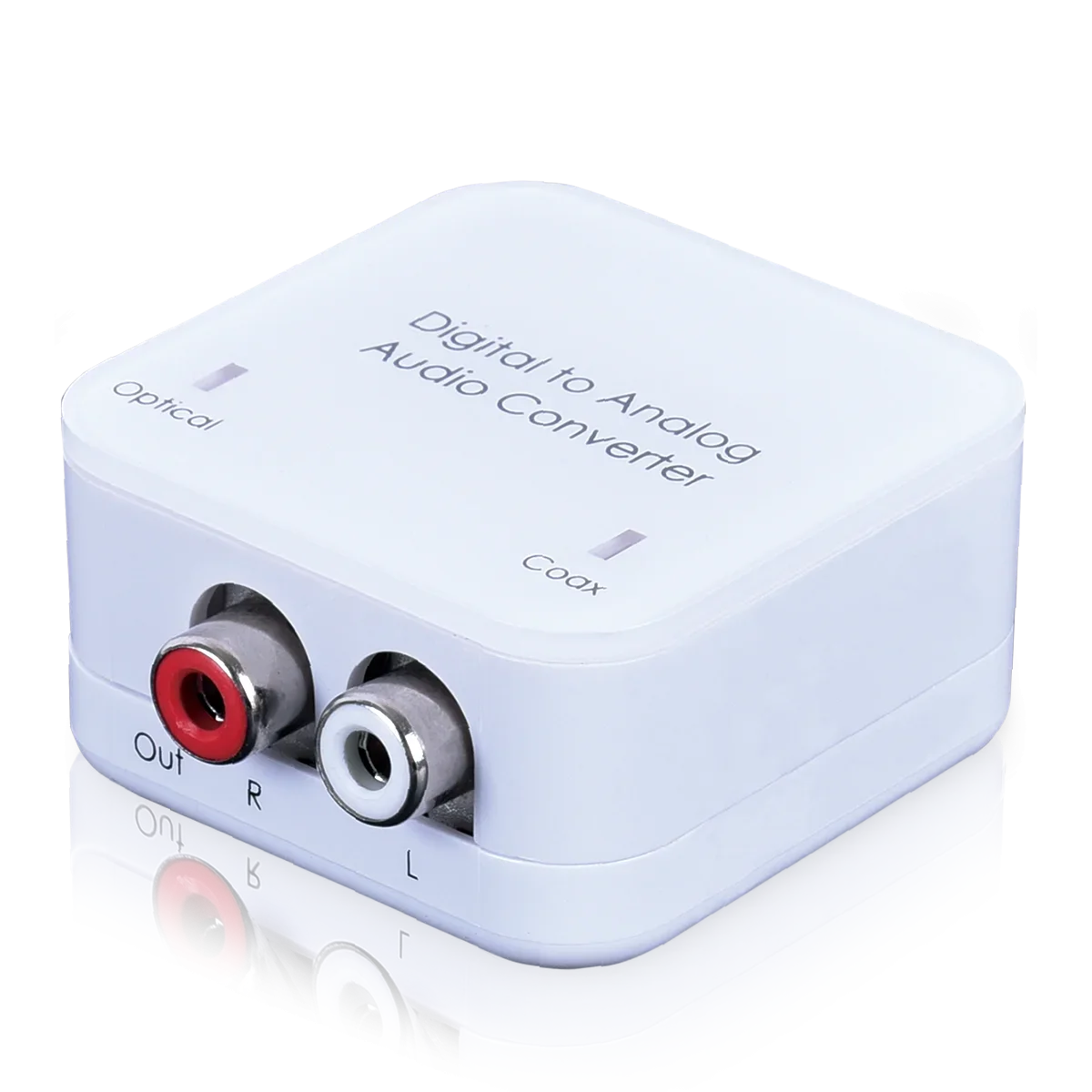

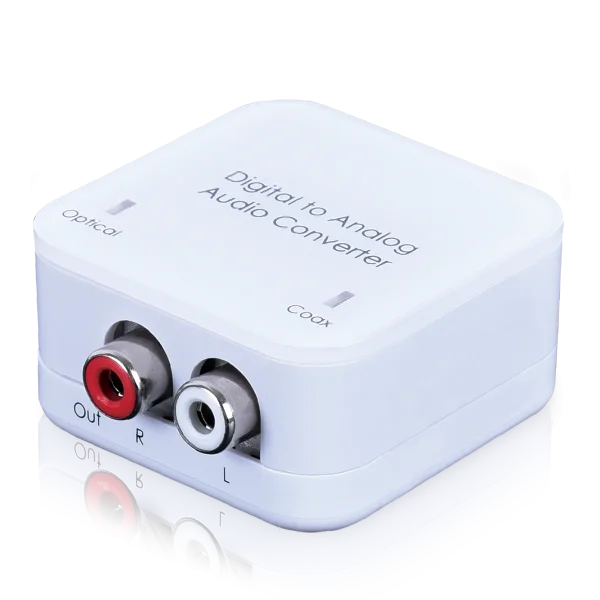

The Digital to Analog Audio Converter is an easy to use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs. With its compact, elegant design and simple LED input status make it easier for users to connect up and use instantly

Interfaces

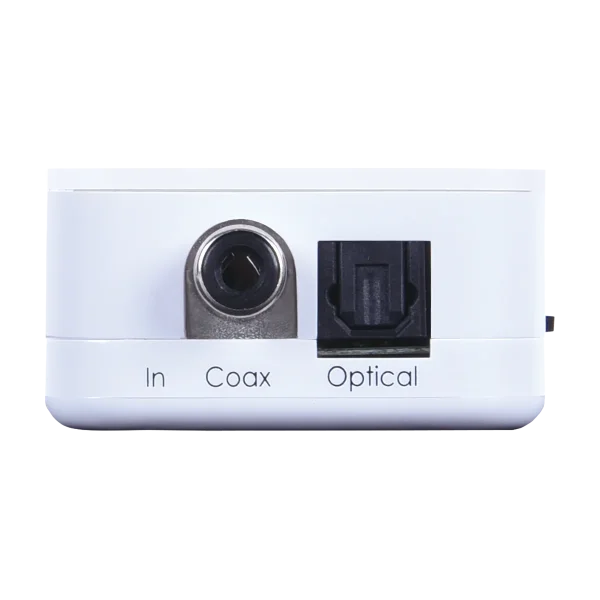

Input Port	1×TOSLINK (S/PDIF Audio) 1×RCA (S/PDIF Audio)

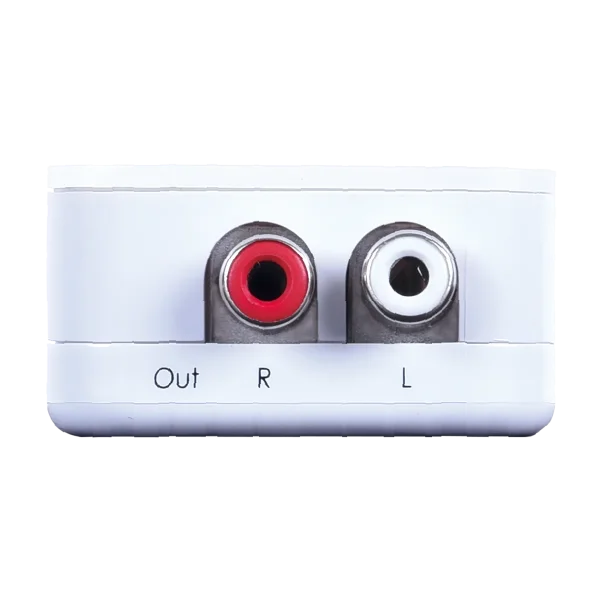

Output Port	2×RCA (Stereo Audio)

Power
Power Supply	5V/1.2A DC
Power Consumption	0.74W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	46mm×22.5mm×45.5mm [Case Only] 56mm×22.5mm×46mm [All Inclusive]
Weight	30g

Ordering Information
Model No.	Product Description
DCT-3AN	Digital to Analog Audio Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
