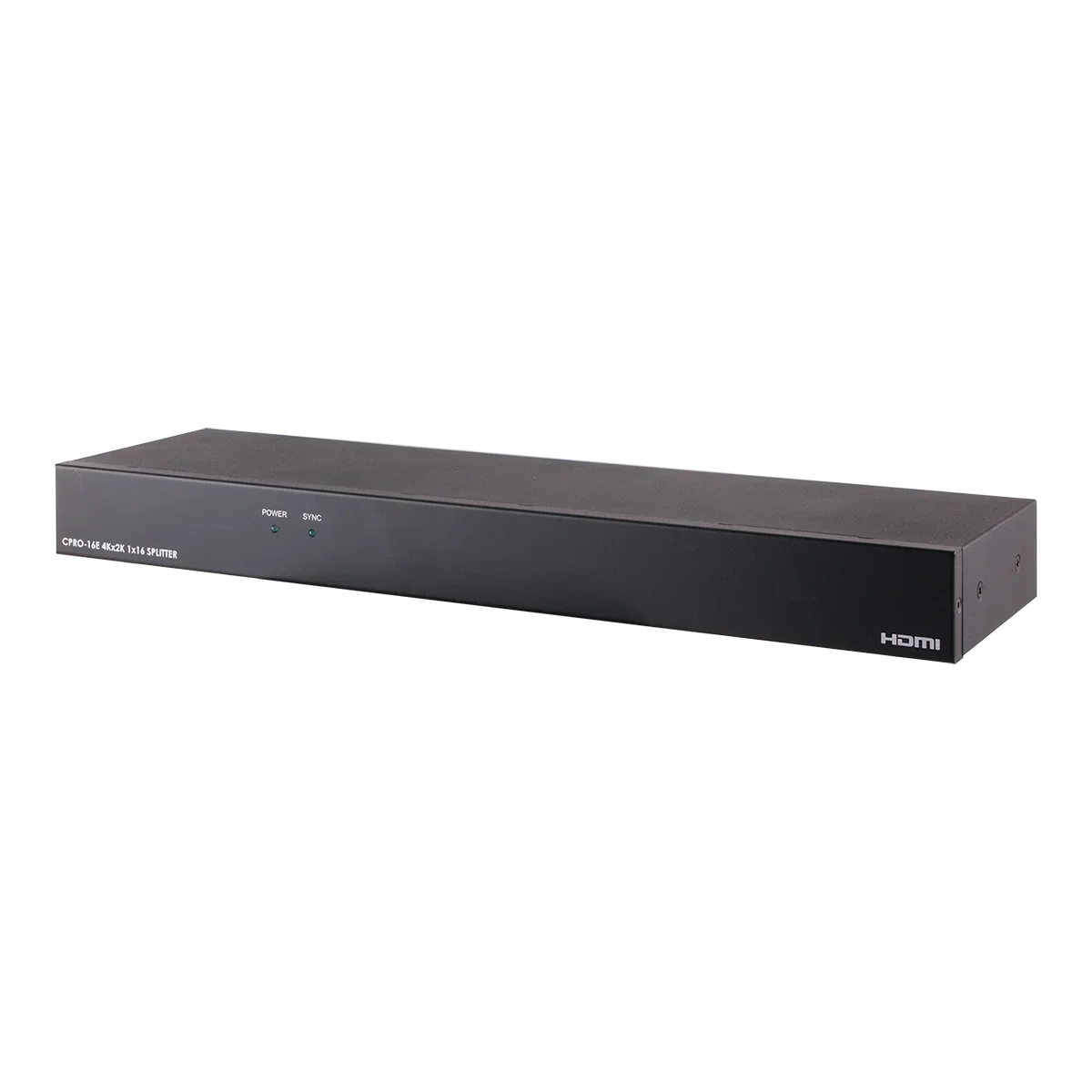

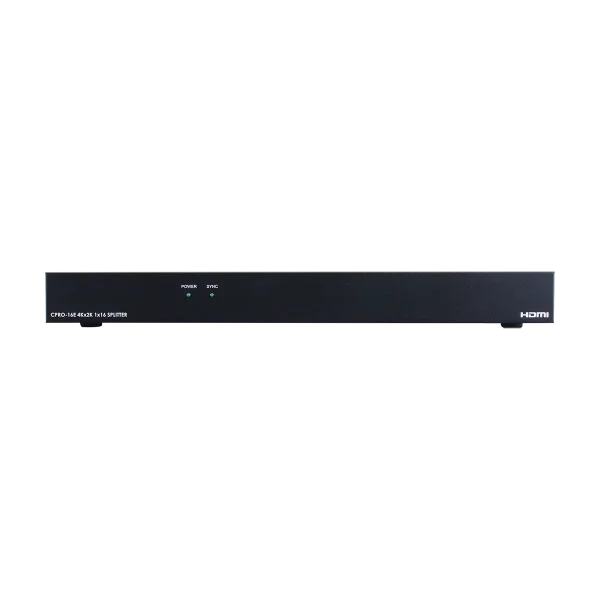

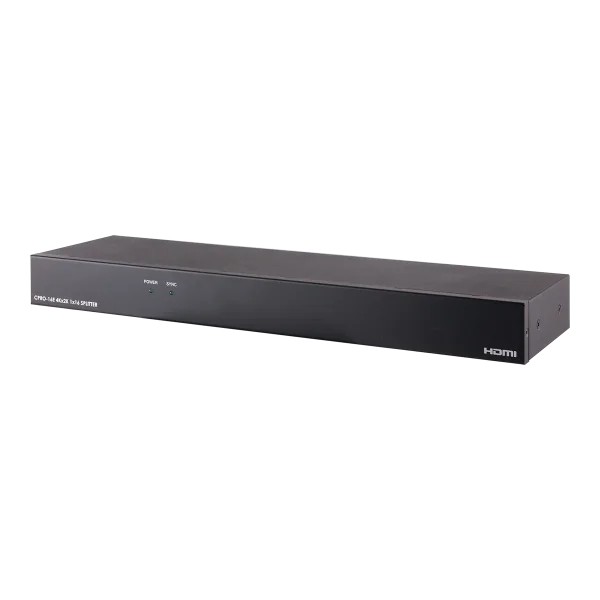

CPRO-16E

Supports HDTV resolutions up to 4K×2K/30 Hz, HDMI and DVI compatible, Supports 1080p@60Hz, Deep Color 12-bit, Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio, Supports 3D

Hersteller-Nr.	CPRO-16E
Hersteller	Cypress Technology

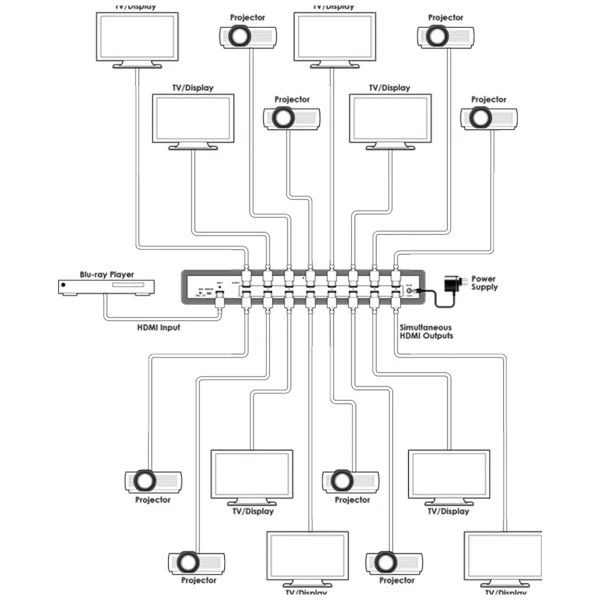

This range of high performance HDMI splitters provide one HDMI in to sixteen HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 9Gbps bandwidth and the addtional features of the latest HDMI standards you can be sure of great HDMI distribution.

Video Bandwidth	300 MHz/9 Gbps

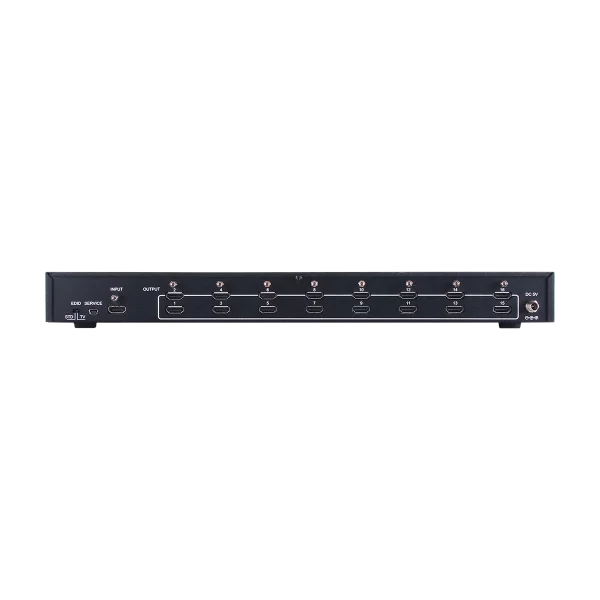

Input Port	1×HDMI (Female connector) 1×USB (Manufacturer use only)
Output Ports	16×HDMI (Female connector)
Output Resolution	480i~1080p@50/60, 1080p@24/50/60, VGA~WUXGA, 4K×2K@30
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	436 mm (W)×26 mm (D)×48 mm (H)
Weight	1664 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	15.8 W

Note: When displaying a 3D signal with a higher bandwidth than 225 MHz or a 4K×2K resolution source, a High Standard HDMI cable is quired.

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
