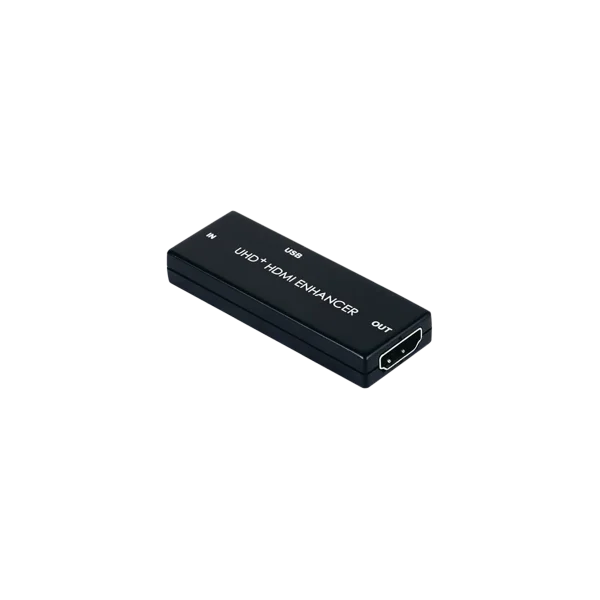

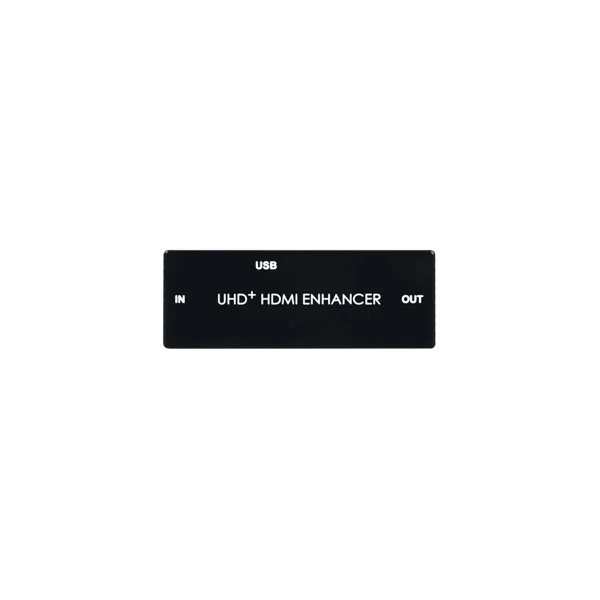

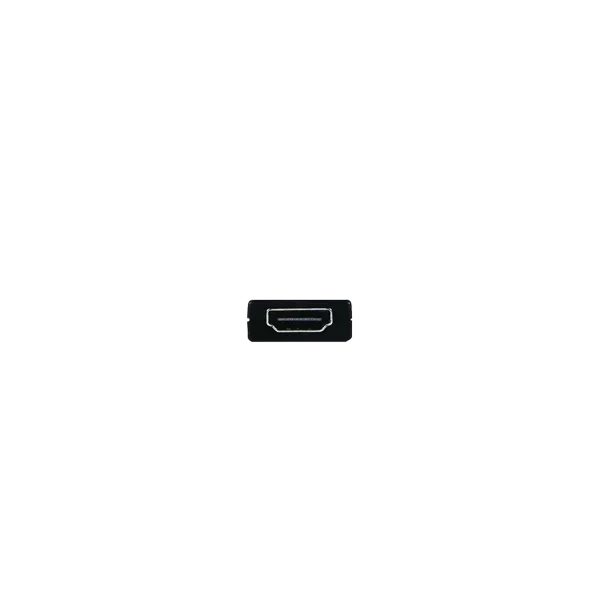

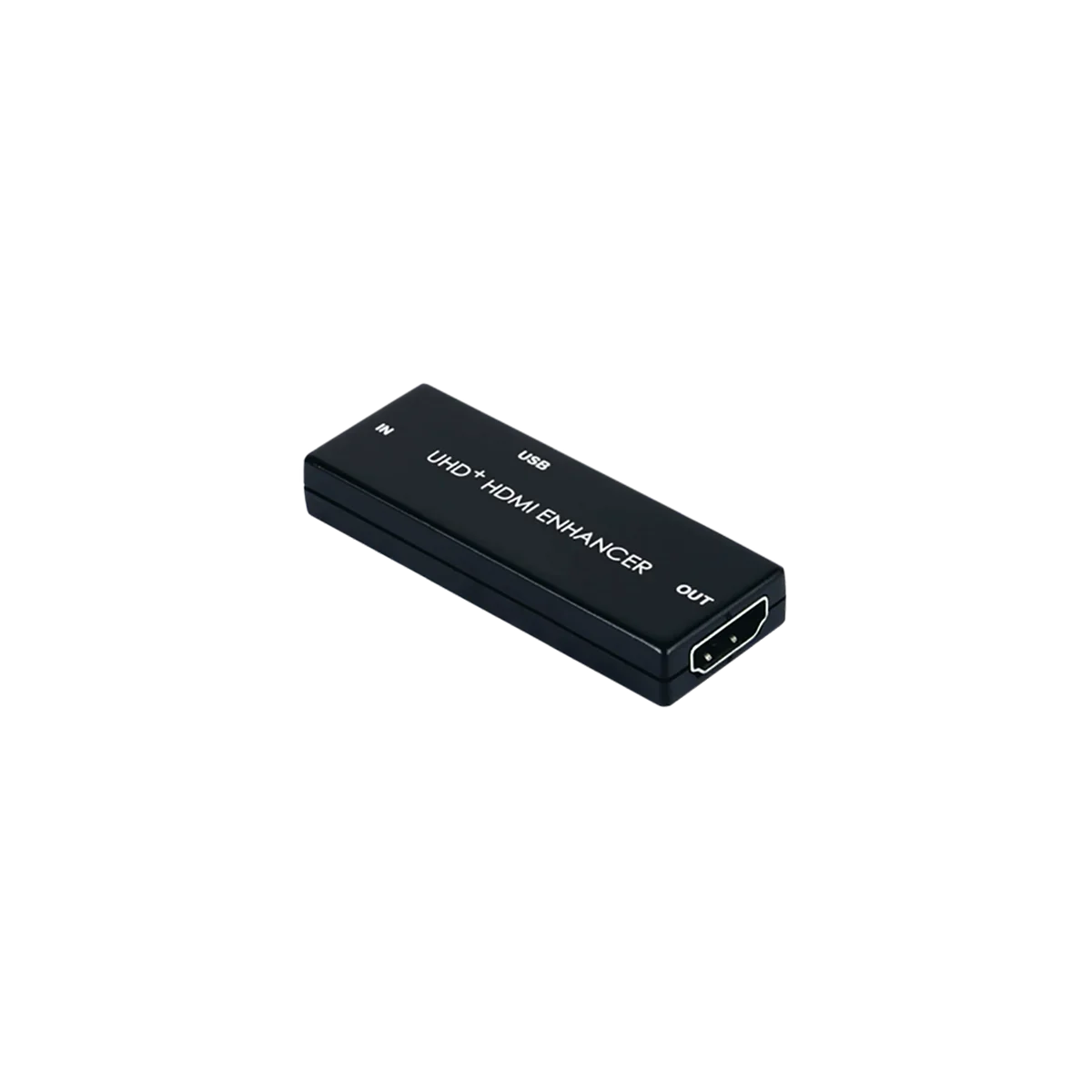

CPLUS-VHH

Retiming capability allows for clean regenerated signals for transmission., Supports USB 5V injector functions, Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports CEC/ARC bypass, Cascading HDMI signal up to 7 layers with 9m Premium Cable (63 meters), Compact design, Note:1. For devices that do not support power over cable and USB Power Injector can be used to the HDMI Enhancer.2. HDMI cable tested with 28AWG, different source and different cable may cause in different result on cable distance and cascading layers.

Hersteller-Nr.	CPLUS-VHH
Hersteller	Cypress Technology

This 4K UHD HDMI to HDMI Enhancer with 5V Power Injection is an advanced solution for HDMI signal extension and cascading. This unit is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission over long distances using multiple HDMI cables without the need for external power. 4K signals may be extended over distances up to 5M per cable segment with support for cascading up to 4 times. This unit is powered by the 5V that accompanies standard HDMI signals, however in situations where additional 5V power is required (such as when cascading) it can be added with the simple connection of an external USB power source. This repeater complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12- bit sources with HDR are fully supported. Up to 8 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats are supported as well. All functionality is automatic, requiring no external controls.

HDMI Bandwidth	18Gbps
Input Ports	1×HDMI (Type-A)
Output Ports	1×HDMI (Type-A)
Voltage Injection Port	1×USB 2.0 (Micro-B)
ESD Protection (HBM)	±8kV (Air Discharge)
	±4kV (Contact Discharge)
Dimensions (W×H×D)	65mm×10mm×24mm [All Inclusive]
Weight	15g
Chassis Material	Plastic
Chassis Color	Black
Operating Temperature	0˚C – 40˚C/32˚F – 104˚F
Storage Temperature	-20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity	20 – 90% RH (Non-condensing)
Power Consumption	0.75W

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
