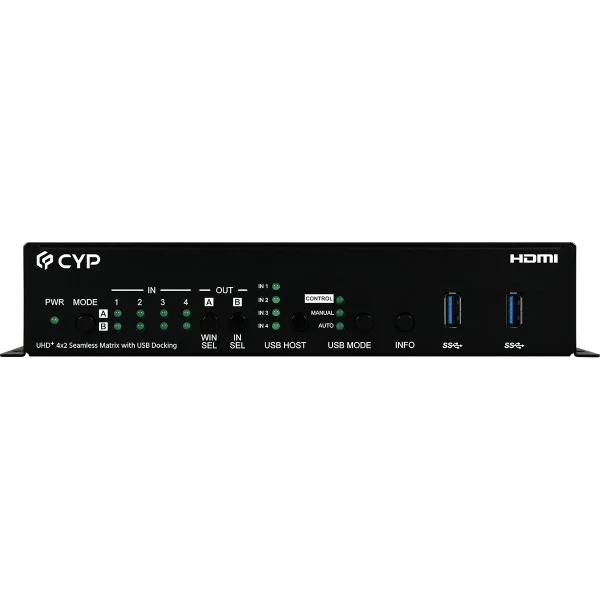

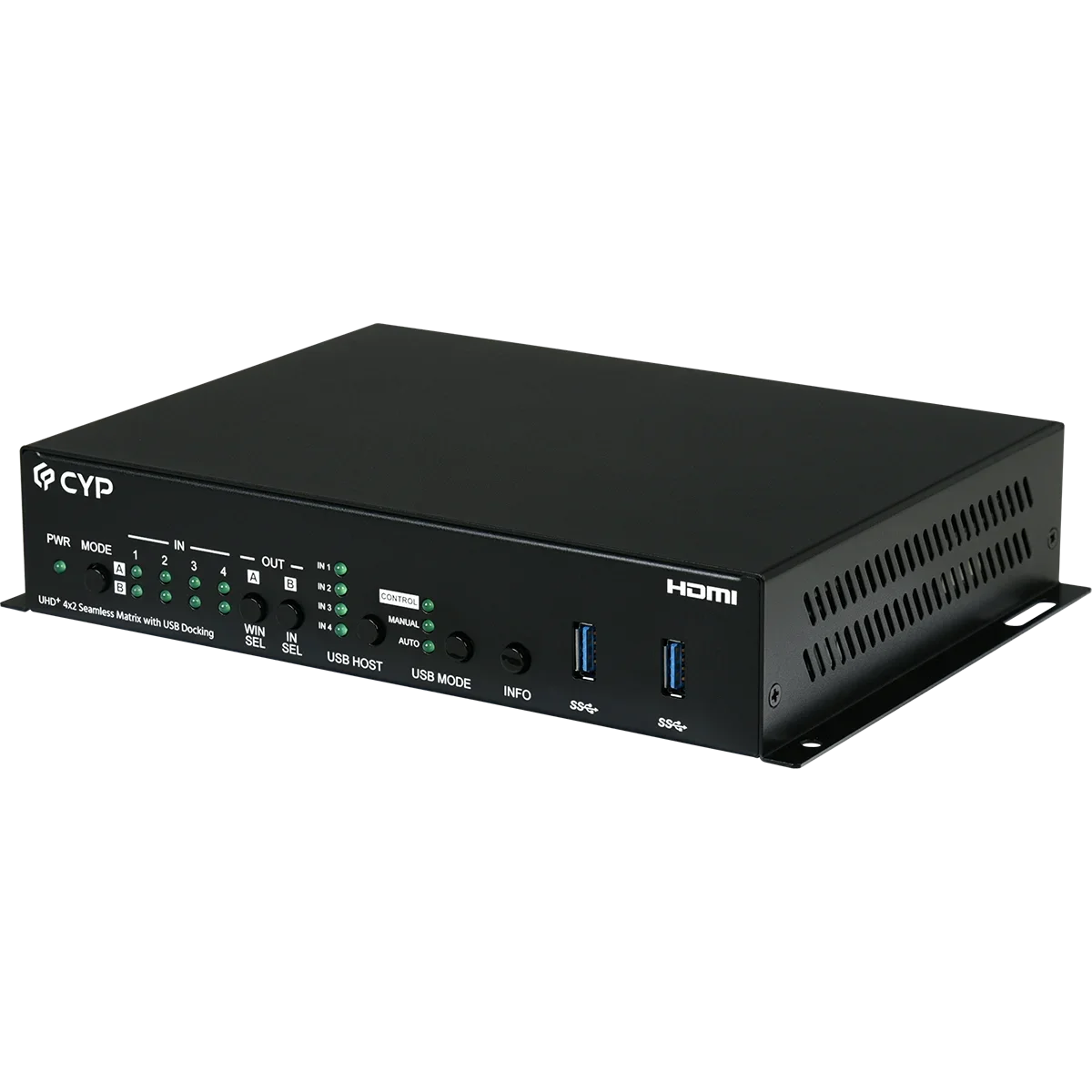

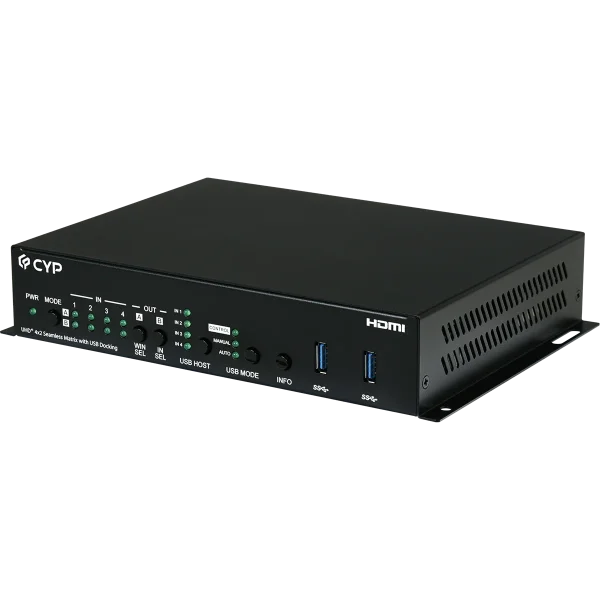

CPLUS-V4H2HUSB
2 HDMI inputs, 2 USB(Type-C) inputs and 2 HDMI outputs up to 4K@60 4:4:4, Controllable via front panel buttons, Telnet, RS-232, and OSD via USB mouse, 2 USB Type-C Inputs support USB3.1 Gen1 to Ethernet and DP video., Two USB Type-C ports respectively provide 45W and 30W of power to each connected device, Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection or auto audio switch by following USB control function., Seamless switching (no loss of sync to display) when switching sources in both matrix and multi-view modes., Supports easy adjustment of window size, position and settings in the PiP windowing mode via mouse., Supports the ability to store a multi-window arrangement as a preset that can be recalled later, Selected window will have a border to highlight the window that is being operated., DVI 1.0 compatible with the use of an HDMI-DVI adaptor, HDCP 1.x and 2.2 compliant
| Hersteller-Nr. | CPLUS-V4H2HUSB |
| Hersteller | Cypress Technology |

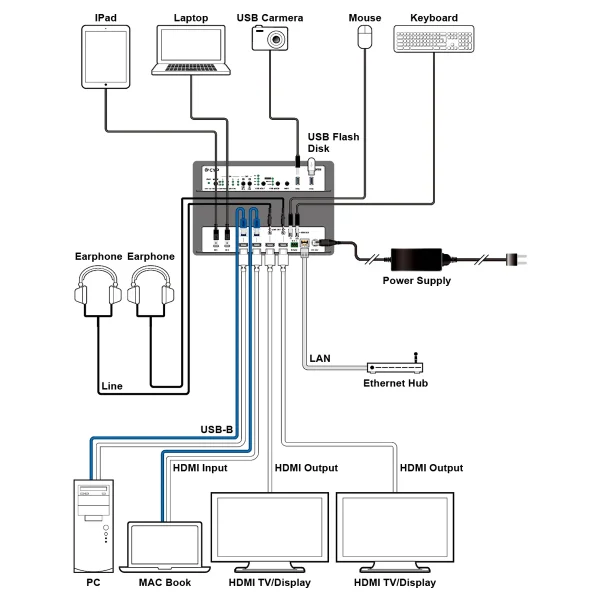

This 4K@60 4 by 2 Matrix is a high performance HDMI/USB-C matrix switcher with integrated scaling, multi-window mode, and USB with mouse control interface. With the seamless switch feature, it is an ideal solution for monitoring or displaying multiple sources simultaneously for control rooms, conference rooms or classrooms. Any of 4 different sources including HDMI and USB-C may be displayed individually, full screen, or multi-window mode including quad mode, PiP, and PoP with the output being sent to 2 HDMI outputs. Management of input/window routing, position and sizing can be controlled easily by use with a USB mouse. Video resolution is up to 4K@60Hz and LPCM audio 2 channel at 48kHz are supported on both input and output ports. This unit is fully compatible with the HDCP 1.x and 2.2 standards.
|

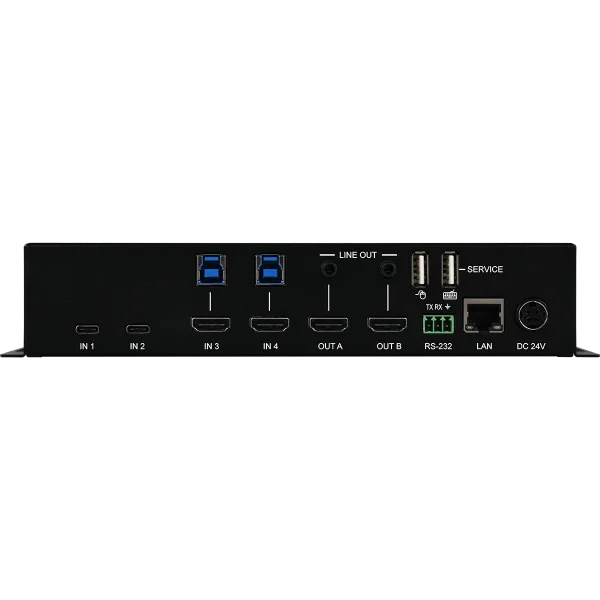

Interfaces |
|
|---|---|
|
Input Port |
2 HDMI(Type-A) 2 USB(Type-C) |
|
Output Port |
2 HDMI(Type-A) 2 Stereo Audio (3.5mm) |
|
Control I/O |
1 RS-232 (3-pin Terminal Block) |
|
Pass-through Port |
2 USB(Type-B) 2 USB (Type-A) 2 USB(Type-A) 1 LAN (RJ-45) |
|
Service Port |
1 USB (Type-A) *Combined with USB of Keyboard |
|
USB |
|
|---|---|
|
Input Port |
|
|
Type |
Type-C |
|
Generation |
USB3.2 Gen1 |
|
Transfer Rate |
5Gbps |
|
Pass-through Port |
|
|
Type |
Type-A |
|
Generation |
2 USB3.2 Gen1 2 USB2.0 |
|
Transfer Rate |
5Gbps (USB3.2 Gen1) 480Mbps (USB2.0) |
|
Type |
Type-B |
|
Generation |
2 USB3.2 Gen1 |
|
Transfer Rate |
5Gbps |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
2.0 (DVI 1.0) |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Types |
4K@60 8bit YUV/RGB 4:4:4 |
|
|
Output Signal Types |
4K@60 8bit YUV/RGB 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 2560×1600p@60RB |
|
Maximum Output |
HDMI |
4096×2160p@60 |
|
Audio |
|
|---|---|
|
HDMI |
LPCM (2 channel, 48kHz) Dolby Digital pass-through DTS 5.1 channel pass-through |
|
Power |
|
|---|---|
|
Power Supply |
24V/7.5A |
|
Power Consumption |
140W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
213.5mm×44mm×158mm [Case Only] 231.5mm×49mm×163mm [All Inclusive] |
|
Weight |
1270g |
|
Field Firmware Update |
|---|
|
USB Flash Drive |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|---|---|
|
CPLUS-V4H2HUSB |
4K@60 4x2 Seamless Matrix with USB Docking |
