CPLUS-V4H2HP-DTDA

Enabled HDMI de-embedded/embedded designed to bridge 2-channel PCM HDMI audio to/from a Dante® audio network. , Balance Audio out can be switch between HDMI De-embedded audio or Dante-In source , Dante® audio networking utilizes standard IP networks to transmit high-quality, uncompressed audio with near-zero latencay , Supports PCM 2Ch, Dolby Digital, Dolby Digital Plus, DTS, DTS-HD, DTS-HD MA formats/Decode (Downmix to 2 Ch) , Non-compress audio performance , Sample-accurate time alignment between networked devices , Real-time latency statistics, Clock status statistics and signal presence exposed to network

Hersteller-Nr.	CPLUS-V4H2HP-DTDA
Hersteller	Cypress Technology

Dante® (digital audio network through Ethernet) is a powerful technology that allows many audio channels to be sent and received through Ethernet. CPLUSV4H2HP-DTDA integrates Dante® technology, 4×2 MATRIX and DSP audio processor allows the user to route four 18Gbps HDMI input signals to any of two 18Gbps HDMI and Dante® digital audio outputs. Dante digital audio output enables audio transport of up to two stereo audio signals over a network using standard Internet protocols. It also supports AES67 and Audinate Dante® Controller. Ethernet is used for remote control while a front panel with buttons optimized for use in challenging environments, allows full local control of all features. The DSP processing technology are with new adaptive feedback and noise cancellation functions. The integration of Dante® audio out facilitates system expansion when paired with many of Cypress’s Dante-enabled audio processing products.

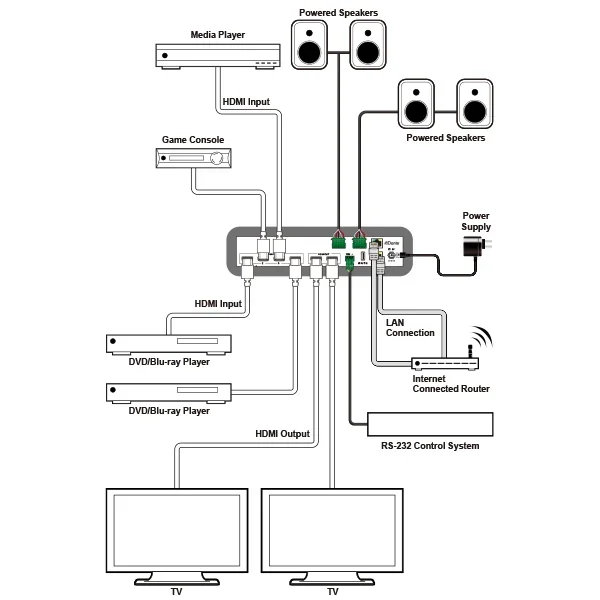

Interfaces

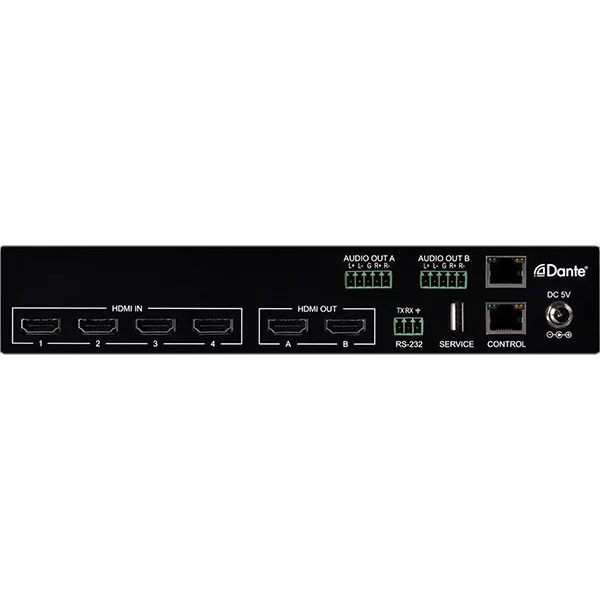

Input Port	4 HDMI (Type-A)
Output Port	2 HDMI (Type-A) 2 Stereo Analog Out (5-pin Terminal Block)
Control I/O	1 RS-232 (3-pin Terminal Block) 1 LAN (RJ-45)
Service Port	1 USB 2.0 (Type-A)
Ethernet Port	1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160@60 8bit YUV 4:4:4
Output Signal Type	4096x2160@60 8bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Analog Out	DAC	Max Audio Level: 4.2Vrms Impedance: 5kOhm Type: Balanced S/N Ratio: > 70dB (1kHz with 0dBFS)

Power
Power Supply	5V/2.6A
Power Consumption	10.45W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	240mm× 43mm× 104mm [Case Only] 240mm× 48mm× 112mm [All Inclusive]
Weight	826 g

Ordering Information
Model No.	Product Description

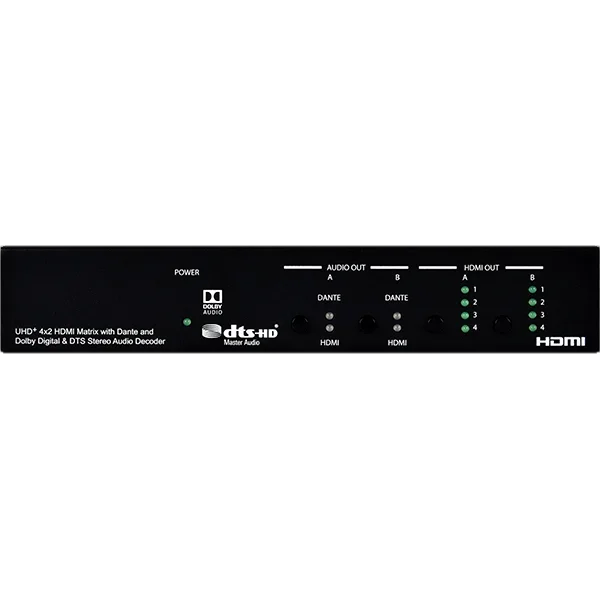

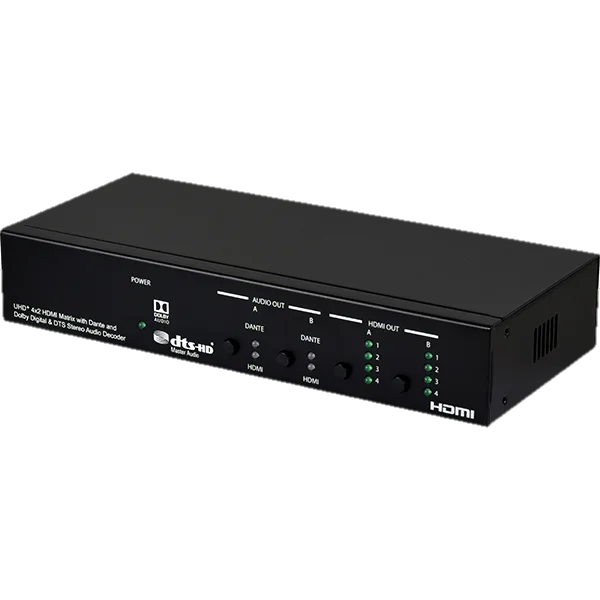

CPLUS-V4H2HP-DTDA	UHD+ 4x2 HDMI Matrix with Dante and Dolby Digital & DTS Stereo Audio Decoder
AIP-D4101	4 Balance In, Analog Audio to Dante
AIP-D1401	4 Balance Out, Dante to Analog Audio
