Cypress Technology

CPLUS-V1616

Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signals , 8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 17×17 , 1 system control card slot (with support for 1 high-bandwidth input port and 1 high-bandwidth output port) , System Control Card’s HDMI ports support UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) , System Control Card’s HDMI ports support 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color , System Control Card’s HDMI ports support 12-bit Deep Color up to 1080p@60Hz , System Control Card’s HDMI ports support pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , Advanced EDID Management for rapid integration of sources and displays , Field updatable firmware , 3U rack mounted design , 2 hot-swappable, load sharing, redundant power supplies , Integrated component failure alarm system , Control via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), and RS-232 , 4-port HDMI input and 4-port HDMI output cards are available now , 4-port HDBaseT (with and without AVLC) input and output cards are under development

Hersteller-Nr.	CPLUS-V1616
Hersteller	Cypress Technology

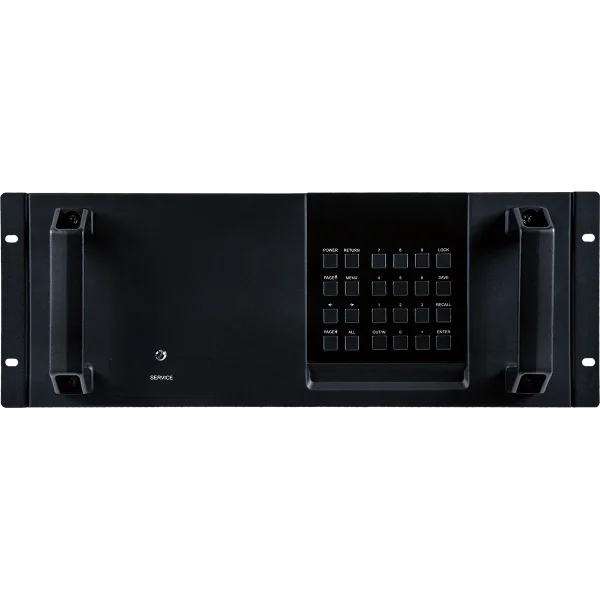

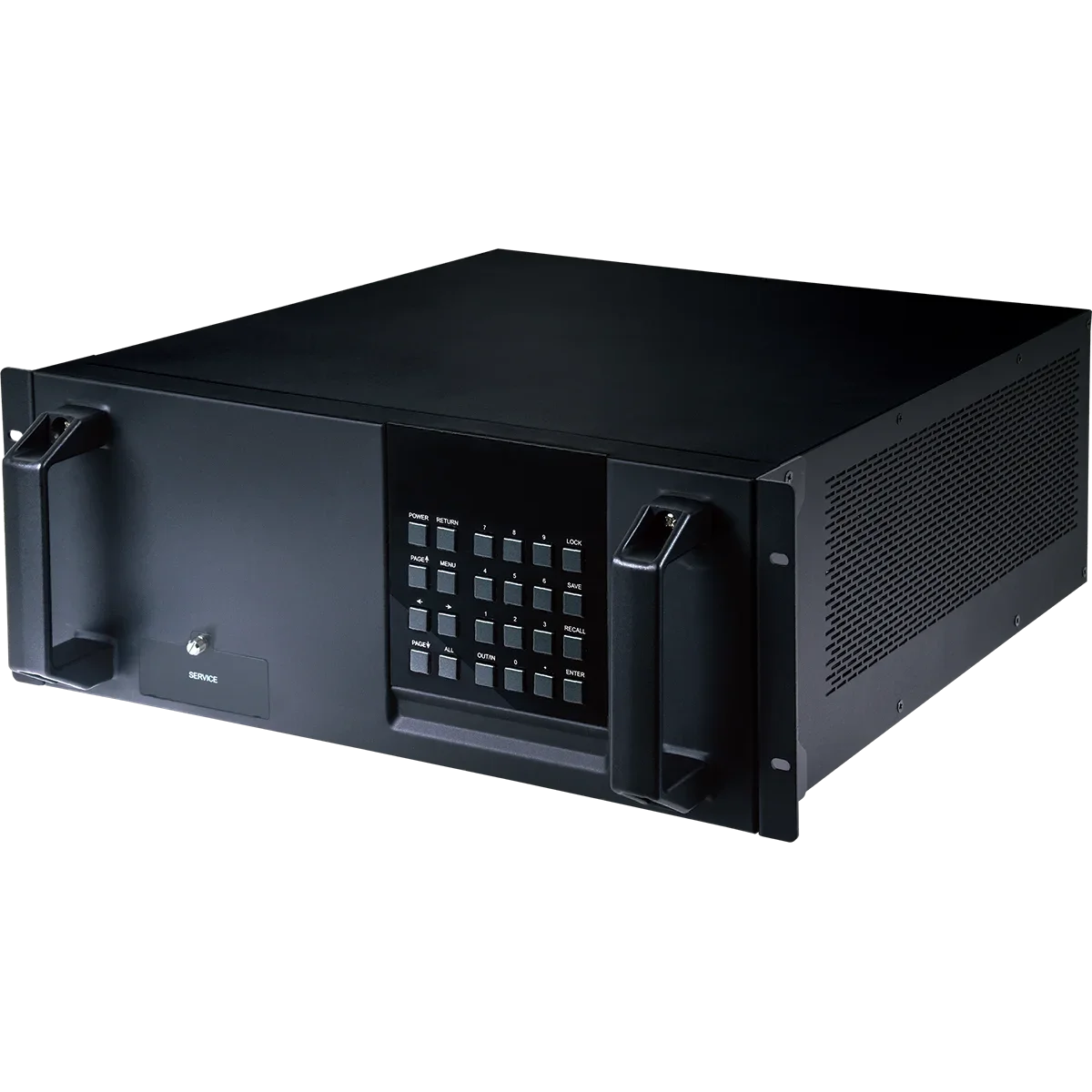

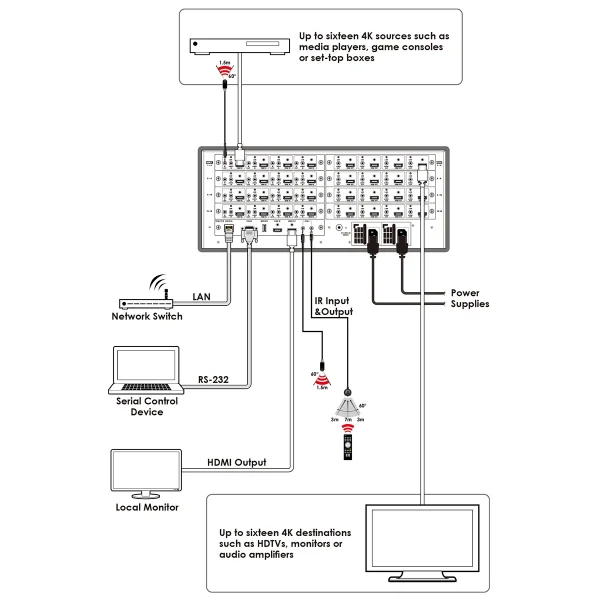

This is a 16×16 Modular Matrix Chassis with four high-bandwidth input card slots, four high-bandwidth output card slots, and a system control card slot. A variety of I/O cards are available, and each standard card, input or output, is equipped with multiple audio/video ports and is capable of handling up to four independent 18Gbps video signals simultaneously. An additional, full bandwidth, HDMI input and output are provided on the included control card which are ideal for connection to a test signal generator and local confidence monitor. The backplane cross-point can handle a maximum standard I/O configuration of 17×17 (including the CPU Control Card’s ports). 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR are fully supported. All ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats. I/O cards using the HDMI interface (HDMI 2.0, HDCP 2.2) are available now and I/O cards supporting 4-port HDBaseT (with and without AVLC) input and output cards are available.as well as cards supporting other signal formats and features are under development. The chassis is powered by a pair of high-quality, hot-swappable, load sharing power supplies with an integrated failure alarm system ensuring that mission critical installations can stay online 24/7. Control is via front panel buttons with an LCD menu, WebGUI, Telnet or RS-232

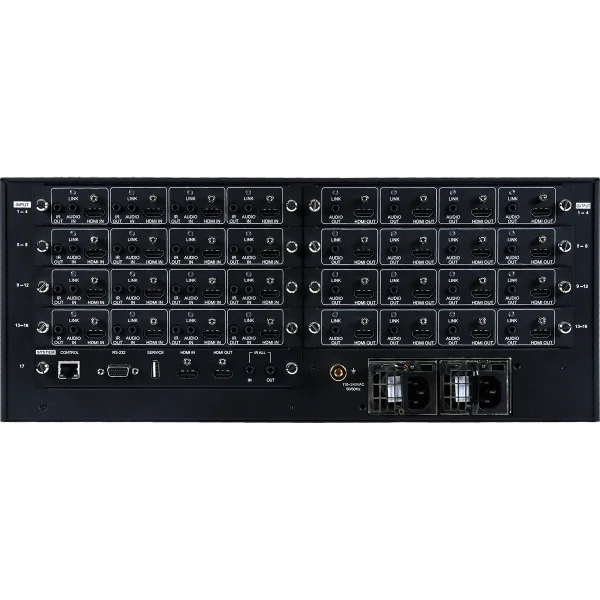

Interfaces
Input Port	4 Input Card Slots 1 HDMI
Output Port	4 Output Card Slots 1 HDMI
Pass-through Port	1 IR Blaster (3.5mm) 1 IR Extender (3.5mm)
Control I/O	1 RS-232 (DE-9) 1 Ethernet (RJ-45)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	2.0
HDCP Compliance	2.X
Input Signal Types	3840x2160p@60 8-bit YUV 4:4:4, HDR10
Output Signal Type	3840x2160p@60 8-bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	HDMI	3840×2160p@60
Maximum Output	HDMI	3840×2160p@60

Audio
	HDMI	LPCM (8 Channels), Bitstream, HD Bitstream

Power
Power Supply	12V/41A, 5V/3A
Power Consumption	150W (Full load), 25W (Standby)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	440mm×177mm×429mm [Case Only] 484mm×182mm×482mm [All Inclusive]
Weight	19kg
Rackmount Size	3U

Field Firmware Update
Interface	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
CPLUS-V1616	16×16 Modular Matrix Chassis with System Control Card
CIN-V4HP	4-Port HDMI Input Card
COUT-V4HP	4-Port HDMI Output Card
CIN-4C	4-Port HDBT Input Card
COUT-4C	4-Port HDBT Output Card
CIN-V4CV	4-Port HDBT with AVLC Input Card
COUT-V4CV	4-Port HDBT with AVLC Output Card

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
