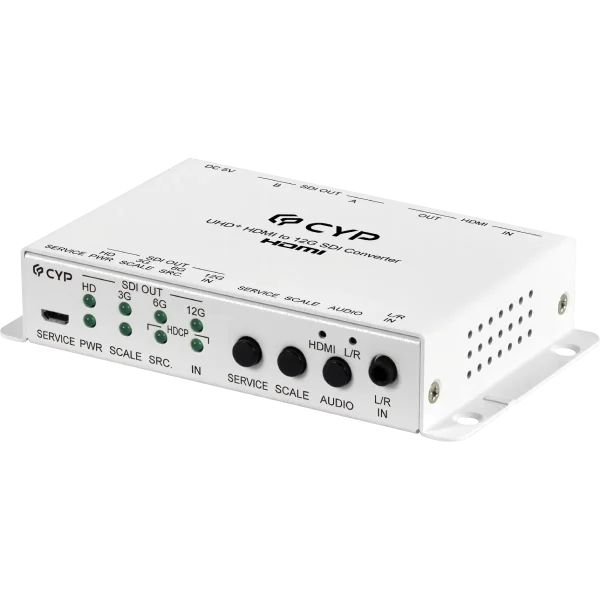

CPLUS-H2SDI-W
Supports SDI output distance up to 60 meters (12G-SDI), 80 meters (6G-SDI) 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SDSDI) Note: Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications., This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted., Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio, Support SDI signal re-timing Cable Driver
| Hersteller-Nr. | CPLUS-H2SDI-W |
| Hersteller | Cypress Technology |

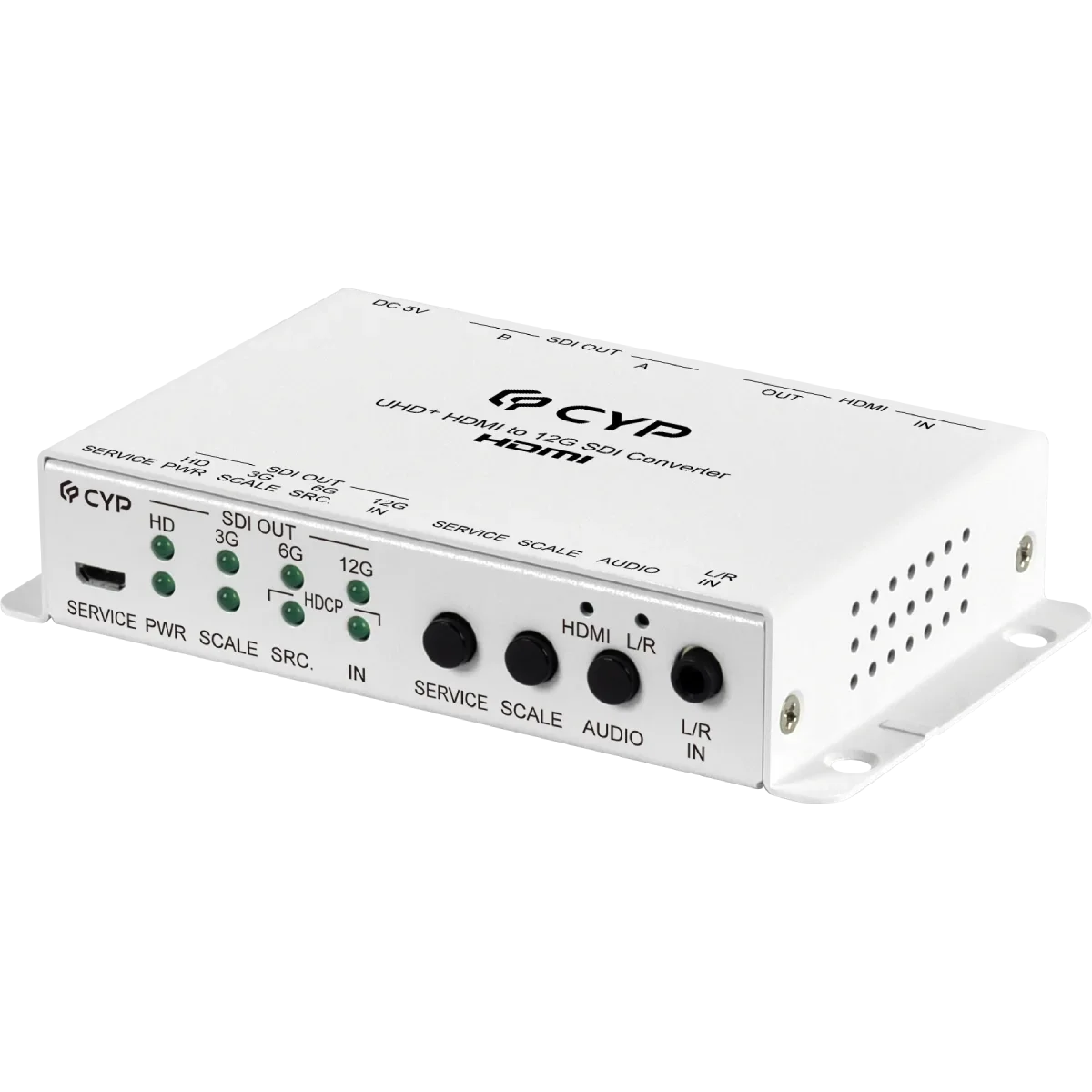

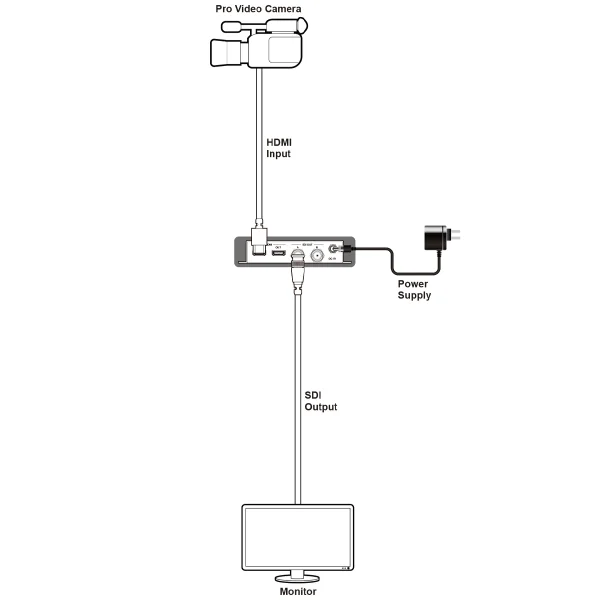

The HDMI to SDI Converter allows HDMI signals to be shown on two SDI
displays while ensuring high bit rates of 12 Gbit/s to give you high resolution
signal without any loss. For professionals this means that it is now easier
to convert your high def HDMI signal with audio to SDI for long distance
transmission and display your work on two SDI displays. Also, a 2 CH L/R audio
input allows DVI signal with 2CH audio to be converted to SDI in order to be
shown on SDI displays. Furthermore, the device has a built-in default EDID
and a recordable EDID that guarantee image display compatibility with source
equipment.
|

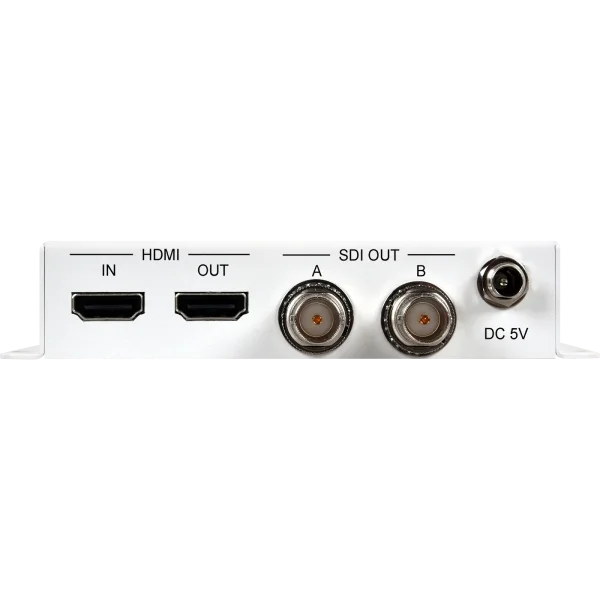

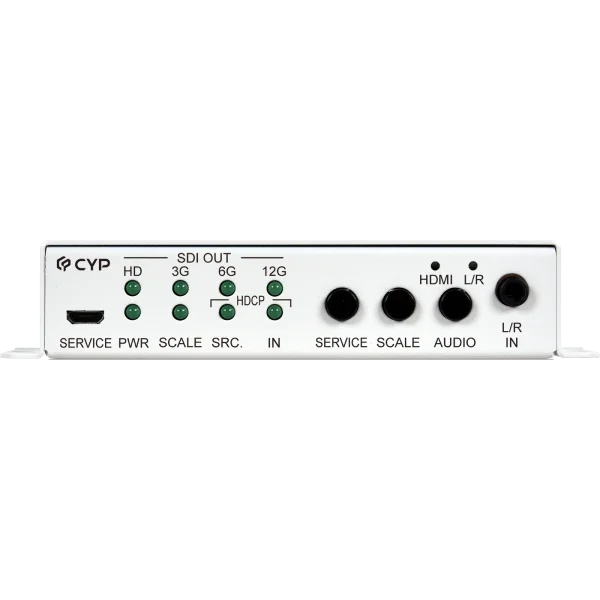

Interfaces |
|
|---|---|
|
Input Port |
1 HDMI (Type-A) 1 Unbalanced Stereo (3.5mm) |
|
Output Port |
2 12G-SDI(BNC) 1 HDMI(Type-A) |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
Not Supported |
|
|
Input Signal Type |
4K@60 8bit YUV 4:2:2 |
|
|
Output Signal Type |
4K@60 8bit YUV 4:2:2 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 (YUV 4:2:2) |
|
Maximum Output |
HDMI SDI |
4096×2160p@60 (YUV 4:2:2) 4096×2160p@60 (YUV 4:2:2) |
|
Audio |
|
|---|---|
|
Input Signal Types |
HDMI, Unbalanced Stereo |
|
Output Signal Types |
SDI |
|
Digital Formats |
HDMI 2CH LPCM, 8CH LPCM |
|
Power |
|
|---|---|
|
Power Supply |
5V/2.6A DC (Locking) |
|
Power Consumption |
6.138W (Full Load) |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
White |
|
Dimensions (W×H×D) |
128mm×25mm×75mm [Case Only] |
|
Weight |
347g |
|
Field Firmware Update |
|
|---|---|
|
USB |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|---|---|
|
CPLUS-H2SDI |
HDMI to 12G-SDI Converter |
|
CPLUS-SDI2H |
12G-SDI to HDMI Converter |
|
CPLUS-H2SDI-W |
HDMI to 12G-SDI Converter |
|
CPLUS-SDI2H-W |
12G-SDI to HDMI Converter |
Keine Maßangaben verfügbar.
