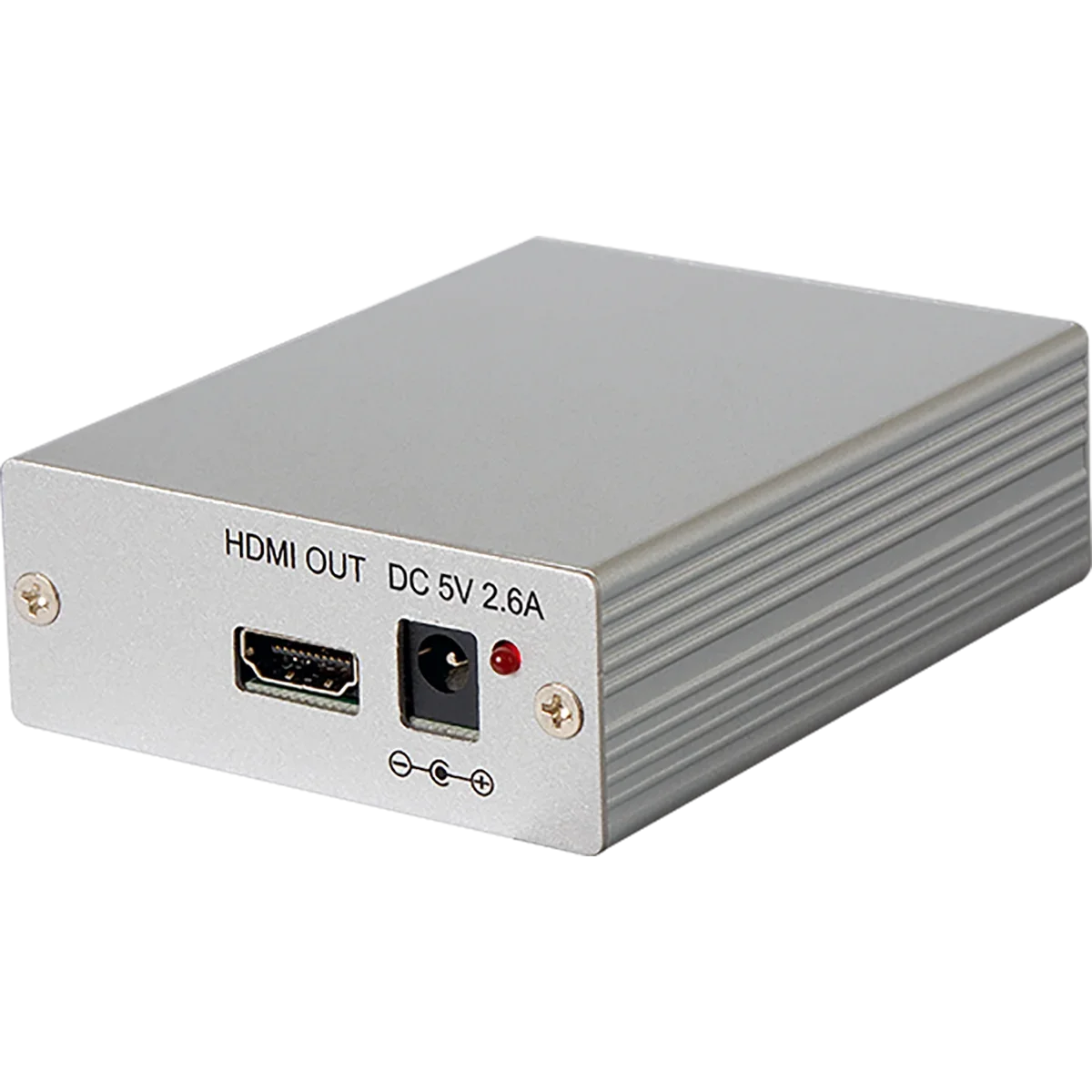

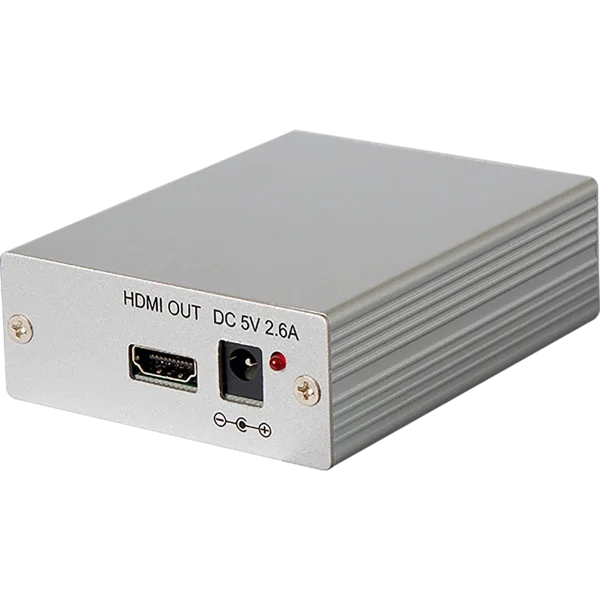

CP-280H

It enables you to connect Set-Top-Boxes or DVDs with YPbPr/YCbCr and Toslink output to HDMI input of HD ready plasma, LCD or DLP TV., The input format is YCbCr/YPbPr and digital Toslink audio, HDMI 1.2 compliant., Supports up to 1920 x 1080p @ 60 Hz.

Hersteller-Nr.	CP-280H
Hersteller	Cypress Technology

The component with digital audio to HDMI format converter converts analog YCbCr/YPbPr and audio to digital HDMI format. It allows you to connect the YCbCr/YPbPr output from DVD or Set-Top-Box equipment to the digital HDMI input of the latest HD ready plasma, LCD or DLP TV. Its high bandwidth capability supports HDTV resolution up to 1080p.

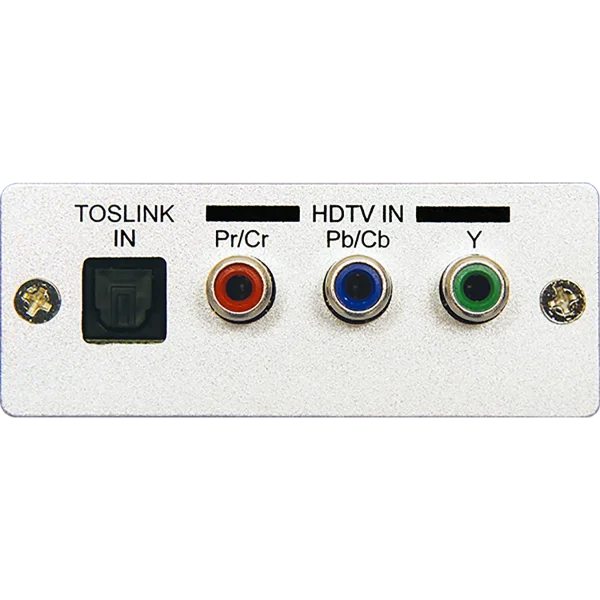

Inputs	3x RCA [1x YCbCr Component / YPbPr Component] 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]

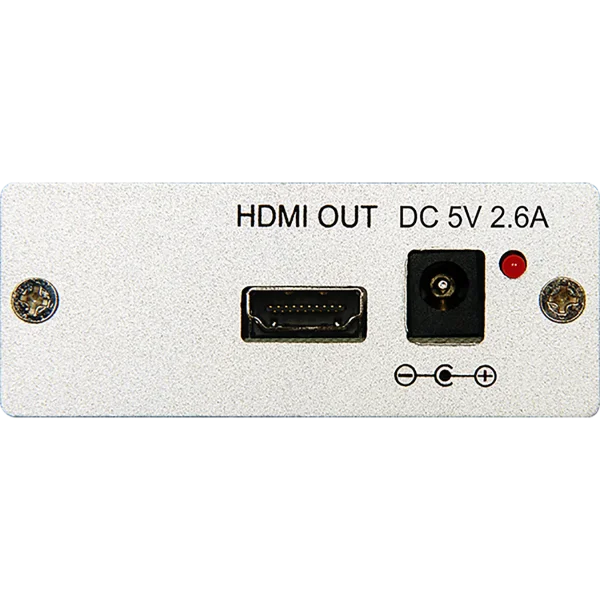

Outputs	1x HDMI [1x Uncompressed AV and Data]
PSU:	5V/1A
Dimensions	76mm [W] x 105mm [D] x 30mm [H]
Net Weight	500g

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
