CMF-100

Simultaneous transmission of uncompressed video, audio and data over a single 60m Cat.5e/6/7cable at 1080p and 35m at 4K , The Transmitter is powered via 48V PoH (PD) from the HDBaseT Receiver (PSE) HDBaseT feature support: HD Video and Audio, 48V PoH, one direction USB pass-through and control (bi-direction IR pass-through), Controllable via front panel, WebGUI, Telnet, Key Pad, and RS-232, [Keypad: CDPS-TG2]Supports firmware update via USB, Support 8 keypad triggered command, [Transmitter: CH-2607TXPL]USB supports firmware update via USB device, Wall plate is designed for EU three-gang sized enclosures, Support bidirectional IR pass-through, Analog stereo audio may be embedded with VGA or HDMI source, Automatic scaling of sources to match the native resolution of the HDMI display based on EDID (up to 4K@30Hz), [Receiver: CH-2607RXPL]USB pass-through to Receiver, Supports IR Input & Output bypass feature, Supports 4 Relay outputs control, Basic signal event automation via RS-232, CEC, IR, Supports firmware update via USB, Analog audio de-embedding 2x20 watt 4 Ohm stereo amplifier

Hersteller-Nr.	CMF-100
Hersteller	Cypress Technology

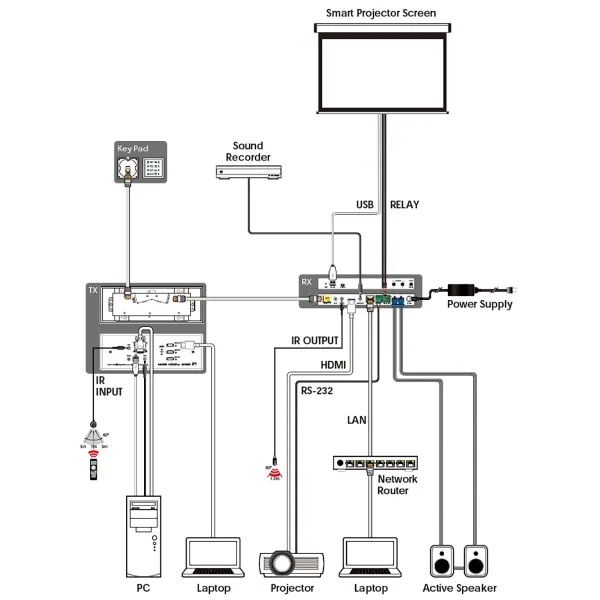

For aesthetic considerations, we specially designed wall plate extender. CMF-100 includes this kind of extender which contains scaler and control functions. It is a multi-functions AV solution designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of CH-2607TXPL Scaler Wall Plate HDBaseT Transmitter, CH-2607RXPL HDBaseT Receiver and CDPS-TG2 keypad control. The Transmitter can send high-definition uncompressed audio/video over a single cable up to a distance of 60 meters at 1080p, and 35 meters at 4K. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). 4K UHD HDMI video sources, up to and including 4K@50/60Hz (4:4:4, 8-bit), are supported by converting the signal to 4K@30Hz when necessary. This system may be powered by 48V PoH from the Receiver, which allows for greater flexibility in installations. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. An input button on the face of the unit provides quick, single button press, manual input selection. Other functionality is controllable via front panel controls, WebGUI, Telnet, and RS-232. Additionally, the receiver features an analog audio de-embedding 2x20 watt 4 Ohm stereo amplifier.

PANELS

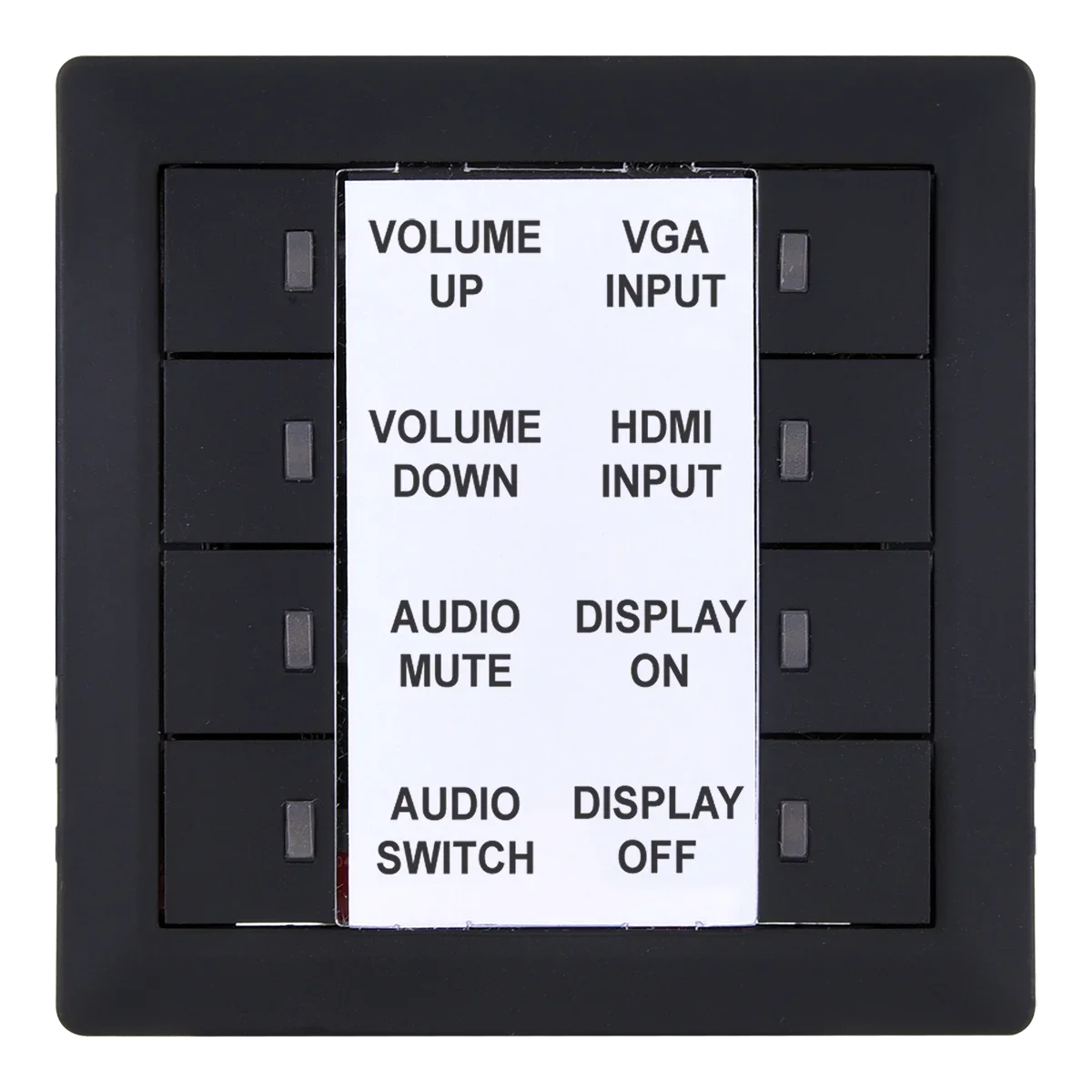

CDPS-TG2

Front View

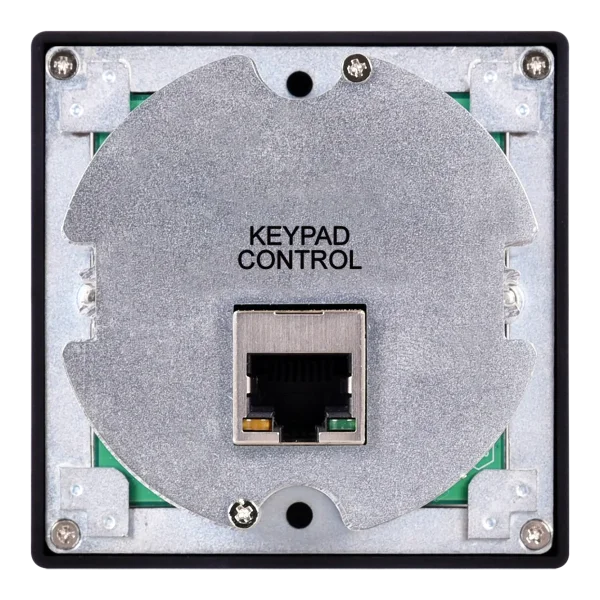

Rear View

PANELS

CH-2607TXPL

Front View

Rear View

PANELS

CH-2607RXPL

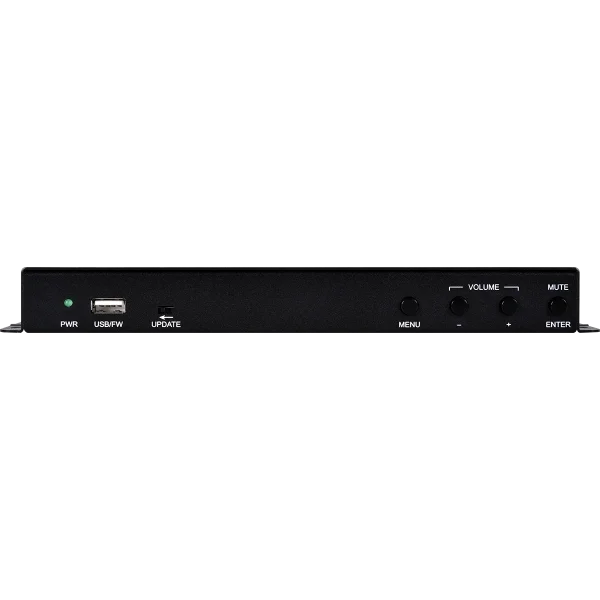

Front View

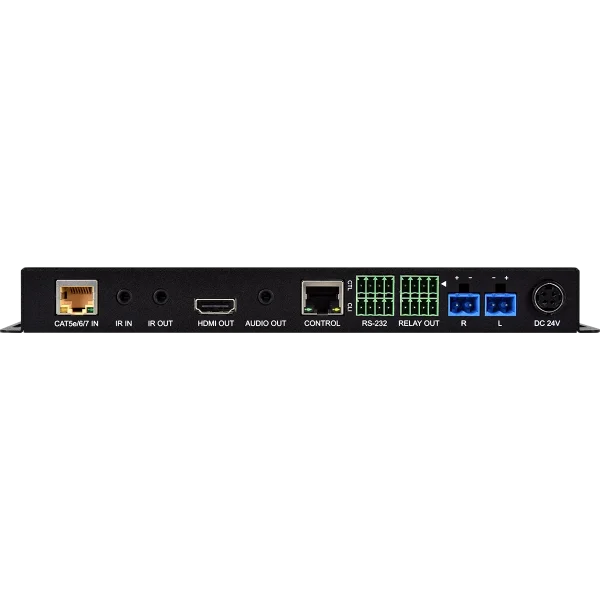

Rear View

CDPS-TG2

Interfaces
Control Port	8 x Buttons 1 x RS-232 (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:4:0

Resolutions
Maximum Input	HDBaseT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Enclosure
Chassis Material	Faceplate: Plastic Casing: Metal
Chassis Color	Black
Dimensions (W×H×D)	70mm× 70mm× 33mm
Weight	115g

CH-2607TXPL

Interfaces
Input Ports	1 x HDMI (Type-A) 1 x VGA (HD-15) 1 x Unbalanced Stereo (3.5mm)
Output Ports	1 x HDBaseT (RJ45)
Control Port	1 x USB (Type-B) 1 x IR Extender (3.5mm) 1 x IR Blaster (3.5mm) 1 x RS-232 (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	HDMI	4K@60 8-bit YUV 4:4:4
	VGA	1920x1080p@60Hz
Output Signal Type	HDBaseT	4K@60 8-bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200p@60RB
Maximum Output	HDBaseT	4096×2160p@30

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	225mm × 81mm × 42mm
Weight	350g

CH-2607RXPL

Interfaces
Input Port	1 x HDBaseT (RJ-45)
Output Port	1 x HDMI (Type-A) 1 x Stereo Audio (3.5mm) 1 x Stereo Audio (2 x 2-pin Terminal Block)
Pass-through Port	1 x USB (Type-B) 1 x IR Extender (3.5mm) 1 x IR Blaster (3.5mm) 1 x RS-232 (RJ-45)
Control Port	1 x LAN (RJ-45) 1 x RS-232 port (4-pin Terminal Block)
Service Port	1 x USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0
HDCP Compliance	2.2
Input Signal Types	HDBaseT	4096×2160p@30
Output Signal Type	HDMI	4096×2160p@30

Resolutions
Maximum Input	HDBaseT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@30

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	232mm× 108mm× 25mm
Weight	700g

Power
Power Supply	24V/3.75A
Power Consumption	TBD

Ordering Information
Model No.	Product Description
CDPS-TG2	8 Key Control Keypad
CH-2609TXPL	UHD+ 2x1 HDMI & VGA to HDBaseT Wallplate with Scaler
CH-2607RXPL	UHD+ HDBaseT Receiver with Amplifier

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
