CLUX-SDI2HCA

Shows SDI source on HDMI display, Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals, Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mb/s:- 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s- HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s- SD-SDI supports SMPTE 259M-C@270Mbit/s, Converts SDI format to HDMI:- 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz- HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz- SD-SDI (SMPTE 259M-C) to 480i/576i, Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Hersteller-Nr.	CLUX-SDI2HCA
Hersteller	Cypress Technology

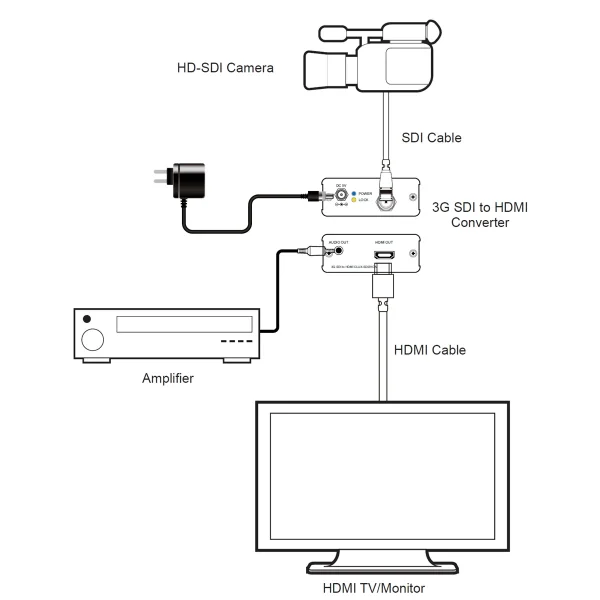

This unit allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers.

Video Bandwidth	225 MHz/6.75 Gbps

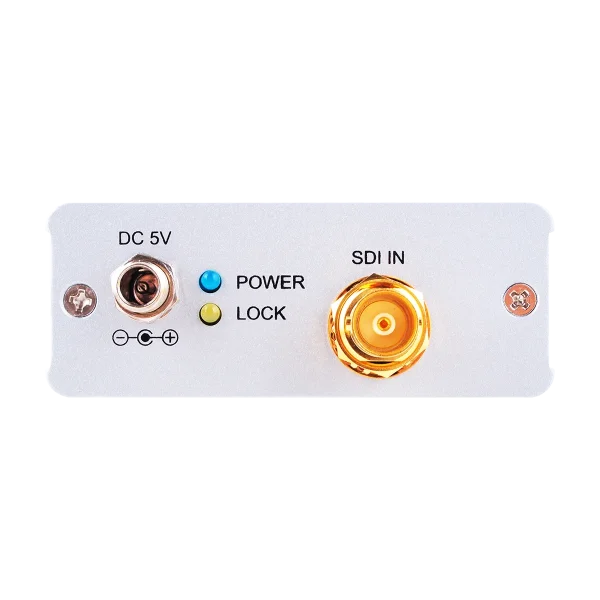

Input	1×BNC (SD/HD/3G-SDI)

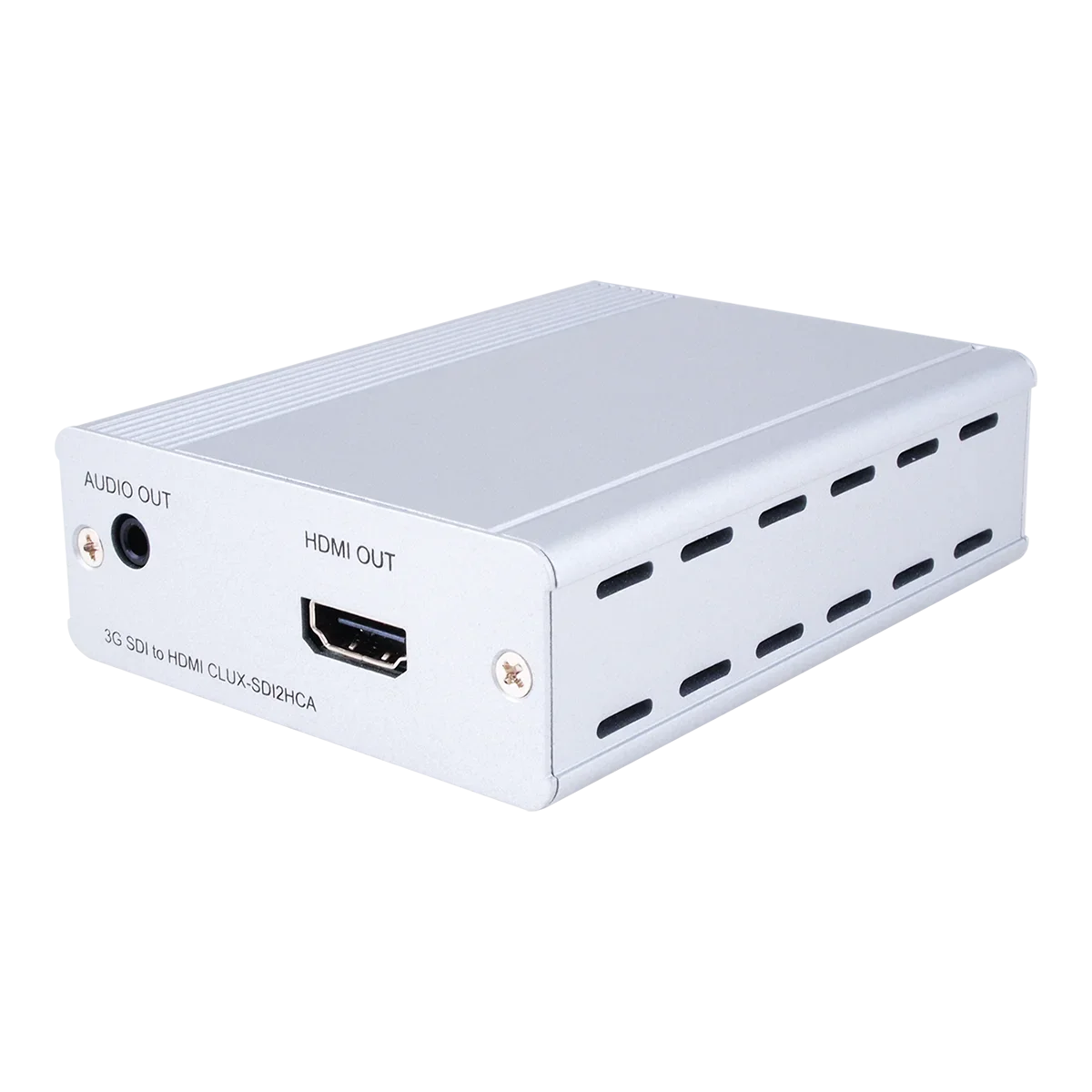

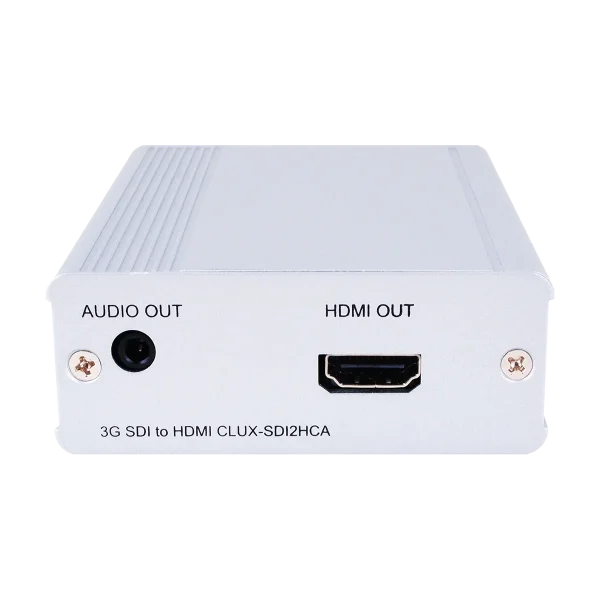

Output	1×HDMI, 1×3.5 mm Phone Jack
SDI Timing Support	SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s
HDMI Timing Support	480i/576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60
Audio Output Support	HDMI: PCM 2/5.1/7.1 CH 3.5 mm Analog: 2 CH
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge)
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
SDI Cable Distance	3G/HD/SD-SDI up to 100/200/300 meters with BELDEN 1694A cable
Dimensions	78.5 mm (W)×124 mm (D)×30 mm (H)
Weight	202 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−0 ºC~60 ºC/− ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	3.4 W
