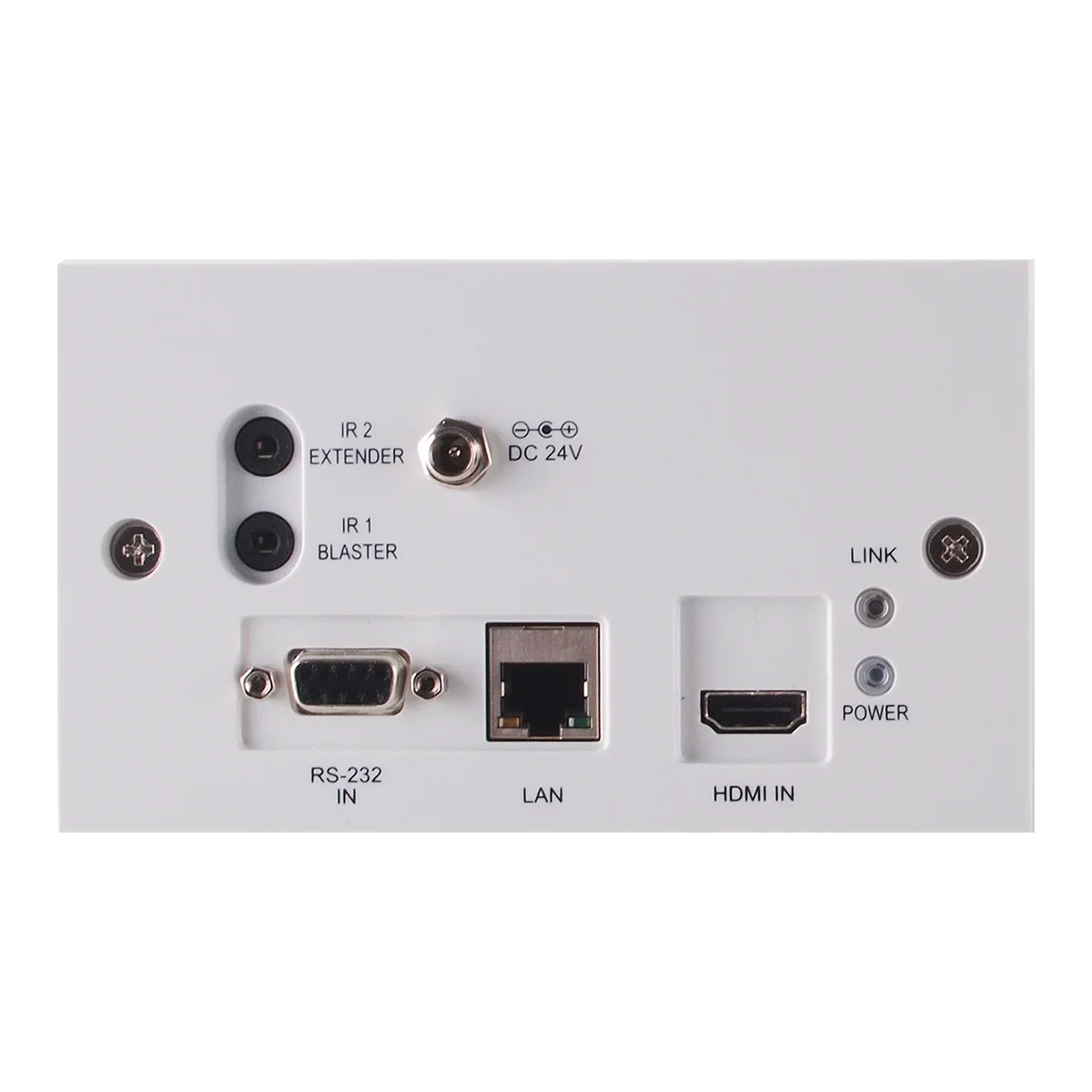

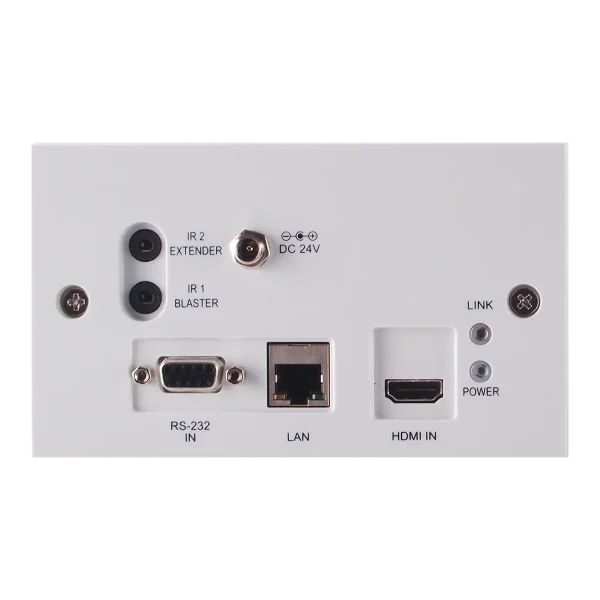

CH-507TXWPBD

HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant, Supports HDCP repeater and CEC bypass functions, Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft, HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through, Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz), Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio, Wall-plate design and installation friendly

Hersteller-Nr.	CH-507TXWPBD
Hersteller	Cypress Technology

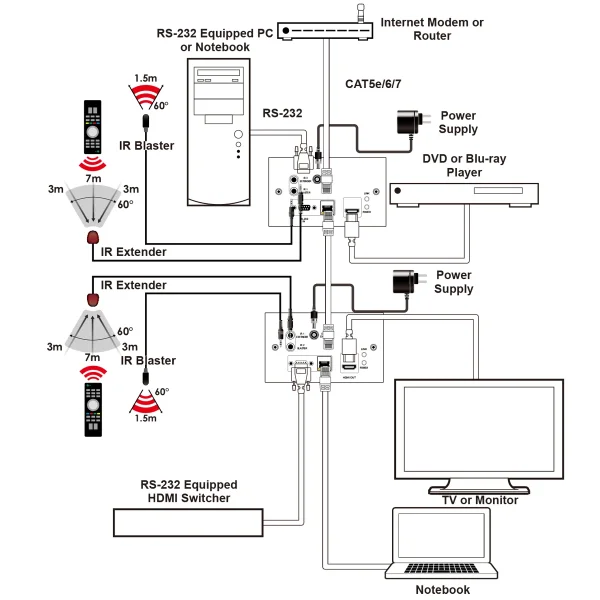

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×HDMI, 1×IR Extender, 1×LAN, 1×RS-232
Output Ports	1×CAT5e/6/7, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	up to 115200/sec
Power Supply	24V DC / 1.25A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Dimensions (mm)	145.7(W) x 85.7(D) x 36.5(H)/Jacks Excluded 145.7(W) x 85.7(D) x 39.5(H)/Jacks Included
Weight (g)	156
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C~40 °C/32 °F~104 °F
Storage Temperature	−20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12W/PoC, 9W/Stand Alone

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
