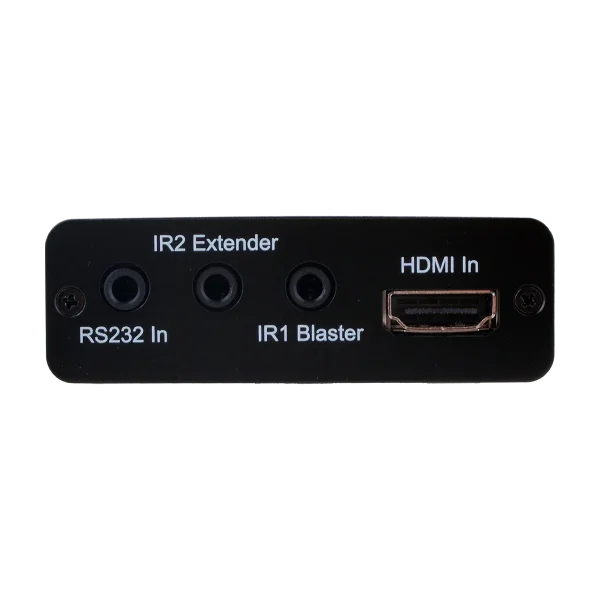

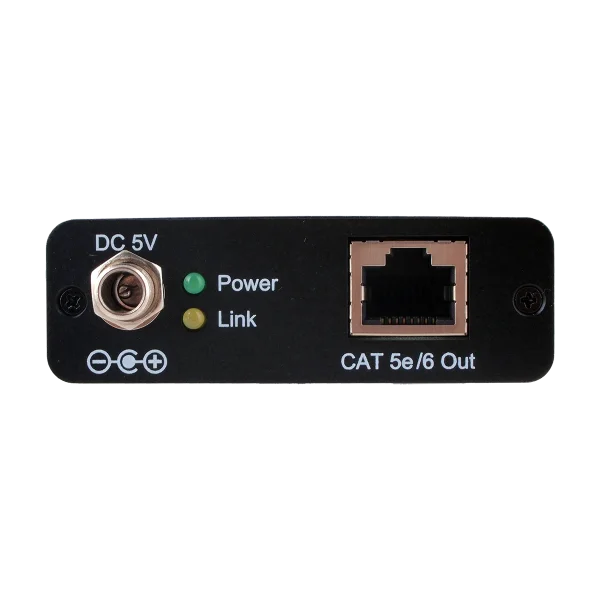

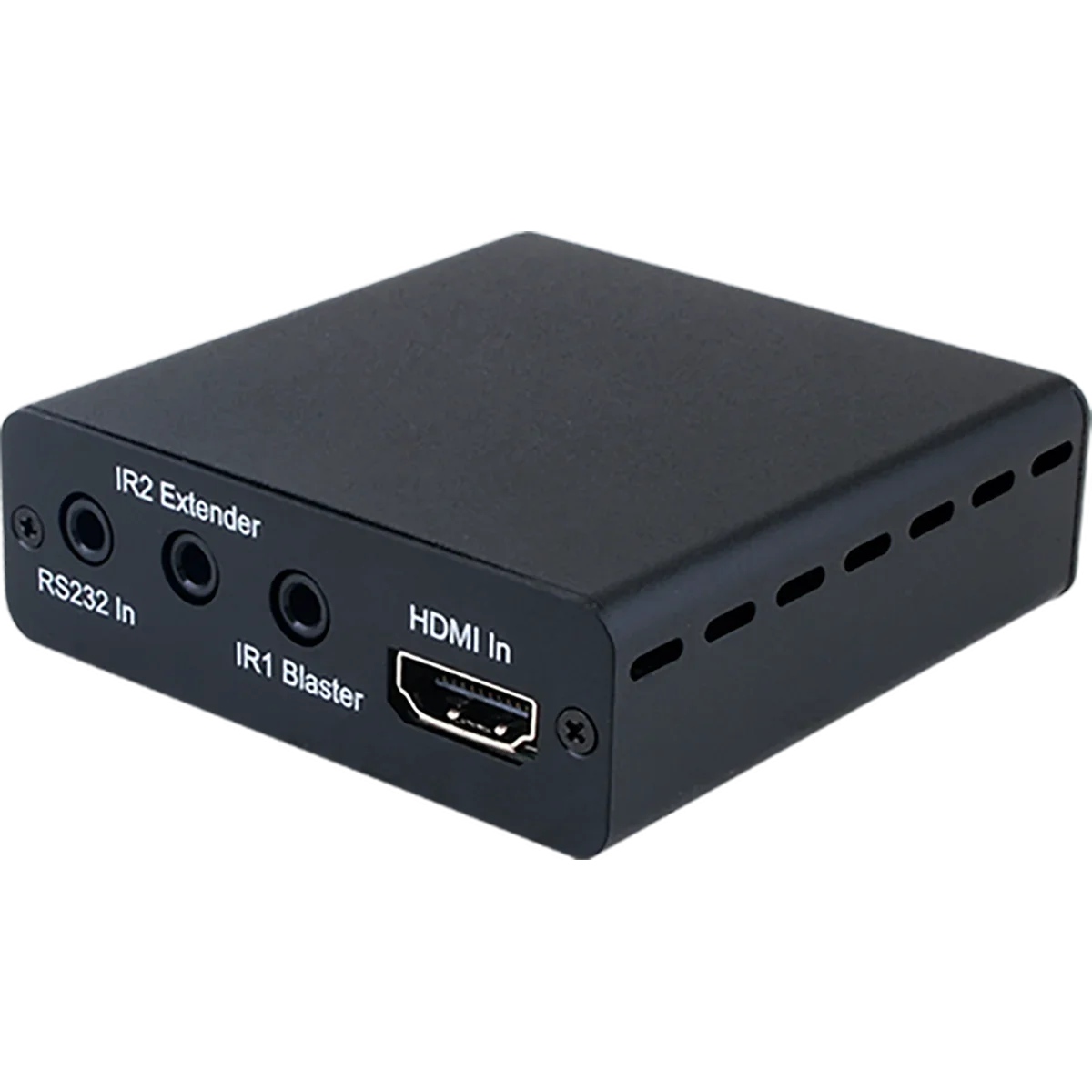

CH-506TX

CH-1602TX

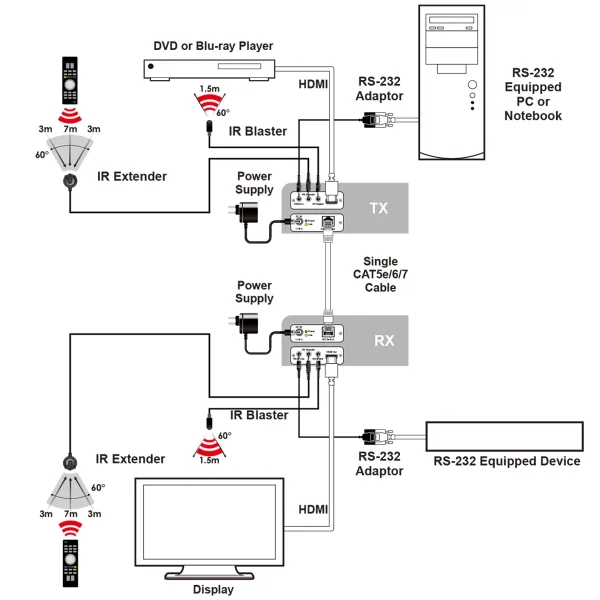

Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to, 100m/328ft and Cat.5e cable up to 90m/295ft, HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through), Receiver (PD) is powered by 48V PoH from the transmitter (PSE), HDMI with 3D & 4K@60Hz (YUV 4:2:0) support, 1×USB 2.0 Mini-B port (on the transmitter), 2×USB 2.0 Type A ports (on the receiver), Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports optical audio sampling rates up to 48kHz, Supports external analog and digital audio extension including support for ARC (Audio Return Channel), Supports RS-232 baud up to 115200bps, Ultra-thin mechanical design

VEX-E4501R

HDMI input and output with 3D & 4K video support (18Gbps), 1 HDMI output (Functions as local monitor output), HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product, Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through), Supports analog audio and optical audio pass-through., Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time, Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

SPH-170C

SPX-200WP

VEX-E2501T

HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant, HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) , Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output, HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through) , USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port, Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

CH-U331RX-W

Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes, Support video wall with 180° and 270° rotation, Video output can be scaled to a selected resolution, or left unscaled, The analog Line In on a connected Transmitter will send audio directly to this Receiver’s analog Line Out as well as being embedded into the HDMI output signal, The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter, May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af), Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch, Supports USB keyboard, mouse and storage extension

CH-514TXLN

Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K, HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through, Supports HDCP repeater and CEC bypass, Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit), HDMI with 3D, 4K2K support, HDCP and DVI compliant, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI

CH-2527TX

HDMI with 3D & 4K support, DVI 1.0 compatible, Supports resolutions up to 4K@50/60Hz (4:2:0, 8-bit), Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and 70m/230ft at 4K, HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through), Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only), Notes:The 48V PoH function is designed to power compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Other brands of Transmitter may not be compatible., The use of “Premium High Speed HDMI” cables is highly recommended for displaying 3D and 4K content and compatible display equipment is required.
