CH-331H-TX
Klicken zum Vergrößern
Cypress Technology

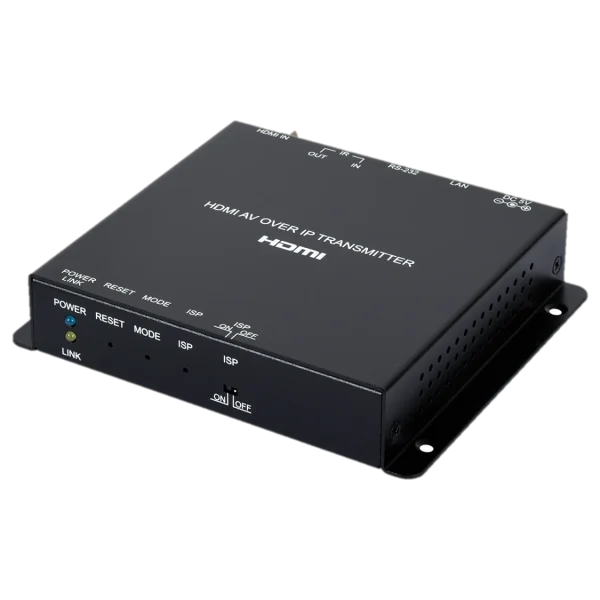

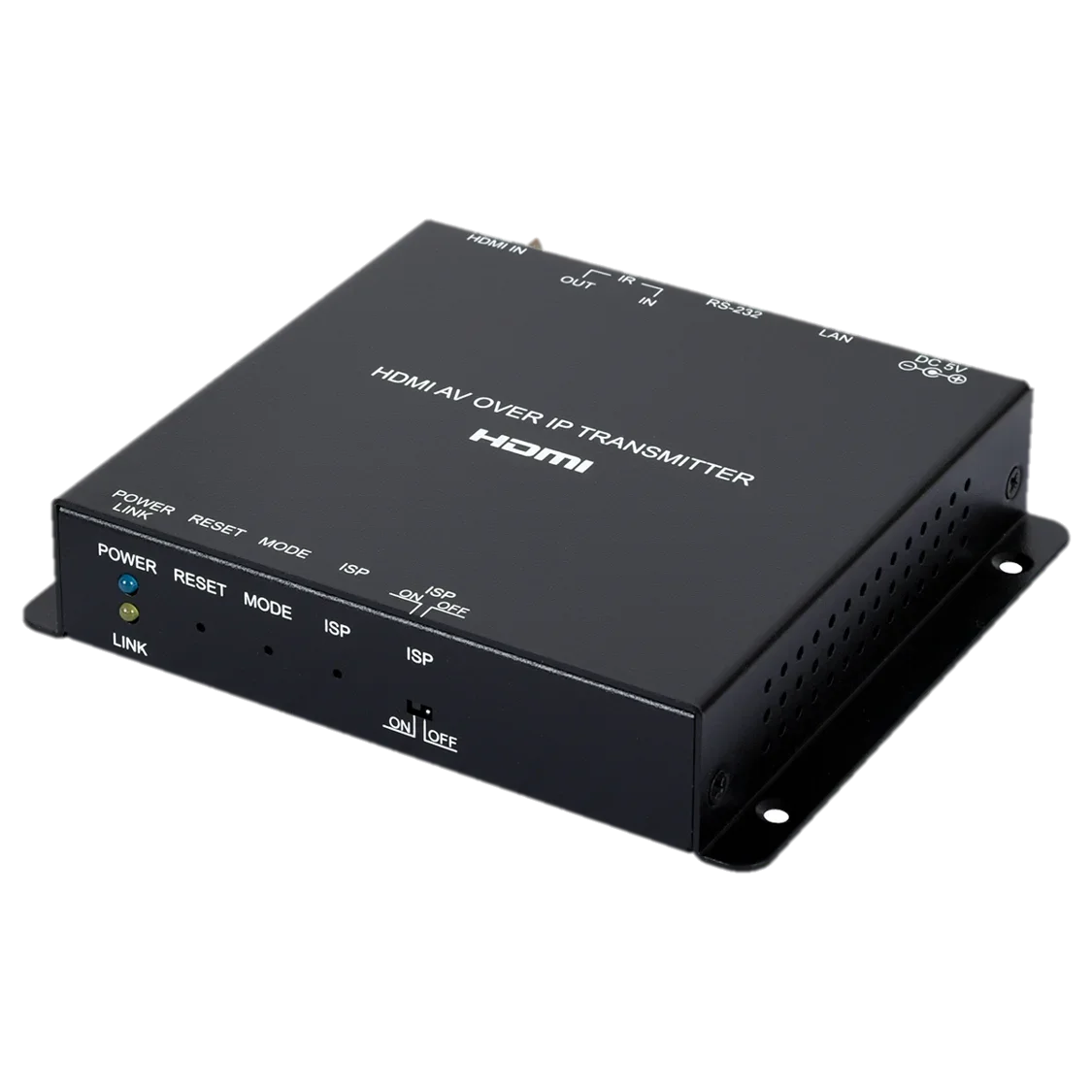

CH-331H-TX

Video, audio and control transmission over TCP/IP in Unicast (point- topoint) or Multicast (single-to-many, many-to-many) modes, Multi-monitor video wall support with 180° and 270° rotation options, HDMI input supports resolutions up to 1080p@60Hz/WUXGA, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream, Supports IR and RS-232 bypass

Hersteller-Nr.CH-331H-TX
HerstellerCypress Technology

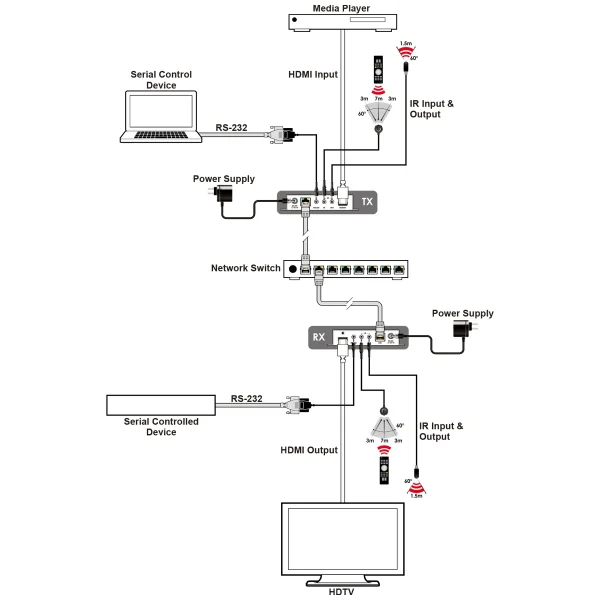

This unit is an HDMI over IP Transmitter that allows you to extend HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the transmission of High-Definition signals (up to 1080p@60Hz) with audio up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Transmitter also features bi-directional IR and RS-232 pass-through.

It is also possible to for this Transmitter to operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network with no additional bandwidth cost. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity.

This Video over IP system is perfect for both residential and commercial installation environments. Configuration information is provided via the On-Screen Display (OSD) on connected (but unlinked) Receivers and control is via WebGUI, Telnet, or the AV over IP Master Controller.

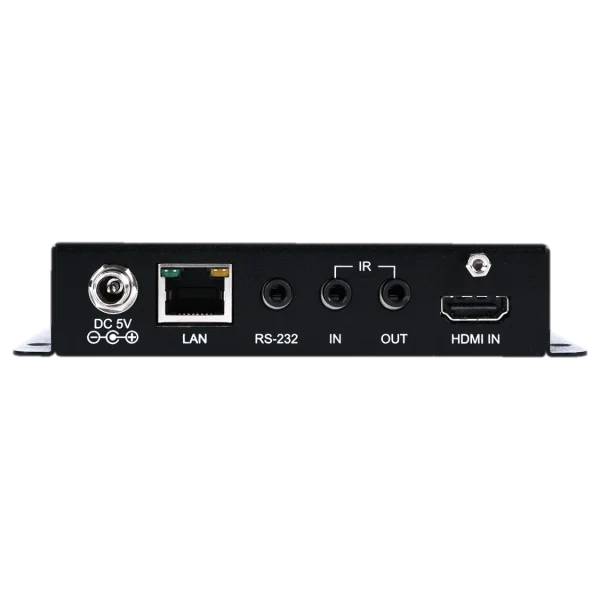

Interfaces
Input Port
  • 1 HDMI (Type-A)
Bi-directional Port
  • 1 GbE LAN (RJ-45)
Control I/O
  • 1 IR Extender (3.5mm)
  • 1 IR Blaster (3.5mm)
  • 1 RS-232 (DB-9)
Video
HDMI Compliance
  • HDMI 1.4 (DVI 1.0)
HDCP Compliance
  • 1.4
Input Signal Type
  • 1920x1080p@60 12bit RGB
Resolutions
Maximum Input HDMI
  • 1920×1080p@60
  • 1920×1200p@60RB
Maximum Output LAN Streaming
  • 1920×1080p@60
  • 1920×1200p@60RB
Audio
Digital Formats HDMI
  • LPCM (8 Channels), Bitstream, HD Bitstream
Power
Power Supply
  • 5V/2.6A DC (Locking)
Power Consumption
  • 5.17W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 128mm×25mm×108mm [Case Only]
  • 128mm×25mm×116mm [All Inclusive]
Weight
  • 364g
Field Firmware Update
Interface
  • WebGUI
Ordering Information
Model No. Product Description
CH-331H-TX
  • HDMI over IP Transmitter
CH-331H-RX
  • HDMI over IP Receiver
CDPS-CS7
  • AV over IP Master Controller

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
