CH-2538TXM-TB

HDMI input supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit), Automatic scaling of sources to match the native resolution of the HDMI display based on EDID, Supports 2 channel LPCM audio with volume control, Supports CEC bypass, Automatic input selection with hot plug detection enabling hands- free operation, Basic signal event automation (via RS-232 with a compatible receiver)

Hersteller-Nr.	CH-2538TXM-TB
Hersteller	Cypress Technology

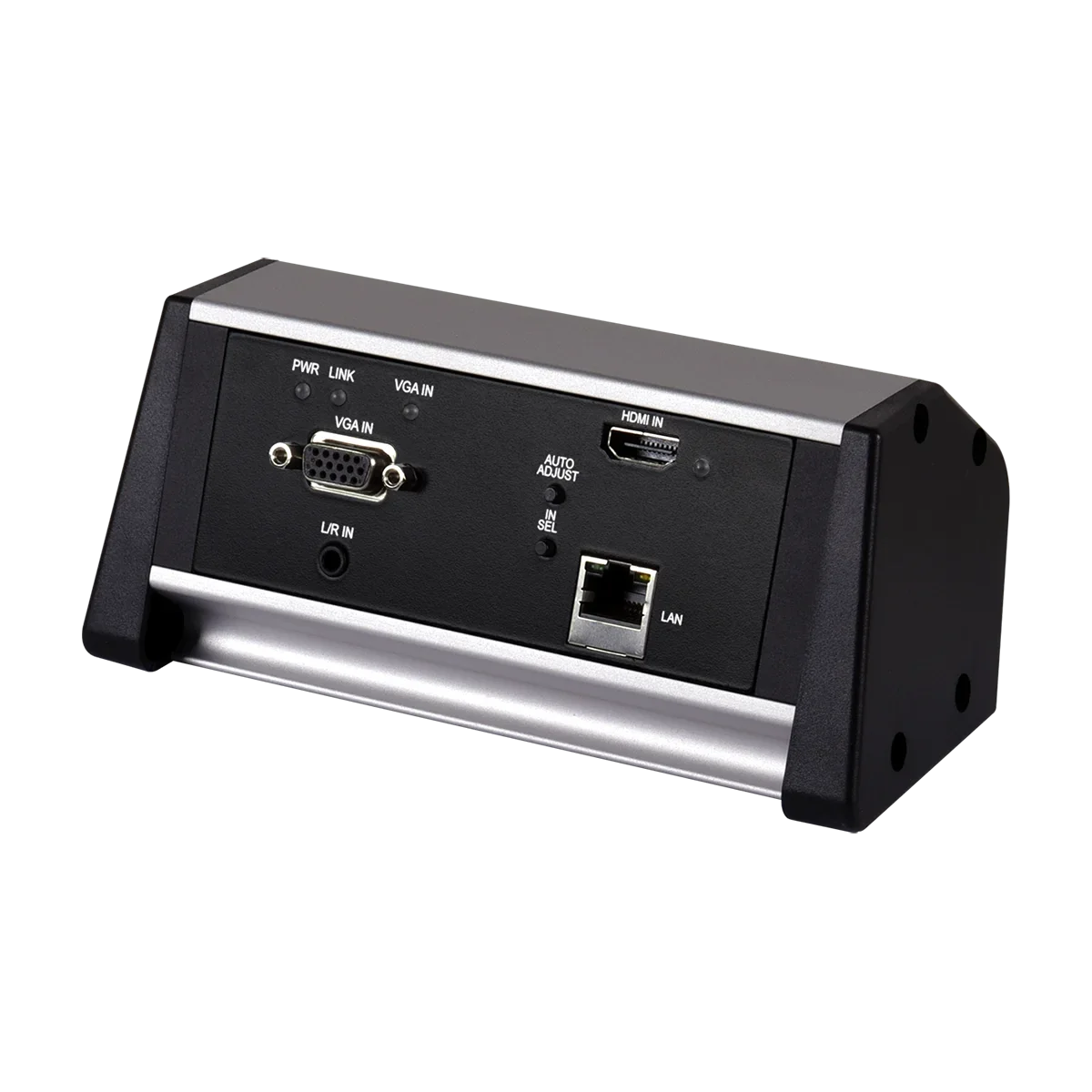

The CH-2538TXM-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CH-2538TXM-TB provides the perfect balance between ease of use and portability .Providing the user with a flexible AV solution that removes the boundaries of how a meeting space can be used.

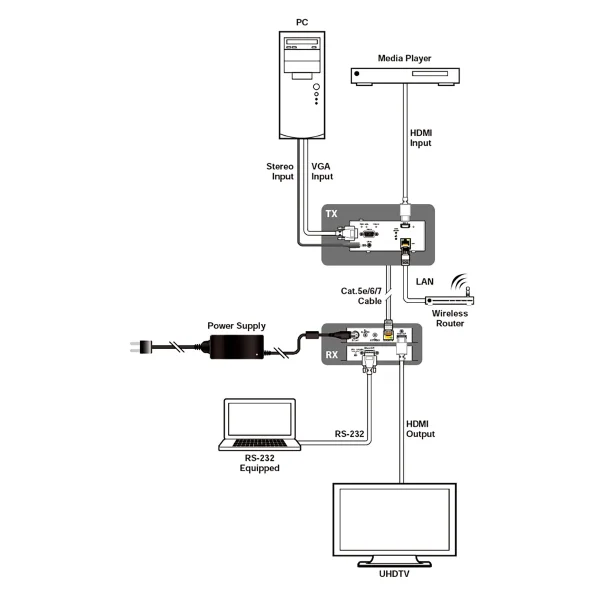

The signal management features, such as automatic source switching based on input signal detection, enable convenient hands-free operation. Additional functionality such as basic EDID management, HDCP management, and basic signal event automation (which can automatically send customized RS-232 commands to an external device) is also available for configuration via serial commands. Additionally, the unit may be powered locally or via PoH (Power over HDBaseT) from a compatible HDBaseT receiver, which allows for greater flexibility in installations. Controllable via front panel buttons with OSD and RS-232 (with compatible receiver).

Interfaces

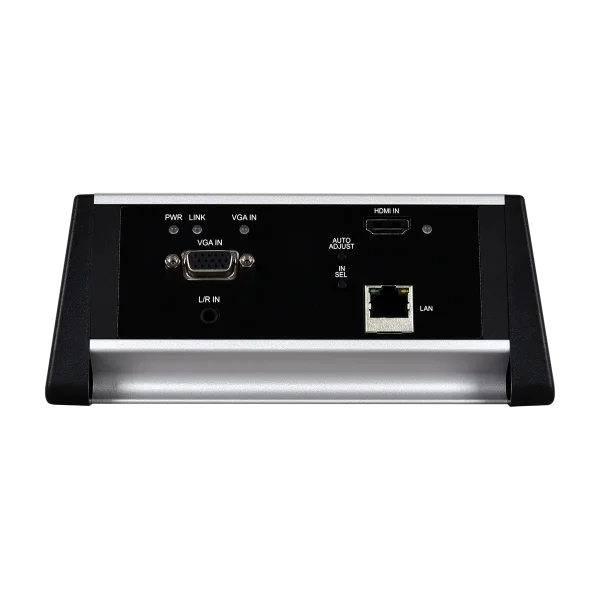

Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio (3.5mm)

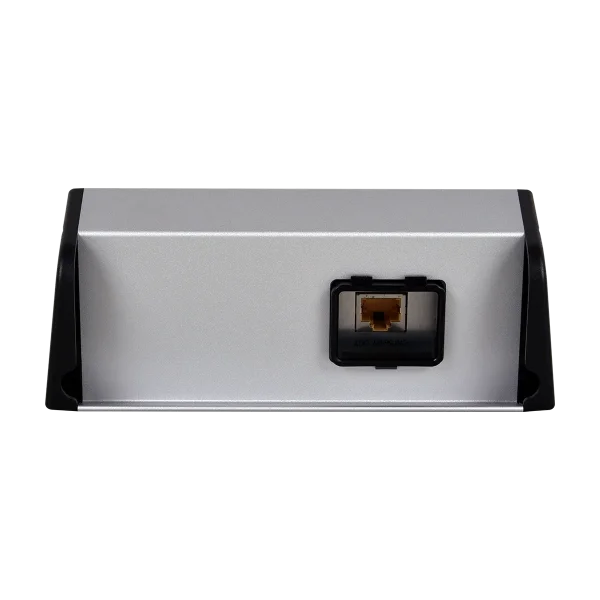

Output Port	1 HDBaseT (RJ45)
Control I/O	1 LAN (RJ-45)
Service Port	1 USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.2 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920×1200@60
Maximum Output	HDBaseT	4096×2160p@30

Power
Power Consumption	16.17W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black/Silver
Dimensions (W×H×D)	201mm× 82mm× 60mm [Case Only] 201mm× 82mm× 65mm [All Inclusive]
Weight	467g

Field Firmware Update
Interfaces	USB

Ordering Information
Model No.	Product Description
CH-2538TXM-TB	UHD+ HDMI/VGA over HDBaseT Table Box with Scaler & PoH (PD)
CH-2527RX	UHD HDMI over HDBaseT Receiver with IR, RS-232, LAN& PoH (PSE)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
