CH-2535RX

External analog stereo audio embedding/de-embedding support, Support for automatic input detection and automatic switching on source loss, Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent), Support for IR code learning as well as IR broadcasting, Supports Telnet for both client and server functionality, Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system, Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro), Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activation

Hersteller-Nr.	CH-2535RX
Hersteller	Cypress Technology

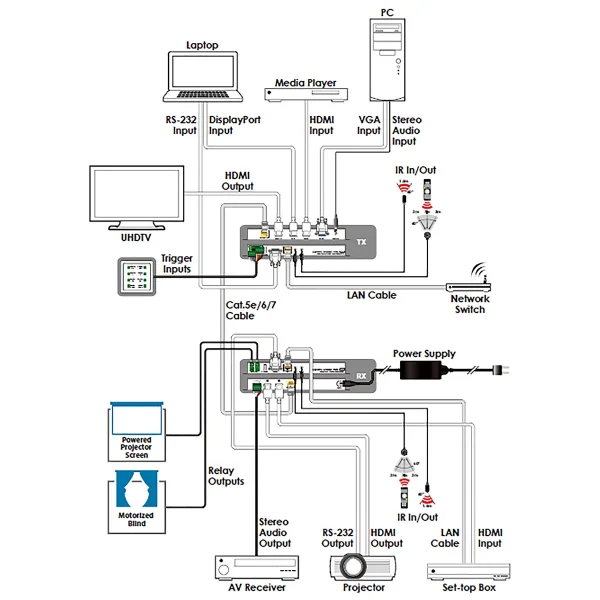

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI input support resolution/ timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) The HDBaseT input can received over Cat.6/7 cable up to 70m (at 4K@30Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.

Receiver also supports 2 relay connections, providing instant control over projector screens, curtains, lights, etc. The unique macro programmability allows for the implementation of multiple command activations from a single button press. The units is controllable via top panel controls (with OSD), WebGUI, Telnet, and RS-232.

Interfaces
Input Port	1 HDMI(Type-A) 1 HDBaseT(Cat.5e/6/7)

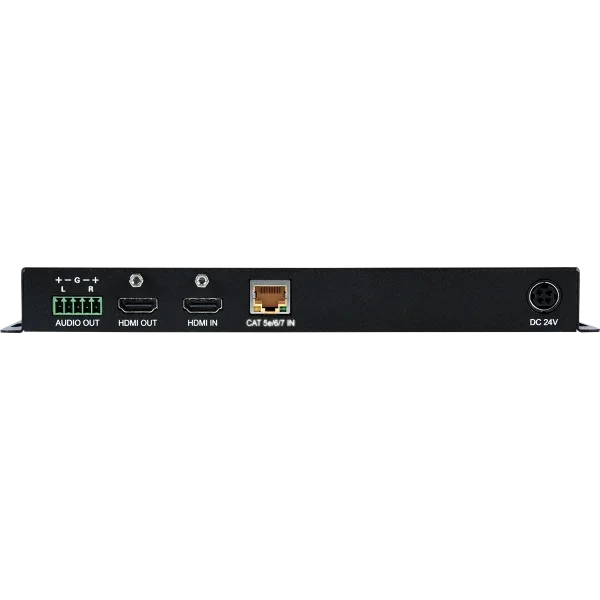

Output Port	1 HDMI(Type-A) 1 Stereo Audio (Terminal Block)

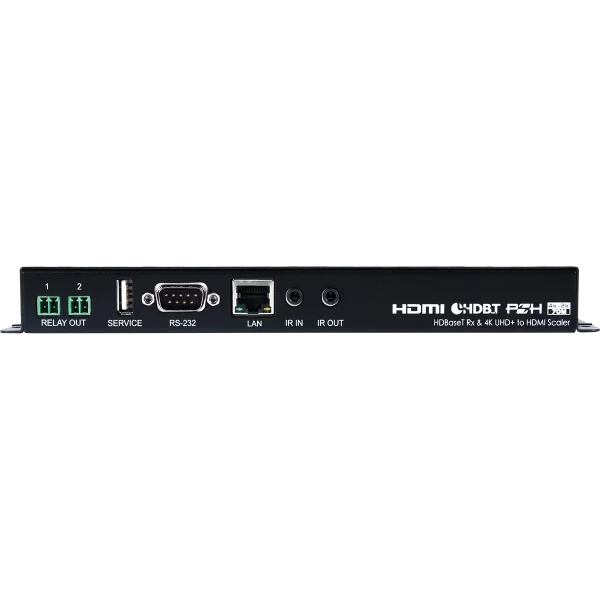

Control I/O	1 IR Blaster (3.5mm) 1 IR Extender (3.5mm) 1 RS-232 (9-pin D-sub) 1 LAN (RJ45) 2 Relay (Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Types	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	HDBaseT	4096×2160p@30
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	24V/2.7A DC(US/EU standards, CE/FCC/UL certified)
Power Consumption	24W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	430g

Field Firmware Update
Interface	USB, WebGUI

Ordering Information
Model No.	Product Description
CH-2535RX	HDBaseT Rx & 4K UHD+ to HDMI Scaler
CH-2535TX	Multi-Format 4K UHD+ over HDBaseT Tx

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
