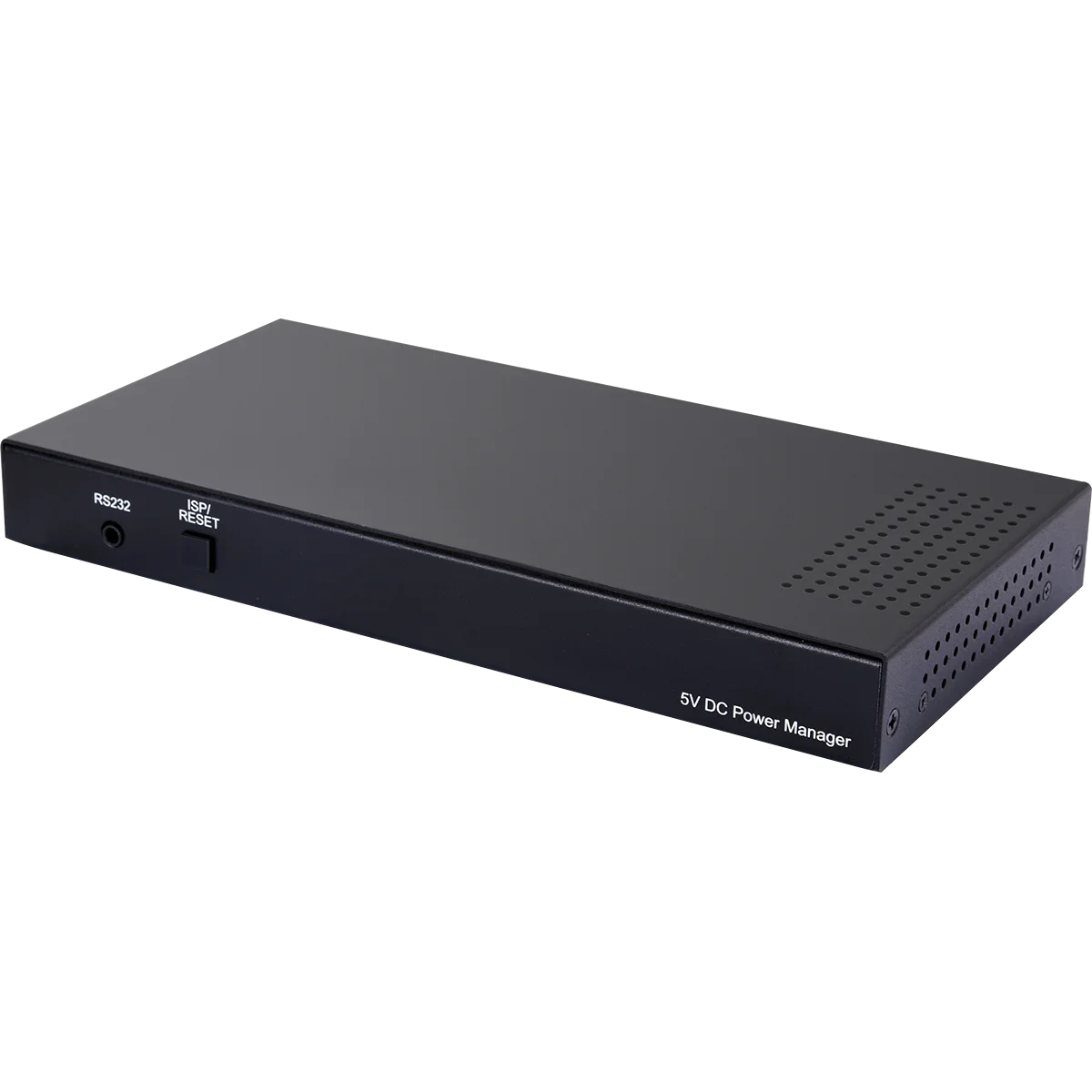

8-Port 5V DC Power Manager

Power management system providing voltage-controlled current (5V) on each output , Battery backed up clock for scheduling power events, Integrated WebGUI for control and power analysis , Unit’s overall maximum power consumption is only 140 watts , Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors

Hersteller-Nr.	CSR-8PSU-5V
Hersteller	Cypress Technology

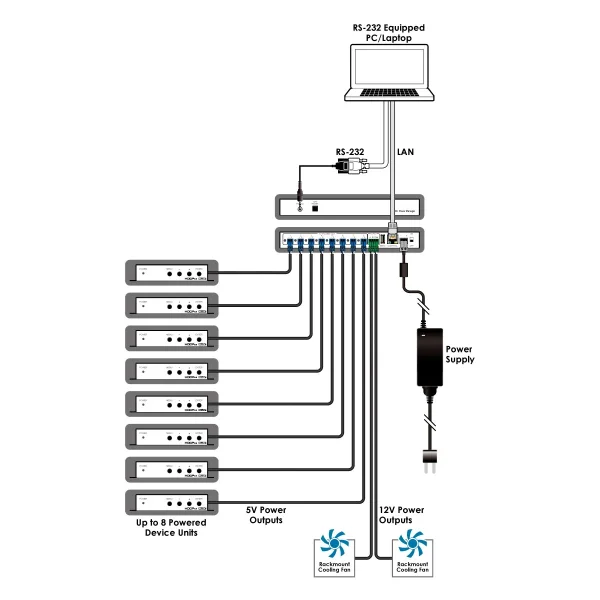

This 8-Port Managed 5V DC Power Supply is a DC power splitter which can distribute up to 3 amps of 5 volt power to up to eight connected devices via 2-pin terminal block connections (120 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.

Interfaces

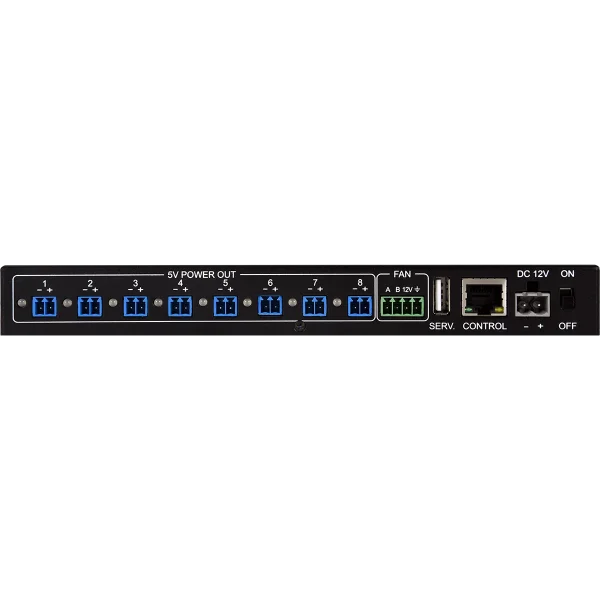

Input Port	8× 5V DC (2-pin Terminal Block) 2× Fan Out (4-pin Terminal Block)

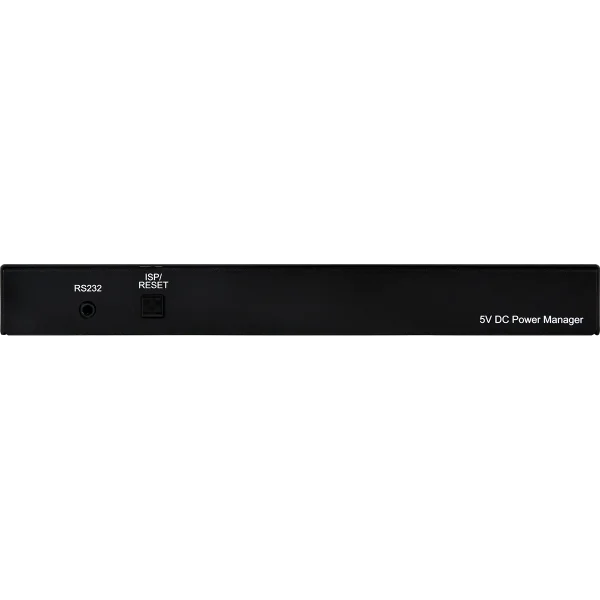

Output Port	1× RS232(3.5mm) 1× IP Control (RJ45)

Power
Power Supply	12V/12.5A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	150W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	211.5mm×24mm×108mm (W×H×D) [Case Only] 211.5mm×25mm×117.5mm (W×H×D) [All Inclusive]
Weight	372g

Field Firmware Update
Interface	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CSR-8PSU-5V	8-Port 5V DC Power Manager

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
