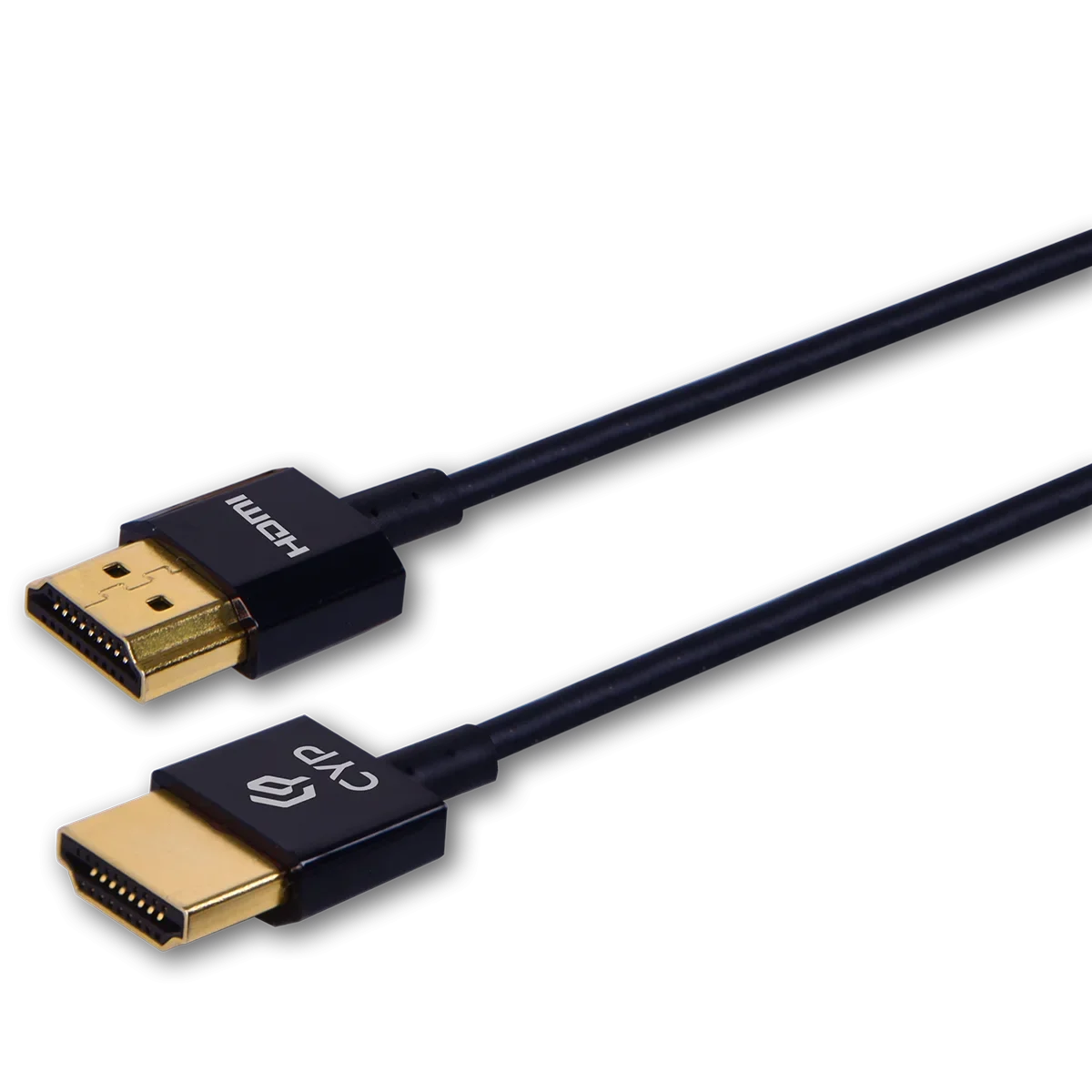

4K Ultra-slim High Speed HDMI Cable

The ultra-slim HDMI cable is 50% smaller than regular 4K HDMI cable, this flexible and compact design is easy to carry and is the ideal solution for tight spaces, kept almost hidden from sight.Not all the HDMI cables in the market are the same. The Ultra-slim HDMI cable is the one you should select to deliver a 4K signal. The cable can transmit video and audio over the full 18Gbps bandwidth and it passes an EMI (electromagnetic interference) noise test.Its excellent construction combines gold-plated connectors, bare copper conductors, and foil and braid shielding to provide superior cable performance, static-free video transmission, and unwanted noise suppression.

Hersteller-Nr.	4K Ultra-slim High Speed HDMI Cable
Hersteller	Cypress Technology

4K @ 60Hz, HDR, 4:4:4 Chroma
Audio Return Channel (ARC)
High Dynamic Range imaging (HDR)
HDMI Ethernet Channel (HEC)
Consumer Electronics Control (CEC)
High-Bandwidth Digital Content Protection(HDCP)
Dolby TrueHD & DTS-HD Master Audio
48-Bit Deep Color & 3D
Foil shielding & Braided shielding
24K Gold-plated HDMI connectors
Slimmest wire size – 36 AWG

SPECIFICATIONS
HDMI Signal Support
HDMI Standards	2.0 (18Gbps)
Video Format	4K/1080p, 60fps, 3D, HDR
Data Rate	18Gbps
Control Signal	HDCP 2.2/EDID/ CEC/ DDC
Connector	HDMI Type A Connector
Audio Support	Dolby TrueHD/ DTS-HD Master Audio

Physical Properties
Op. Temp.	0°C to 50 ° C
Humidity	0%~85% RH
Bending Radius	7mm
Pulling Force	6kg

Comparison Chart
	Ultra-slim HDMI2.0		Premium HDMI 2.0		Ultra HDMI 2.1
Bandwidth	18Gbps		18Gbps		48Gbps
Max Resolution	4K UHD 3840*2160@60Hz		4K UHD 3840*2160@60Hz		8K 7680 x 4320@60Hz
Slimmest & Longest	36AWG	0.2m	30AWG	1.0m	30AWG	1.0m
		0.5m		2.0m		2.0m
		1.0m	28AWG	3.0m		3.0m
		1.8m		5.0m	26AWG	5.0m
			24AWG	7.0m

ORDERING INFORMATION
Model No.	Product Description
CBL-H100-002	Ultra-slim HDMI 2.0, 0.2M, 36AWG
CBL-H100-005	Ultra-slim HDMI 2.0, 0.5M, 36AWG
CBL-H100-010	Ultra-slim HDMI 2.0, 1.0M, 36AWG
CBL-H100-018	Ultra-slim HDMI 2.0, 1.8M, 36AWG
CBL-H300-010	Premium HDMI 2.0, 1.0M, 30AWG
CBL-H300-020	Premium HDMI 2.0, 2.0M, 30AWG
CBL-H300-030	Premium HDMI 2.0, 3.0M, 28AWG
CBL-H300-050	Premium HDMI 2.0, 5.0M, 28AWG
CBL-H300-070	Premium HDMI 2.0, 7.0M, 24AWG
