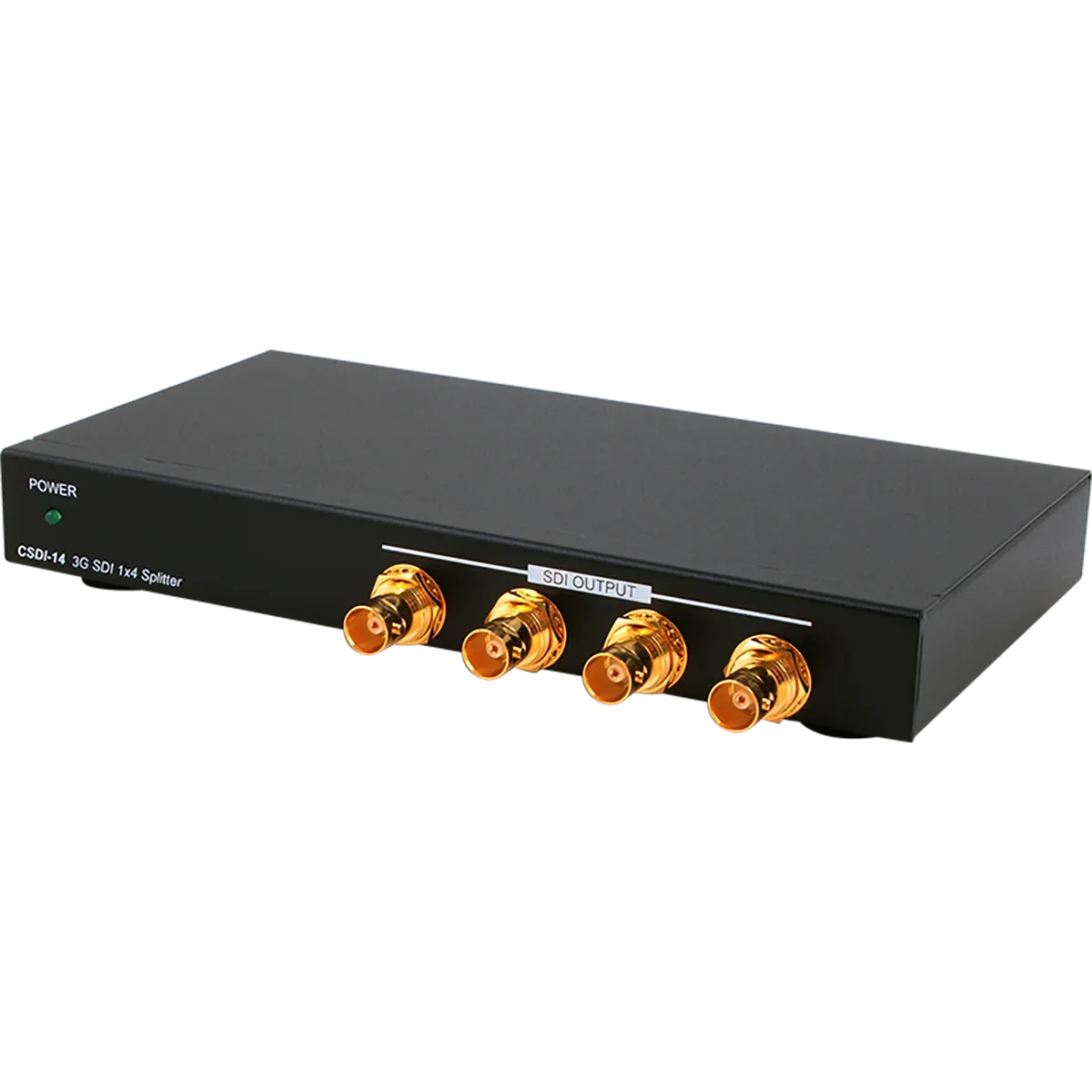

3G-SDI 1 by 4 Splitter

SplitS one 3G-SDI input source to four 3G-SDI displays simultaneously, Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s, Supports SMPTE 425M-A, SMPTE 424M, SMPTE 292M, SMPTE 259M-C, Provides equalized and re-clocked transmission, Supports signal input and output distances of up to 300m for SD-SDI signals, 200m for HD-SDI signals and 100m for 3G-SDI signals

Hersteller-Nr.	CSDI-14
Hersteller	Cypress Technology

The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be split from a single SDI source to up four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbit/s to give you high bandwidth signal transmission without signal loss over long distances.

SMPTE Standard	425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates	2.970 Gbit/s and 2.970/1.001 Gbit/s

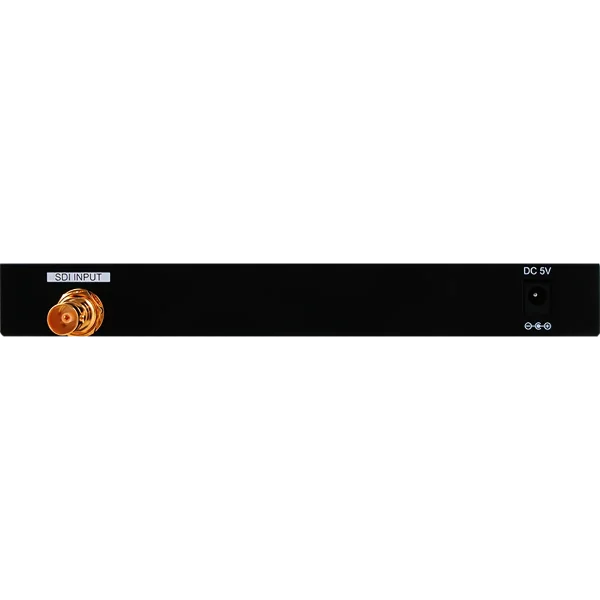

Input	1×BNC (SD/HD/3G-SDI)

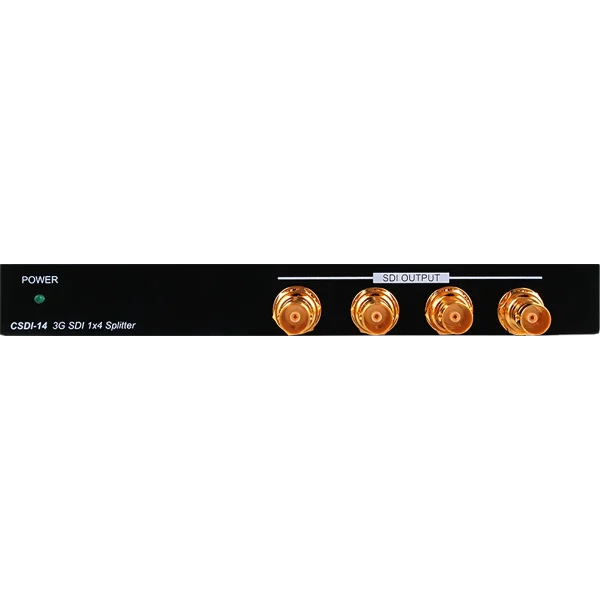

Output	4×BNC (SD/HD/3G-SDI)
SDI Timing Support	SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s
Power Supply	5 V DC/ 2.6 A (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
SDI Cable Distance	3G-SDI up to 100 m (BELDEN 1694A) HD-SDI up to 200 m (BELDEN 1694A) SD-SDI up to 300 m (BELDEN 1694A)
Dimensions	200 mm (W)×138 mm(D) x 30 mm (H)
Weight	900 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (Non-condensing)
Power Consumption	5 W
