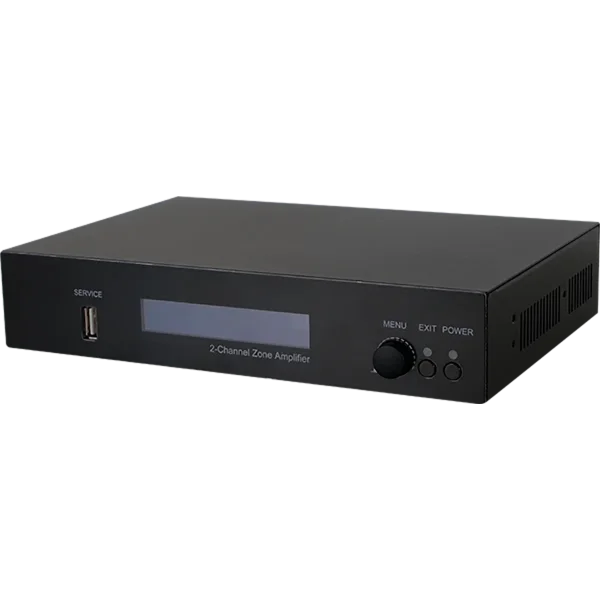

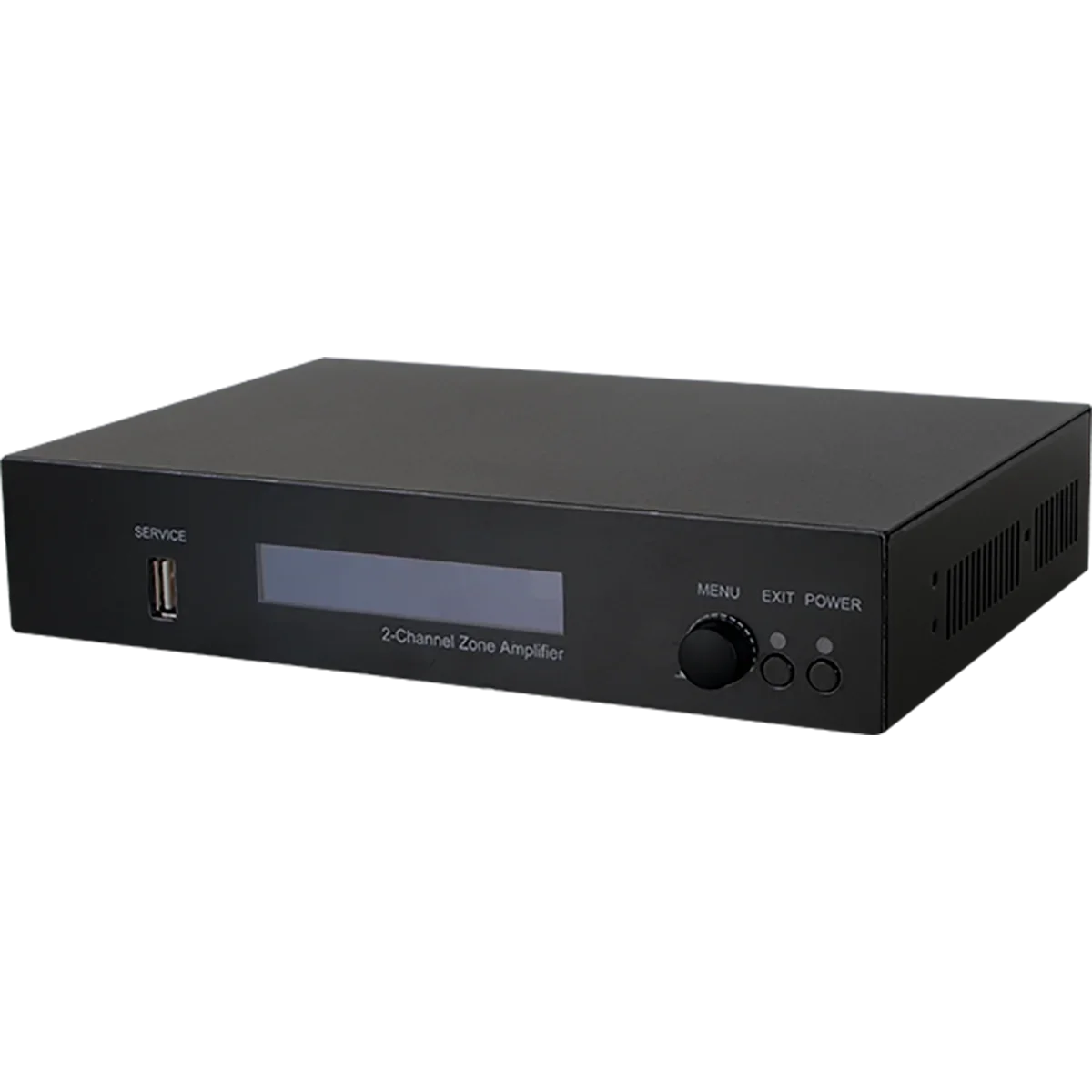

2-Channel Zone Amplifier

Supports Digital to Analog audio Conversion (DAC) and Analog to, Digital audio Conversion(ADC), Supports input sampling rate up to 96kHz and output at 48kHz, Supports 2 Passive speaker with 4Ω ~ 8Ω each, Speaker each output channel supports 45W/4Ω, Hi-Efficient 2 x 45W class D amplify > 80% efficient, Synchronous output sound on both digital and analog, Supports distances up to 300 meters through CAT5e/6/7 cables, Supports RS-232, IR remote and on-panel controls, Sound supports up to -80dB with volume up moderation at power ON

Hersteller-Nr.	DCT-23A
Hersteller	Cypress Technology

The 2-Channel Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital. As well as speaker outputs, it boasts a CAT5e/6/7 output for wider systems integration. Suitable for use at musical events, sound presentations and sound amplification. With audio sampling rate support up to 96kHz and I/O data rate supports up to 24-bit, it provides high quality sound reproduction and sound amplification up to -80dB. The system also support control via RS-232 and IP control (Telnet/WebGUI).

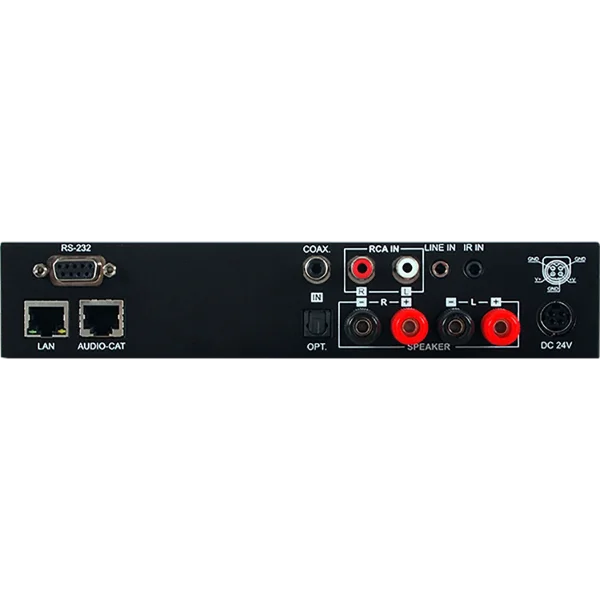

Input ports	1 x Optical, 1 x Coaxial, 1 x 3.5Ø Line in, 1 x R/L RCA, 1 x D-Sub 9pin (RS-232), 1 x RJ-45 (LAN), 1 x Service, 1 x IR, 1 x AUDIO-CAT
Output ports	1 x Power Rated Output Amplifer L/R
Digital Audio	LPCM 2CH
Audio Sampling Rate	Up to 96kHz
Stereo Input/Output Level	2 Vrms ± 0.2
ESD Protection	Human body model: ±8kV (air-gap discharge)
Power Supply	24V/ 2.7A DC (US/EU standards, CE/ FCC/UL certified)
Dimensions	215mm(W) x 144mm(D) x 42mm(H)/ Jacks Excluded 215mm(W) x 174mm(D) x 47mm(H)/ Jacks Included
Weight	1060 g
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	Operating from 0°C ~ 40°C
Storage Temperature	-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity	20 ~ 90% RH (non-condensing)
Power Consumption	52W
