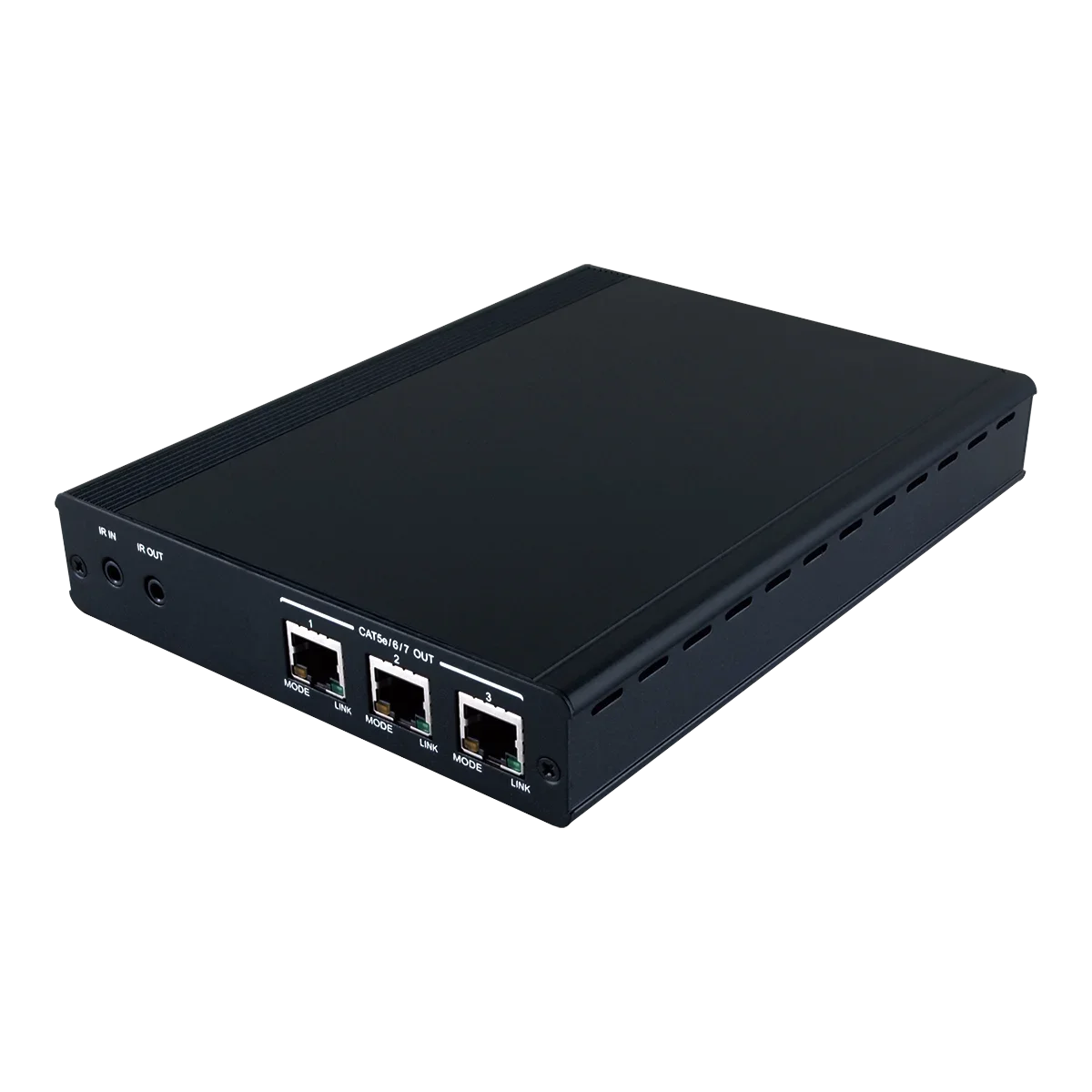

1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter

Klicken zum Vergrößern

Cypress Technology

1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter

Simultaneous HDMI and CAT5e/6/7 outputs , Supports data rate from 250Mbps up to 3Gbps , Supports up to 4096x2160@60Hz YUV 4:2:0 8bit , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32~192kHz sample rate) , Supports selection of Standard or TV EDID settings , Supports Power over Cable (PoC) feature • Supports Bidirectional IR control , The 3D signal display follow by display TV’s EDID

Hersteller-Nr.	CHDBT-1H3CPL
Hersteller	Cypress Technology

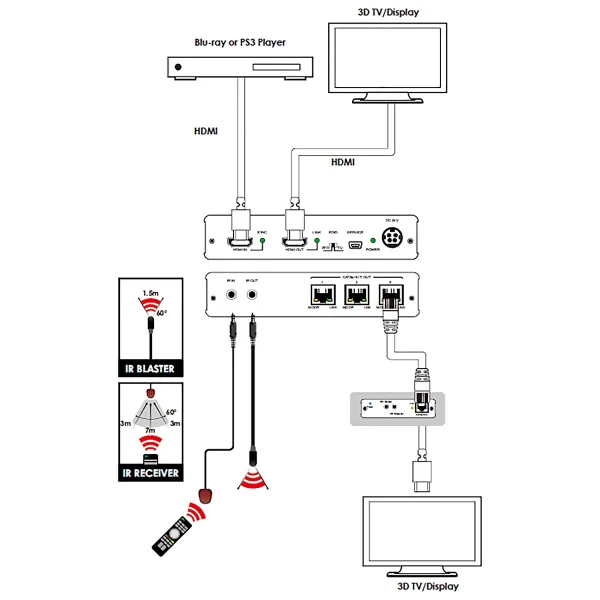

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.

Interfaces

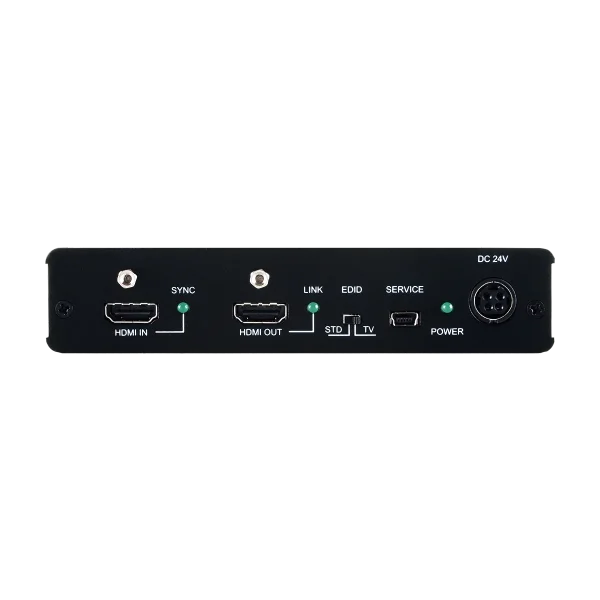

Input Port	1 HDMI (Type-A)

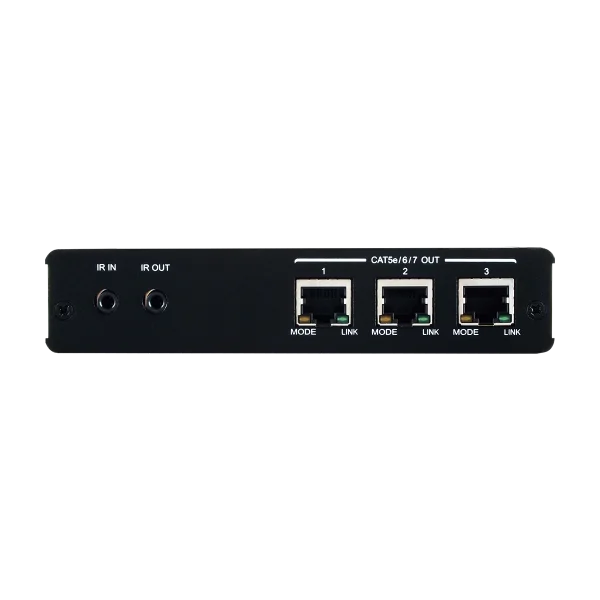

Output Port	1 HDMI (Type-A) 3 HDBaseT
Pass-through Port	1 IR IN (3.5mm) 1 IR OUT (3.5mm)
Service Port	1 USB(Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8bit
Output Saignal Type	4096x2160@60Hz YUV 4:2:0 8bit

Resolutions
Maximum Input	HDMI	4096×2160p@60 4:2:0
Maximum Output	HDMI	4096×2160p@60 4:2:0
	HDBaseT	4096×2160p@60 4:2:0

Audio
HDMI	LPCM(8CH), Bitstream, HD Bitstream
HDBase T	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	24V / 2.7A DC
Power Consumption	33W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	145 mm x 30 mm x 190 mm [Case Only] 145 mm x 30 mm x 199 mm [All Inclusive]
Weight	592g

Field Firmware Update
Interface	USB to PC

Ordering Information
Model No.	Product Description
CHDBT-1H3CPL	1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
