ZUHD60-2EMP – ZyPerUHD60 Encoder, 3x1 Switching Input, Dual LAN with Integrated Management

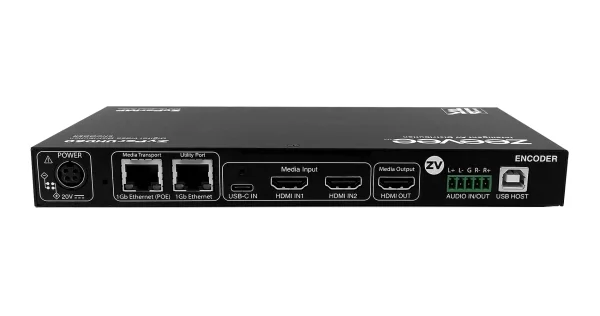

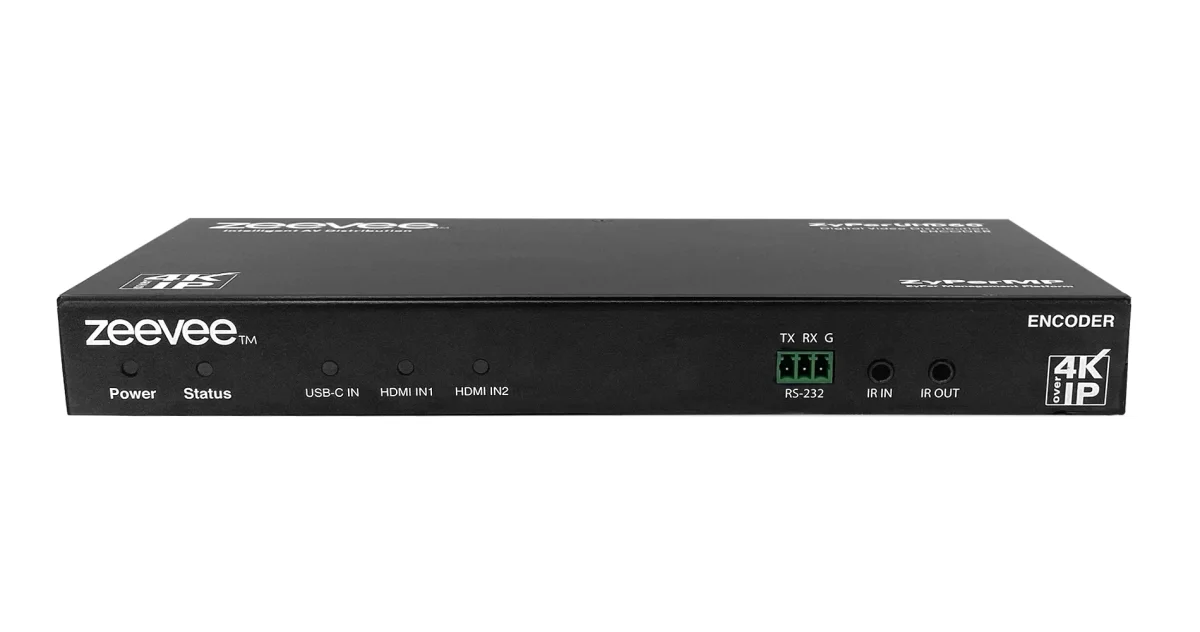

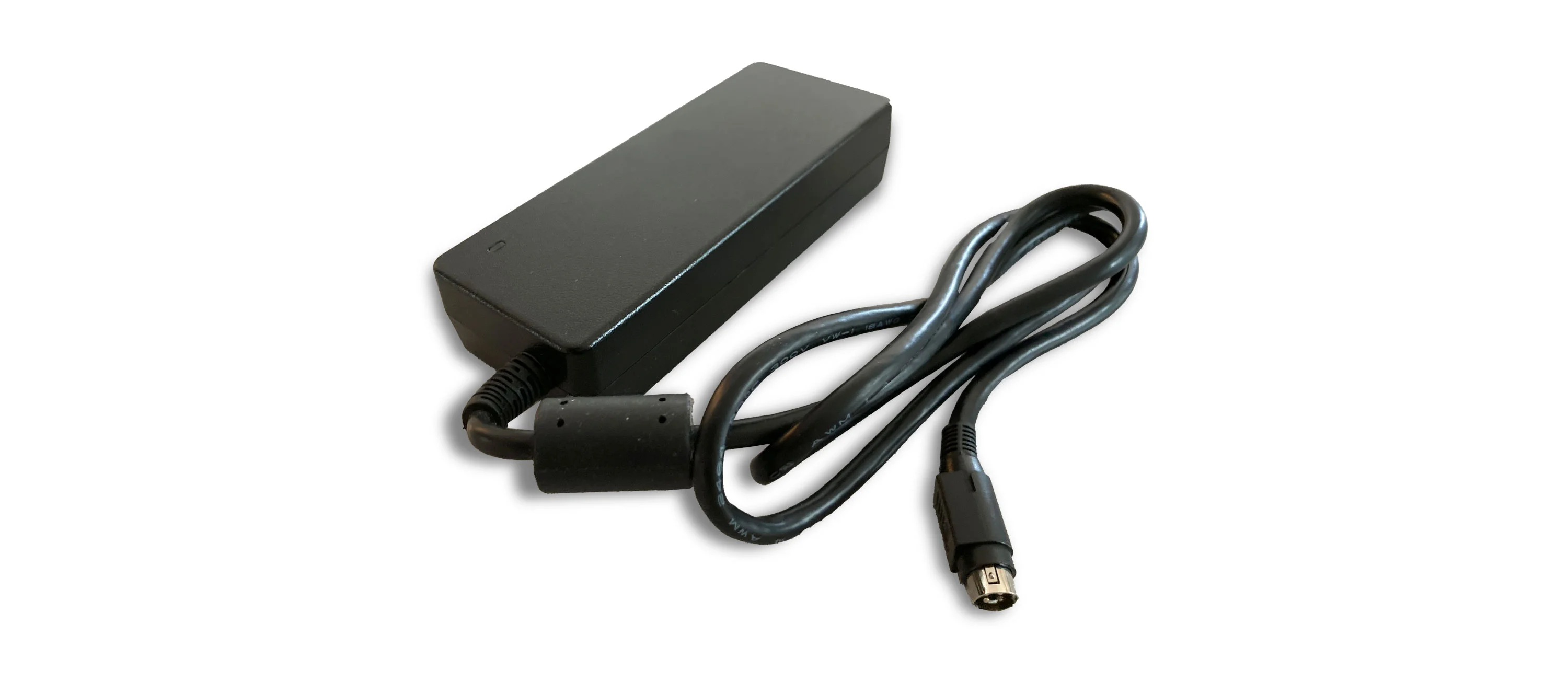

ZUHD60−2EMP is an HDMI 2.0a, Switching, triple−input AVoIP Encoder (Dual HDMI and USB−C) that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES−256 encryption. Includes integrated ZyPer Management Platform running on a dedicated processor. This encoder has a 5−pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper. Other features include USB−A, IR, RS−232 (via 3−pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60−2EMP requires a ZyPerUHD60 AVoIP Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (20v Power supply sold separately).

• Compessed 4K
• HDMI 2.0
• Video Wall
• AES Encryption
• HDCP 2.3
• AES67
• USB 2.0, 802.1x compatible
