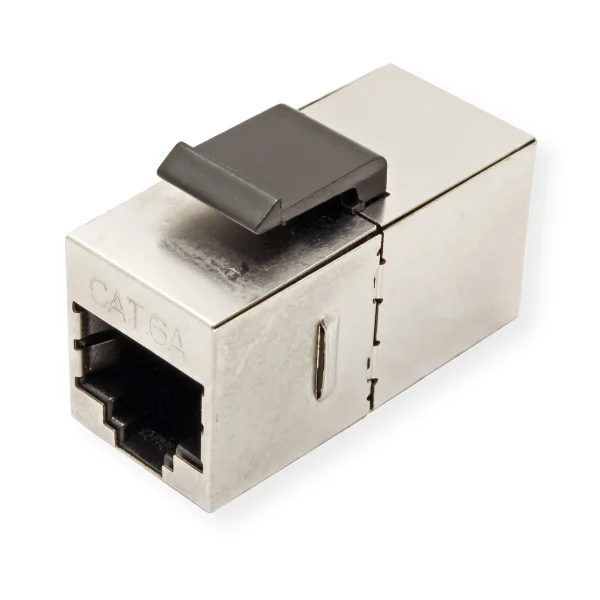

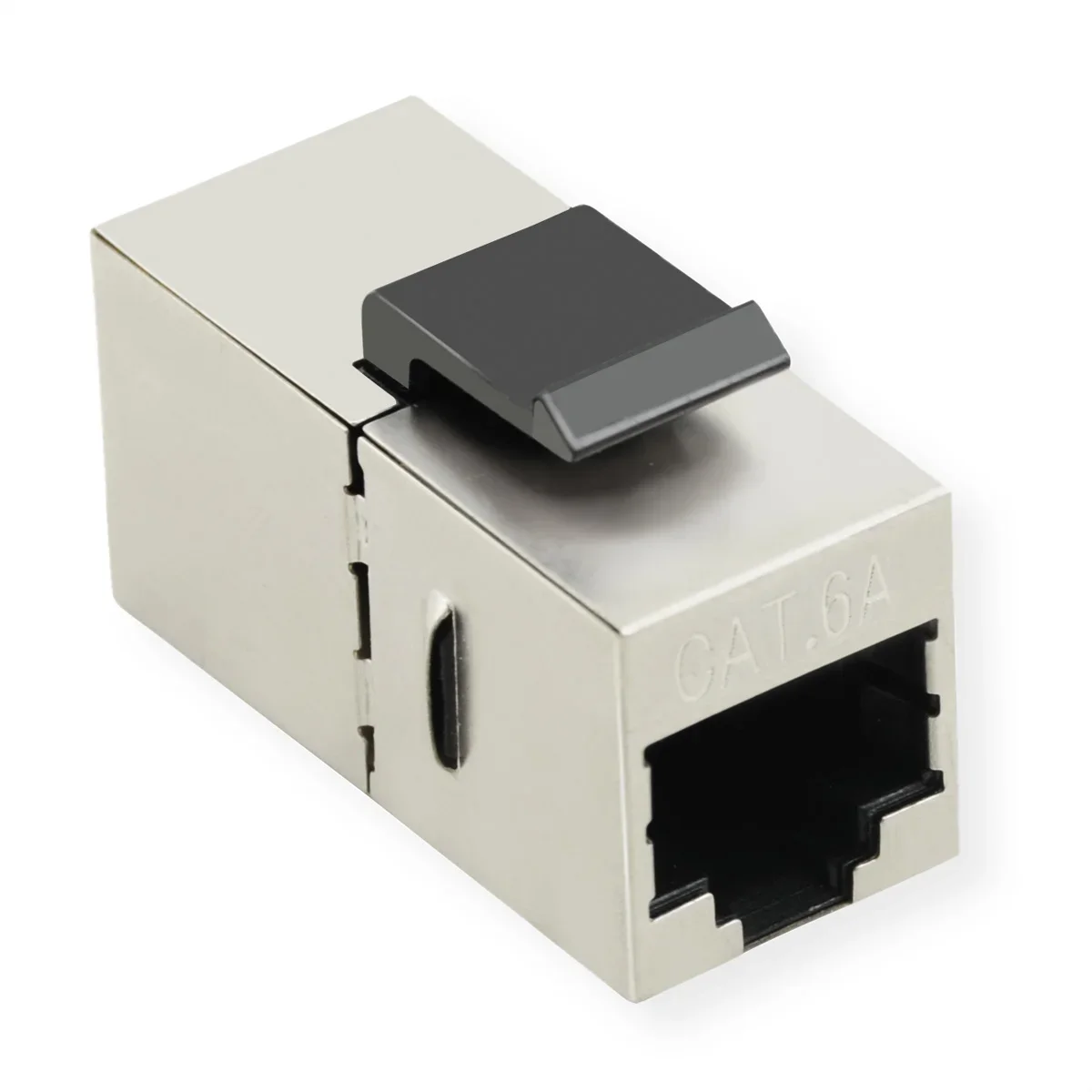

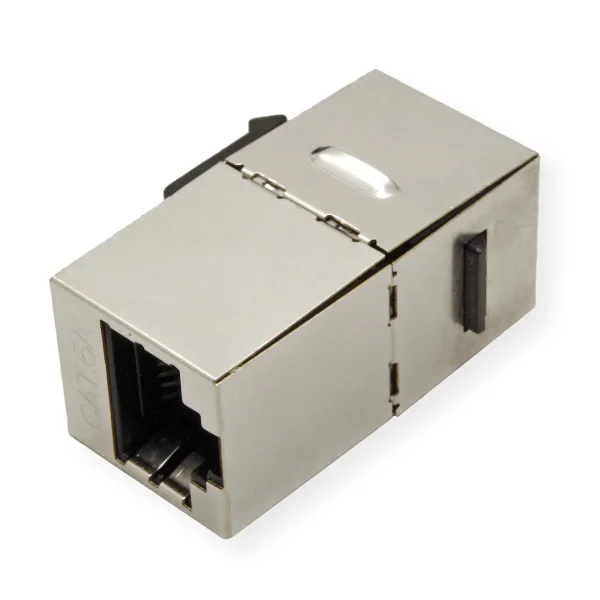

VALUE RJ-45 Kupplung, Keystone, geschirmt, Cat.6A (Class EA)
VALUE RJ45 Kupplung, Keystone, geschirmt, Kat6A/Kl.EA
| Hersteller-Nr. | 21.99.3006 |
| Hersteller | VALUE |
Geschirmte Keystone Kupplung in CAT.6A zur Verbindung bzw. Verlängerung von RJ-45 Netzwerkkabeln
- Geschirmte RJ-45 Kupplung zum Verlängern von Twisted Pair Kabeln
- Passend für Keystone-Panel und Anschlussdosen
- Geeignet für Kat.6A Verkabelungen bis 500 MHz
- Gesamtes Gehäuse aus Metall zum Schutz der Signale gegen elektromagnetische Einstreuung
- 8 Kontakte, 1:1 verbunden
- Schmaler Formfaktor für Umgebungen mit wenig Platz
Spezifikationen
| Hersteller | VALUE |
|---|---|
| Produktgruppe | Anschlusstechnik TP |
| Produkttyp | RJ-45 Kupplung |
| Farbe | silberfarben |
| Schirmungstyp | geschirmt |
| Übertragungsqualität | Cat6A / Class EA |
| Anzahl Ports | 1 |
| Belegung | EIA/TIA 568A |
| Material (Gehäuse) | Metall |
| Schirmkontaktierung | ja |
| gesonderte Zugentlastung | nein |
| Steckrichtung | gerade |
| Technische Besonderheiten | 1 : 1 verbunden |
| Betriebstemperatur min. | -10 °C |
| Betriebstemperatur max. | 60 °C |
| Höhe | 16 mm |
| Breite | 14.6 mm |
| Tiefe | 30 mm |
| Gewicht | 7.8 g |
| Verpackungshöhe | 10 mm |
| Verpackungsbreite | 20 mm |
| Verpackungstiefe | 20 mm |
| Paketgewicht | 0.02 kg |
Keine Maßangaben verfügbar.
