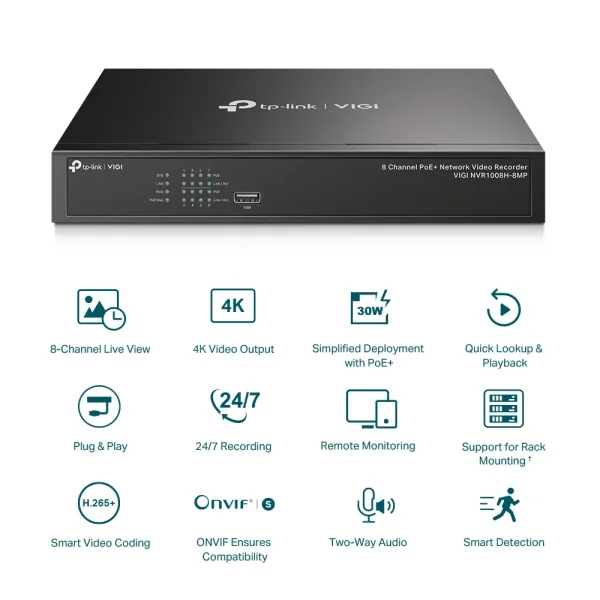

TP-Link - 8 Channel PoE Network Video Recorder - VIGI NVR1008H-8MP
Klicken zum Vergrößern
TP-Link_VIGI

TP-Link - 8 Channel PoE Network Video Recorder - VIGI NVR1008H-8MP

EAN/GTIN4897098688762
Hersteller-Nr.VIGI NVR1008H-8MP(UN)
HerstellerTP-Link_VIGI

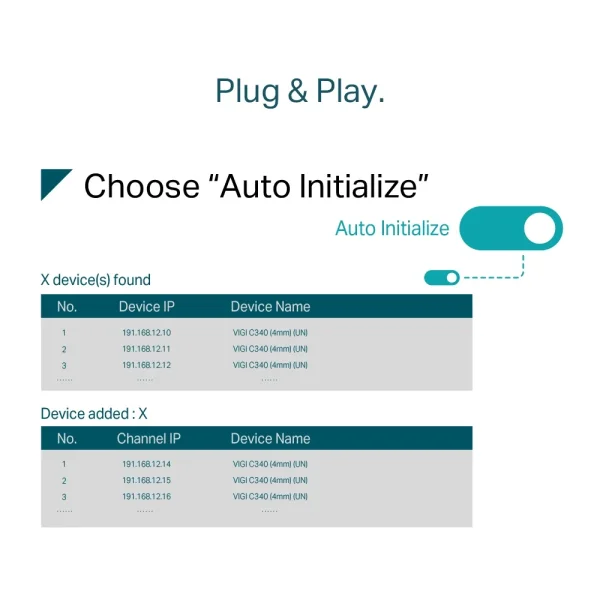

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Leistungen

Video-Eingangskanäle 8 Kanäle
Alarm-Eingangskanäle 8
Alarm-Ausgangskanäle 1
Videoaufnahme-Modi 720p, 1080p, 2160p
Maximale Auflösung 3840 x 2160 Pixel
Unterstütze Auflösung 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Auflösung bei Capture Geschwindigkeit 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Unterstützte Videoformate H.264, H.264+, H.265, H.265+
Eingangsbandbreite 80 Mbit/s
Ausgangsbandbreite 60 Mbit/s

Wireless LAN Funktionen

WLAN Nein

Festplatte

HDD Kapazität 0 GB
Max. Speicherkapazität 10 TB
HDD Schnittstelle SATA

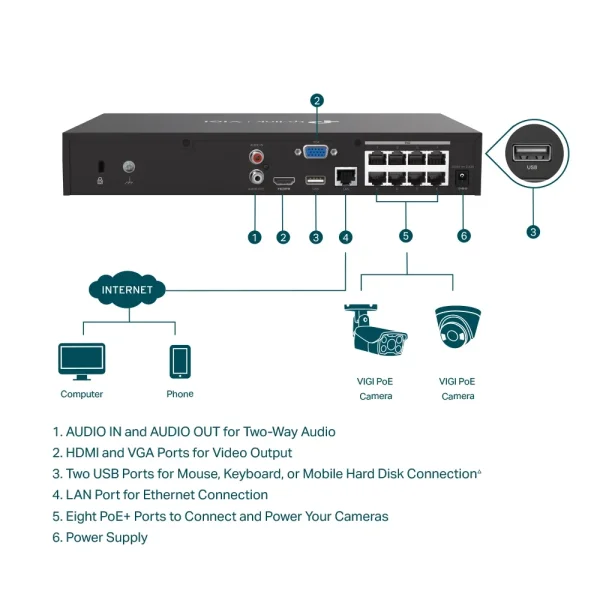

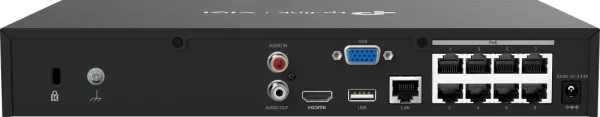

Anschlüsse und Schnittstellen

Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 1
HDMI-Ausgang Ja
Anzahl HDMI-Anschlüsse 1
VGA (D-Sub)-Ausgangsanschlüsse 1
Anzahl USB 2.0 Anschlüsse 2
Audio-RCA-Eingänge 1
Audio-RCA-Ausgänge 1
Unterstützte Netzwerkprotokolle TCP/IP, DHCP, DNS, NTP, UPnP

Merkmale

LED-Anzeigen Ja
Produktfarbe Schwarz

Energie

Stromverbrauch (Standardbetrieb) 4,82 W
Ausgangsstrom 2,43 A
Ausgangsspannung 53.5 V
Gesamtleistung Power over Ethernet (PoE) 119 W

Betriebsbedingungen

Betriebstemperatur -10 - 55 °C

Gewicht und Abmessungen

Breite 294 mm
Tiefe 180 mm
Höhe 44 mm
Verpackungsbreite 250 mm
Verpackungstiefe 400 mm
Verpackungshöhe 80 mm
Paketgewicht 2,1 kg

Specs: Icecat.biz

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
380,02 €
inkl. USt: 452,22 €
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
7 Stück verfügbar
Lieferzeit: ca. 3 Tage
