TP-Link - 16 Channel Network Video Recorder - VIGI NVR2016H-16MP-4TB
Klicken zum Vergrößern
TP-Link

TP-Link - 16 Channel Network Video Recorder - VIGI NVR2016H-16MP-4TB

EAN/GTIN4895252507195
Hersteller-Nr.VIGI NVR2016H-16MP-4TB(UN)
HerstellerTP-Link

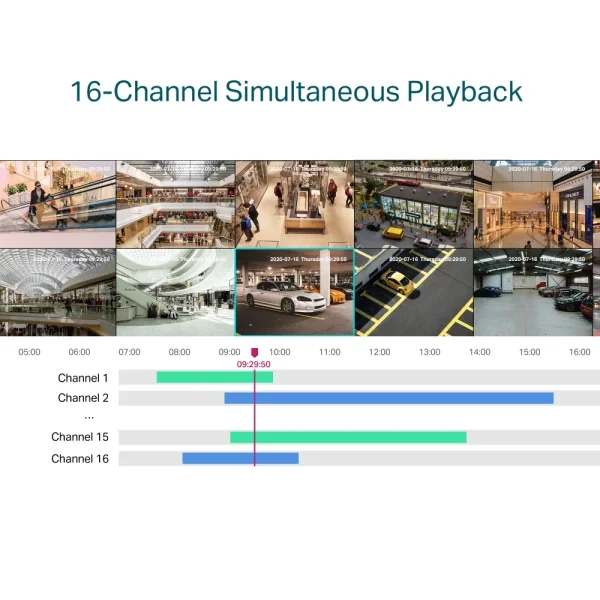

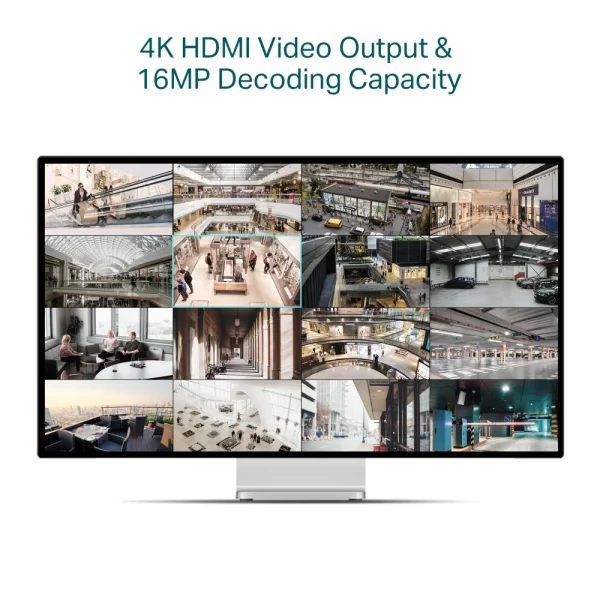

VIGI 16 Channel PoE+ Network Video Recorder 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time. 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡ 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space. ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Auto Initialize for Quick Configuration: Just click " Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time. 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access. Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are. Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Leistungen

Video-Eingangskanäle 16 Kanäle
Anzahl der gleichzeitig abgespielten Kanäle 16 Kanäle
Videoaufnahme-Modi 720p, 1080p, 2160p
Maximale Auflösung 3840 x 2160 Pixel
Unterstütze Auflösung 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video-Bewegungsmelder Ja
Videoverlust-Erkennung Ja
Mehrfachbildschirm Ja
Unterstützte Audioformate G.711, G.711 μ-law, G.726
Unterstützte Videoformate H.264, H.264+, H.265, H.265+
Wiedergabemodi Schnelles Spiel, Vorwärts, Frame by Frame, Vollbild, Pause, Spielen, Rückwärts
Maximale Framerate 30 fps
Eingangsbandbreite 80 Mbit/s
Ausgangsbandbreite 60 Mbit/s

Wireless LAN Funktionen

WLAN Nein

Festplatte

Anzahl der installierten HDDs 1
HDD Kapazität 4 TB
Maximale unterstützte Anzahl der HDD 2
Insgesamt installierte Speicherkapazität 4 TB
Max. Speicherkapazität 32000 TB
HDD Schnittstelle SATA

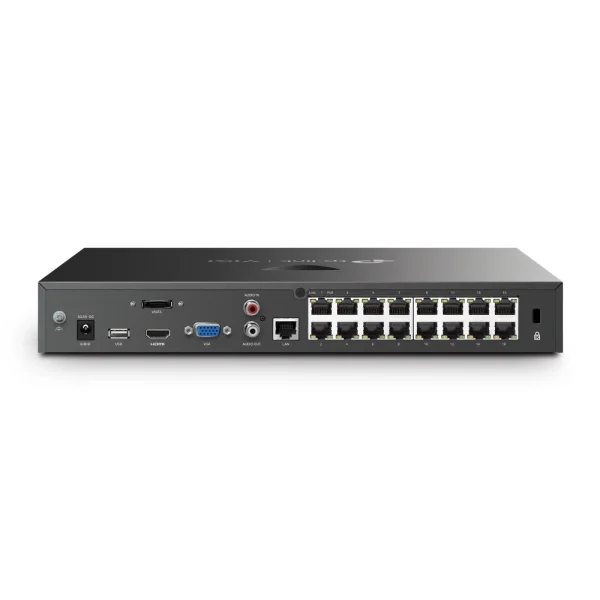

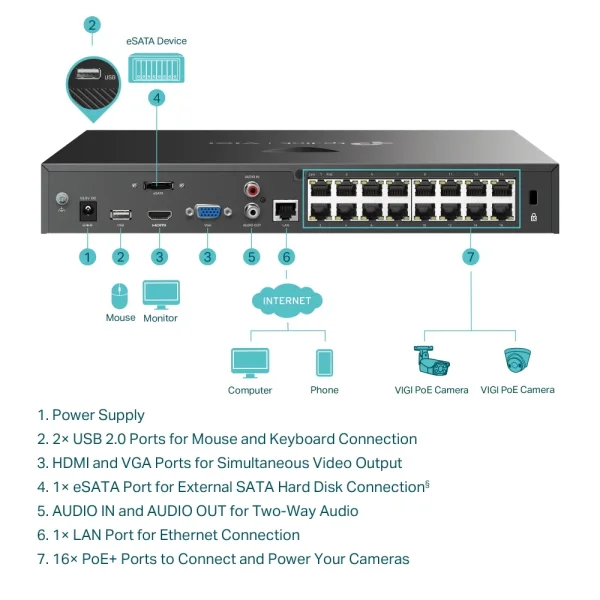

Anschlüsse und Schnittstellen

Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 1
Power over Ethernet (PoE) Ja
Ethernet LAN Datentransferraten 10,100,1000 Mbit/s
Anzahl Power over Ethernet (PoE) Anschlüsse 16
Anzahl HDMI-Anschlüsse 1
VGA (D-Sub)-Ausgangsanschlüsse 1
Anzahl USB 2.0 Anschlüsse 2
Audio-RCA-Eingänge 1
Audio-RCA-Ausgänge 1
Anzahl eSATA-Anschlüsse 1
eSATA Ja
Gleichstrom-Anschluss (DC) Ja
Netzstandard IEEE 802.3af, IEEE 802.3at

Merkmale

Reset-Knopf Ja
Produktfarbe Schwarz

Energie

Stromverbrauch (max.) 40 W
Stromverbrauch (Standardbetrieb) 6,2 W
Power over Ethernet (PoE) Leistung pro Anschluss 30 W
Gesamtleistung Power over Ethernet (PoE) 140 W

Systemanforderung

Unterstützte mobile Betriebssysteme Android, iOS
Unterstützter Browser Chrome (57+), Firefox (52+), Edge (91+)

Betriebsbedingungen

Betriebstemperatur -10 - 55 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Temperaturbereich bei Lagerung -40 - 70 °C
Luftfeuchtigkeit bei Lagerung 10 - 90%

Technische Details

Konformitätsbescheinigungen BSMI, CE, EAC, Eidgenössische Kommunikationskommission (FCC), Industry Canada (IC), RCM, UKCA, VCCI

Gewicht und Abmessungen

Breite 330 mm
Tiefe 285 mm
Höhe 45 mm
Gewicht 2,1 kg
Paketgewicht 4,1 kg

Specs: Icecat.biz

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
1.231,52 €
inkl. USt: 1.465,51 €
Versandkostenfrei
1 Stück verfügbar
Lieferzeit: ca. 3 Tage
