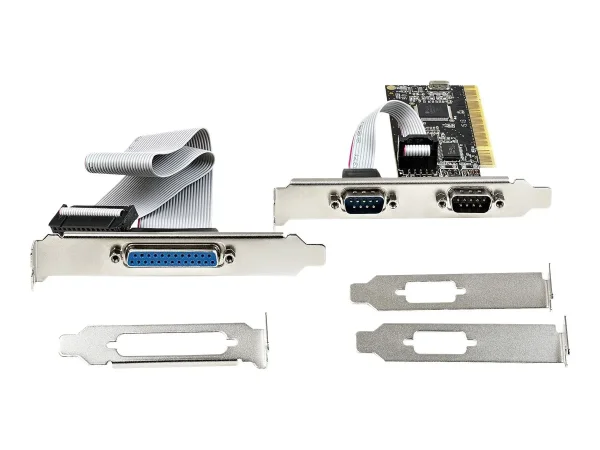

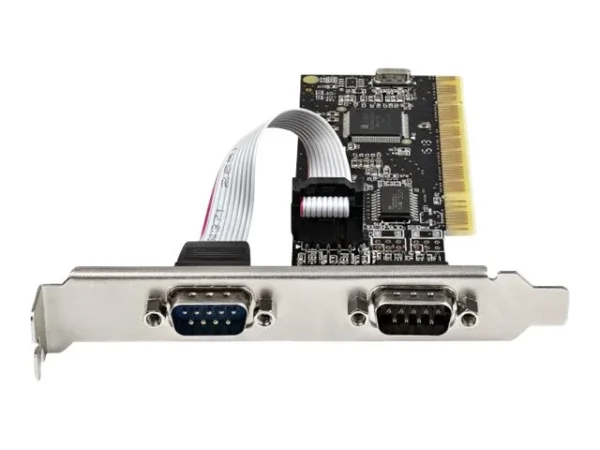

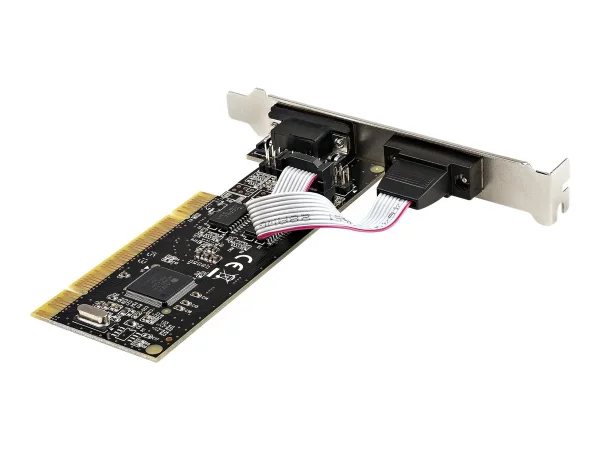

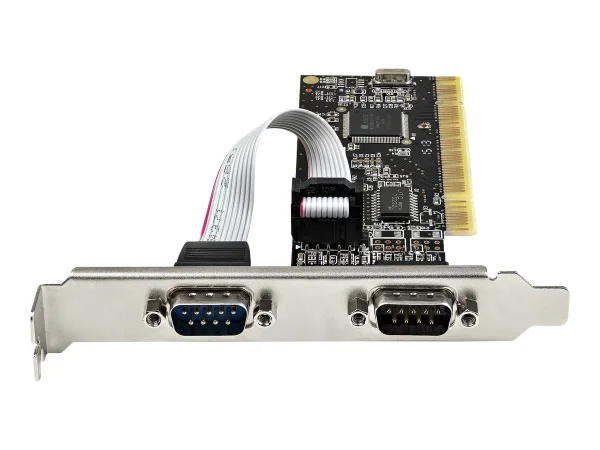

STARTECH RS232 PCI Karte - 2x Serial
STARTECH.COM RS232 PCI Karte - PCI auf 2 Serielle Port-Karte - PCI 2-Port DB9 Serielle Controller-Karte RS232
| EAN/GTIN | 0065030891301 |
| Hersteller-Nr. | PCI2S1P2 |
| Hersteller | STARTECH.COM |
| Herkunftsland | China |
| Zolltarifnr. | 84718000 |
| Garantie | 360 Monate |
Anschlüsse und Schnittstellen
| Hostschnittstelle | PCI/PCI-X |
| Ausgangsschnittstelle | Seriell |
| Formfaktor der Erweiterungskarte | Full-height / Low-profile |
| Anzahl serielle Anschlüsse | 2 |
| Serielle Schnittstelle | RS-232 |
Design
| Eingebaut | Ja |
| Produktfarbe | Schwarz |
Merkmale
| Chipsatz | Asix - MCS9865 |
| Datenübertragungsrate (max) | 0,0015 Gbit/s |
| Baudrate | 115,2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Datenbits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Eben, Markierung, Nein, Ungerade, Leerzeichen |
| Flusskontrolle Typ | Nein, RTS/CTS, XON/XOFF |
Betriebsbedingungen
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -20 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
Systemanforderung
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Unterstützte Linux-Betriebssysteme | Ja |
| Unterstützte Server-Betriebssysteme | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technische Details
| Konformitätsbescheinigungen | CE, RoHS |
Gewicht und Abmessungen
| Breite | 21,6 mm |
| Tiefe | 134 mm |
| Höhe | 120 mm |
| Gewicht | 141 g |
Specs: Icecat.biz
| Länge | 17,50 cm |
| Breite | 14,00 cm |
| Höhe | 3,00 cm |
| Gewicht | 0,19 kg |
