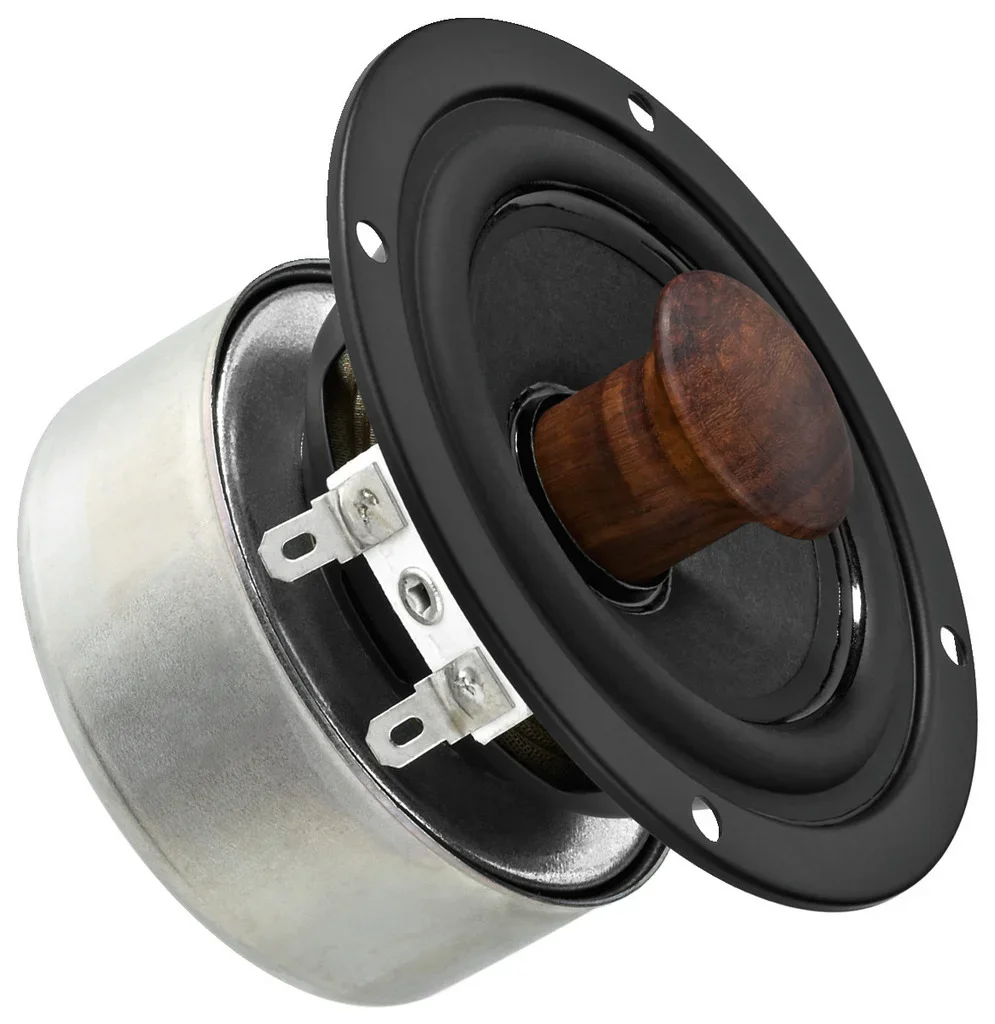

SPX-32M

EAN/GTIN	4007754217018
Hersteller-Nr.	SPX-32M
Hersteller	Monacor

Hi-Fi-Breitbandlautsprecher, 20 W, 8 Ω

Sehr gute Klangqualität
Hochwertige Papiermembran
Phaseplug aus Holz zur Optimierung des Abstrahlverhaltens
Hinterlüftete Zentrierspinne
Geschirmtes Magnetsystem
Einsatz in Kleinlautsprechern oder Satellitensystemen
Ideal für den Einsatz in FAST-Lautsprechern (Fullrange and Subwoofer Technology)

Hobby HiFi 03/2012 „Audiophile Gene dank Papiermembran und Phase Plug aus Massivholz.“

Technische Daten

Impedanz (Z)	8 Ω
Übertragungstechnik	Kabel

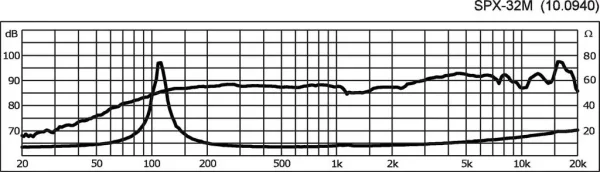

Frequenzbereich	f3-22000 Hz
Resonanzfrequenz (fs)	110 Hz
Nennbelastbarkeit (RMS)	20 W
Musikbelastbarkeit (MAX)	40 W
Kennschalldruck	88 dB/W/m
Nachgiebigkeit (Cms)	1,11 mm/N
Bewegte Masse (Mms)	1,7 g
Mechanische Güte (Qms)	7,66
Elektrische Güte (Qes)	0,60
Gesamtgüte (Qts)	0,56
Äquivalentvolumen (Vas)	1,6 l
Gleichstromwiderst. (Re)	6,6 Ω
Kraftfaktor (BxL)	3,69 Tm
Schwingspulenind. (Le)	0,18 mH
Schwingspulendurchm.	Ø 20 mm
Schwingspulenträger	Kapton
Lineare Auslenkung (XMAX)	± 1,1 mm
Eff. Membranfläche (Sd)	32 cm2
Magnetgewicht	99 g
Magnetdurchmesser	Ø 68 mm

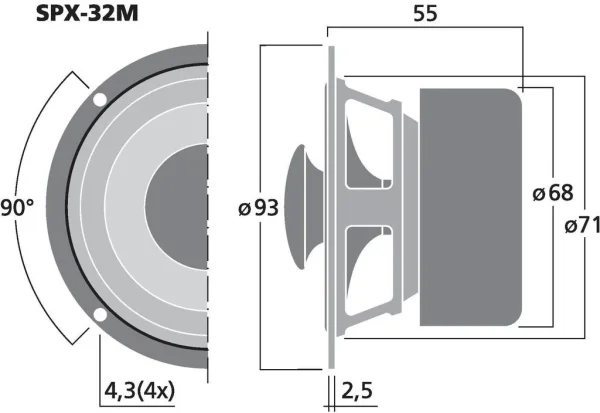

Einbauöffnung	Ø 71 mm
Einbautiefe	52,5 mm
Abmessungen	Ø 93 mm x 55 mm
Außendurchmesser	Ø 93 mm
Breite	Ø 93 mm
Höhe	Ø 93 mm
Tiefe	55 mm
Farbe	Schwarz/Silber
Zul. Einsatztemperatur	0-40 °C
Gewicht	0,498 kg
Verpackungseinheit	1
Lautsprechertyp	3"

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

16,80 €

inkl. USt: 19,99 €

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

37 Stück verfügbar

Lieferzeit: ca. 3 Tage
