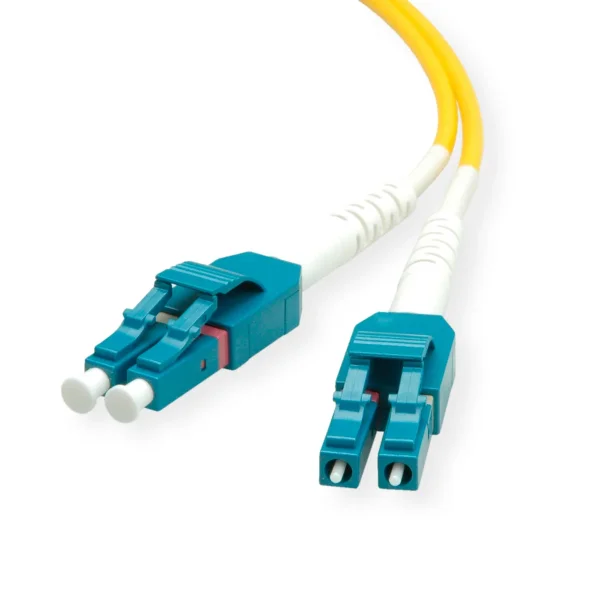

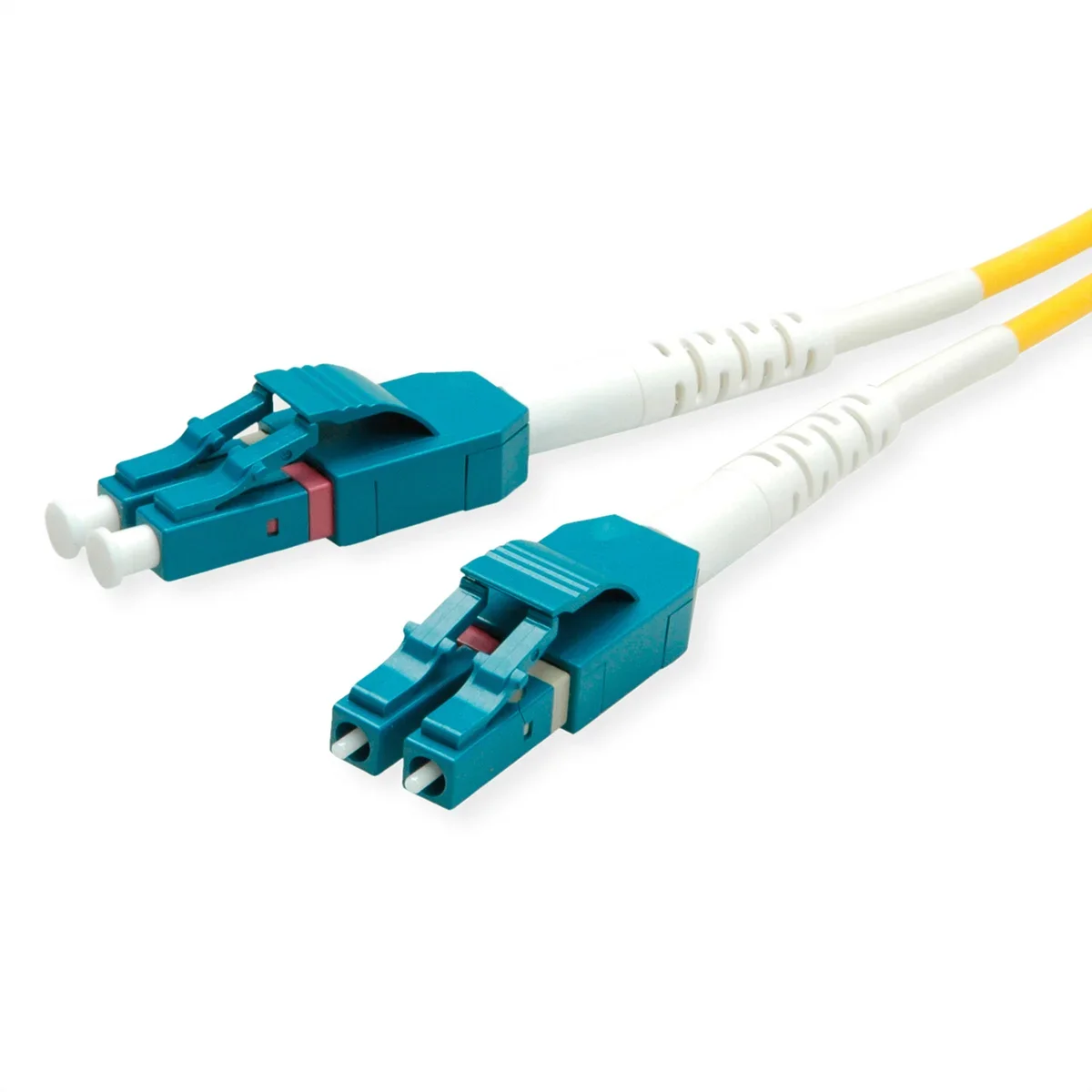

ROLINE LWL-Kabel Duplex, Single Mode 9/125µm OS2, LC/LC, gelb, 1 m
ROLINE LWL-Kabel, Single Mode 9/125, OS2 LC/LC, gelb, 1m
| Hersteller-Nr. | 21.15.8781 |
| Hersteller | ROLINE |
ROLINE LSOH LWL-Patchkabel mit Single Mode-Fasern in OS2-Qualität
- Kabelmantel aus halogenfreiem, raucharmem und flammwidrigem Material
- Konfektioniert mit hochwertigen Steckern mit Keramik-Ferrule
- Duplex-Kabel in Vollader
- Hohe Zugfestigkeit durch Aramid-Fasern
Spezifikationen
| Hersteller | ROLINE |
|---|---|
| Produktgruppe | Fiber Optic Kabel |
| Produkttyp | LWL-Patchkabel OS2 |
| Farbe | gelb |
| Länge | 1 m |
| Anzahl Fasern | 2 |
| Kabeltyp | Duplexkabel |
| Aussenkabel | nein |
| Faserquerschnitt | Singlemode 9/125µm OS2 |
| Anschlüsse | LC / LC |
| Seite 1 Typ des Anschlusses | LC |
| Stecker Seite 1 Ferrule | Keramik |
| Seite 2 Typ des Anschlusses | LC |
| Stecker Seite 2 Ferrule | Keramik |
| Min. Biegeradius, statisch | 30 mm |
| Min. Biegeradius, dynamisch | 60 mm |
| Farbe (Kabel) | gelb |
| Aramid Zugentlastung | ja |
| Gekreuzt | ja |
| Aussen-Ø Kabel | 3,0 mm |
| Kabel LSOH | ja |
| Flammwidrig nach IEC 60332-1-2 | ja |
| Raucharm nach EN IEC 61034-2 | ja |
| Halogenfrei nach EN IEC 60754-2 | ja |
| Max. Einfügungsdämpfung | 0.3 dB |
| Min. Rückflussdämpfung | 50 dB |
| Gewicht | 14.9 g |
| Verpackungshöhe | 10 mm |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 170 mm |
| Paketgewicht | 0.045 kg |
Keine Maßangaben verfügbar.
