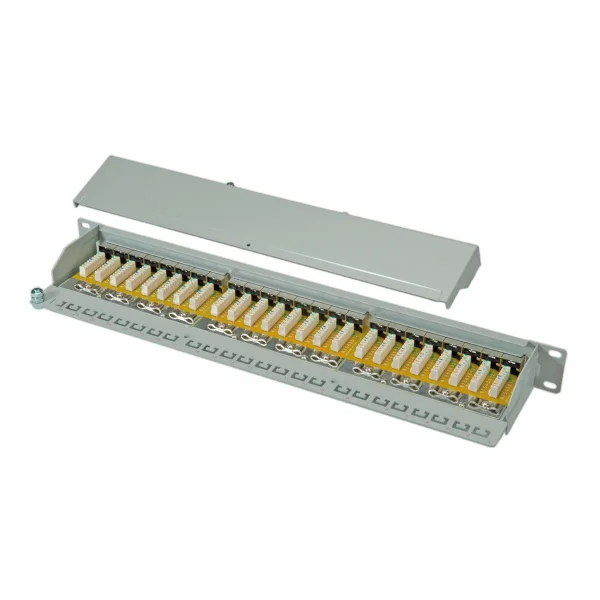

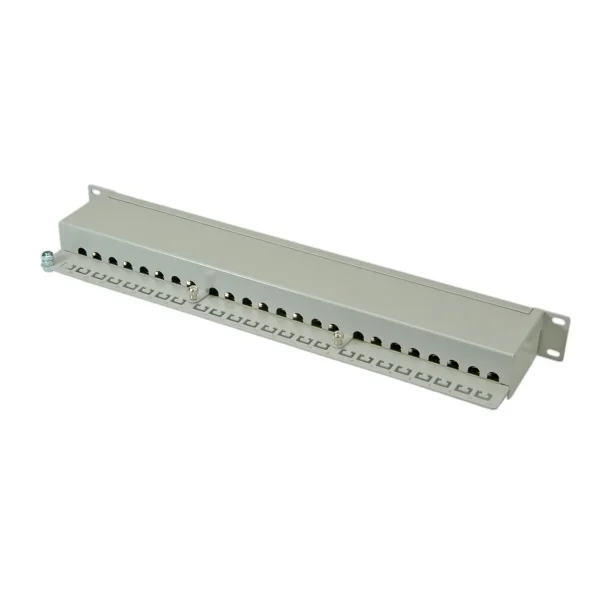

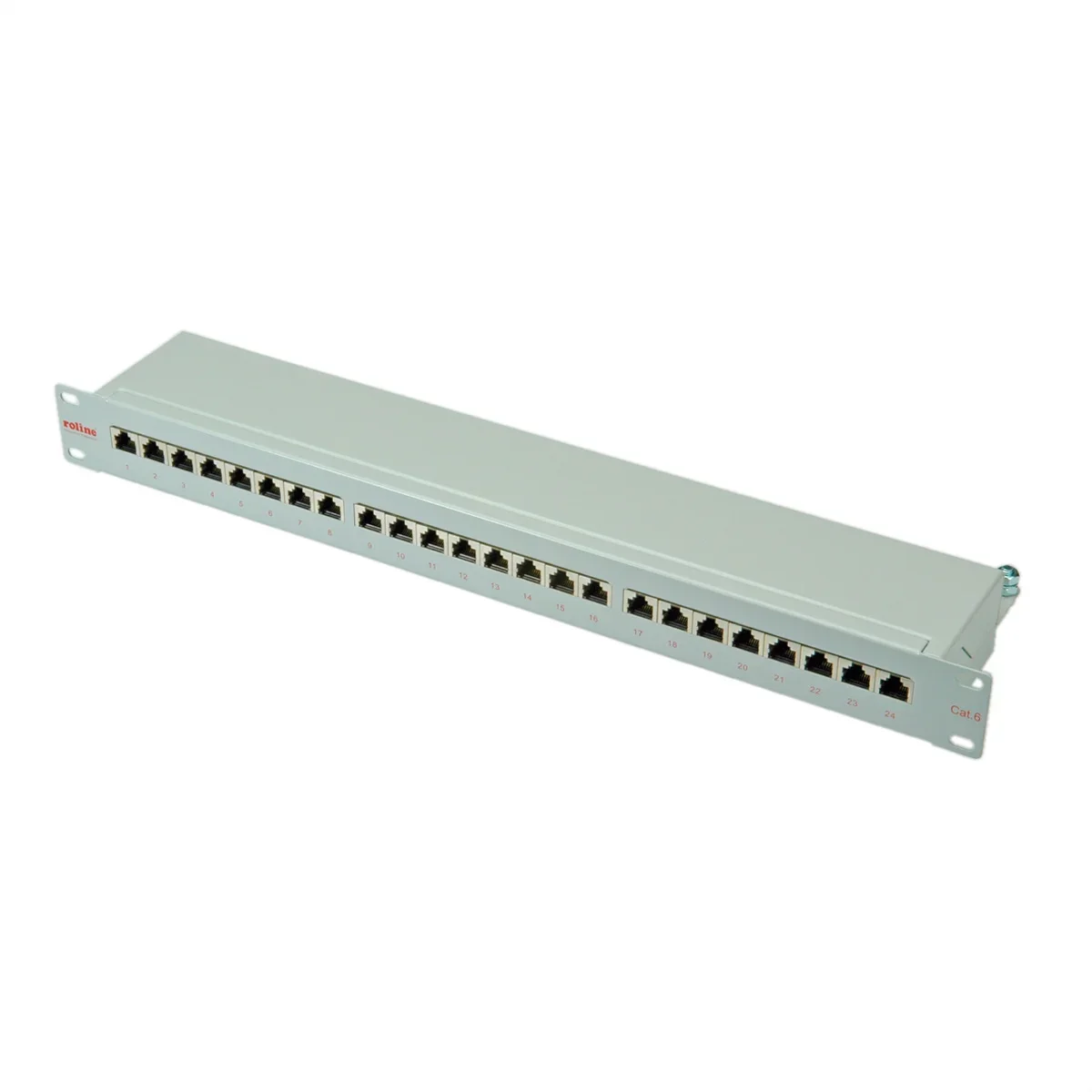

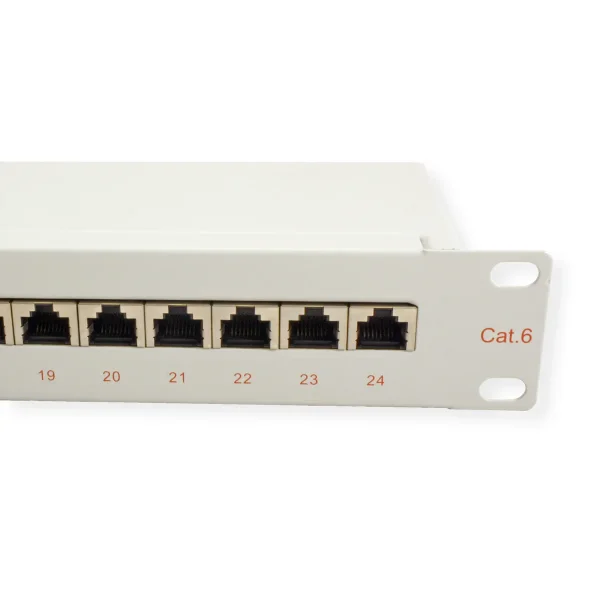

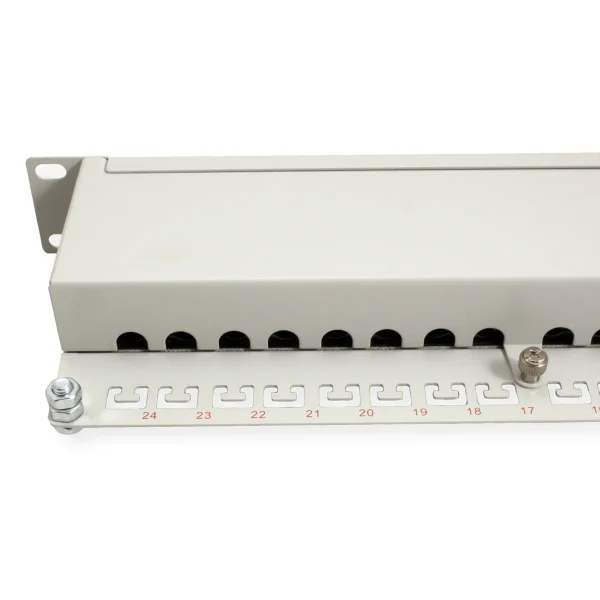

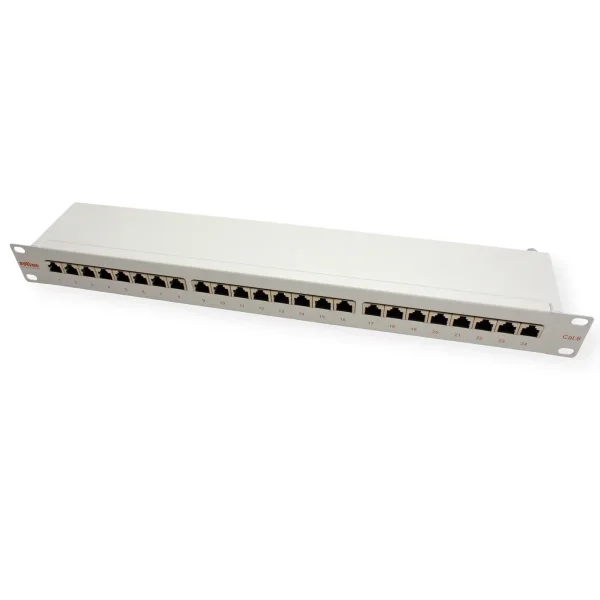

ROLINE Cat.6 (Class E) 19-Zoll-Patchpanel, 24P, geschirmt, grau
ROLINE 19"-Patchpanel Kat6/Kl.E, 24 Ports, geschirmt, lichtgrau
| Hersteller-Nr. | 26.11.0351 |
| Hersteller | ROLINE |
ROLINE Verteilerfeld für Netzwerkkabel zum Einbau in 19-Zoll Schränke
- Die ROLINE Kat. 6 / Class E 19"-Patchpanel genügen den übertragungstechnischen Eigenschaften eines Kat. 6 / Class E Permanent Links und sind ideal für den Einsatz in GigaBit Ethernet Netzwerken

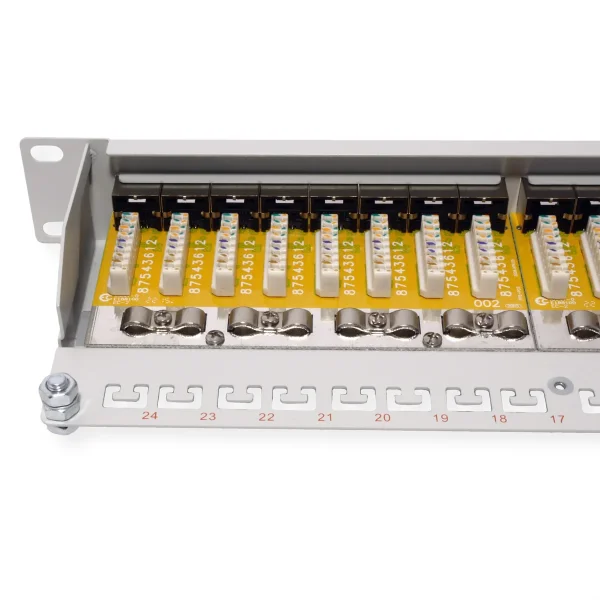

- Der rückseitige Kabelanschluss wird über LSA-Anschlusstechnik realisiert
- Auf LSA-Leisten aufgedruckte Farbcodierung nach EIA / TIA 568
- Gehäuse und Abdeckhaube in Stahlblech
- Wir empfehlen für den Aufbau einer strukturierten Verkabelung folgende Komponenten zu verwenden:
25.16.8392/25.16.8492 ROLINE Kat. 6 / Class E Aufputzdose/Unterputzdose
26.11.0351/26.11.0361 ROLINE Kat. 6 / Class E 19" Patchpanel grau/schwarz
21.15.0835 ROLINE S/FTP Patchkabel mit RJ-45 Stecker
Diese Produktkombination wurde bei der GHMT AG, einem akkreditierten Prüflabor, nach Klasse E im Channel von 100m gemessen. (Zertifikat Nr. z2364b-10-D bzw. z2365b-10-D)
Spezifikationen
| Hersteller | ROLINE |
|---|---|
| Produktgruppe | Anschlusstechnik TP |
| Produkttyp | Patchpanel Cat.6 / Class E |
| Farbe | grau |
| Schirmungstyp | geschirmt |
| Übertragungsqualität | Cat6 / Class E |
| Schranksystem | 19"-Technik |
| Anzahl Ports | 24 |
| Anschluss Verlegekabel | Krone LSAplus |
| Belegung | EIA/TIA 568A & 568B |
| modularer Aufbau | nein |
| Material (Gehäuse) | Stahlblech |
| Schirmkontaktierung | ja |
| gesonderte Zugentlastung | ja |
| Steckrichtung | gerade |
| Höheneinheiten | 1 HE |
| Höhe | 44 mm |
| Breite | 482.6 mm |
| Tiefe | 109 mm |
| Gewicht | 1508.4 g |
| Verpackungshöhe | 70 mm |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 490 mm |
| Paketgewicht | 1.68 kg |
Keine Maßangaben verfügbar.
