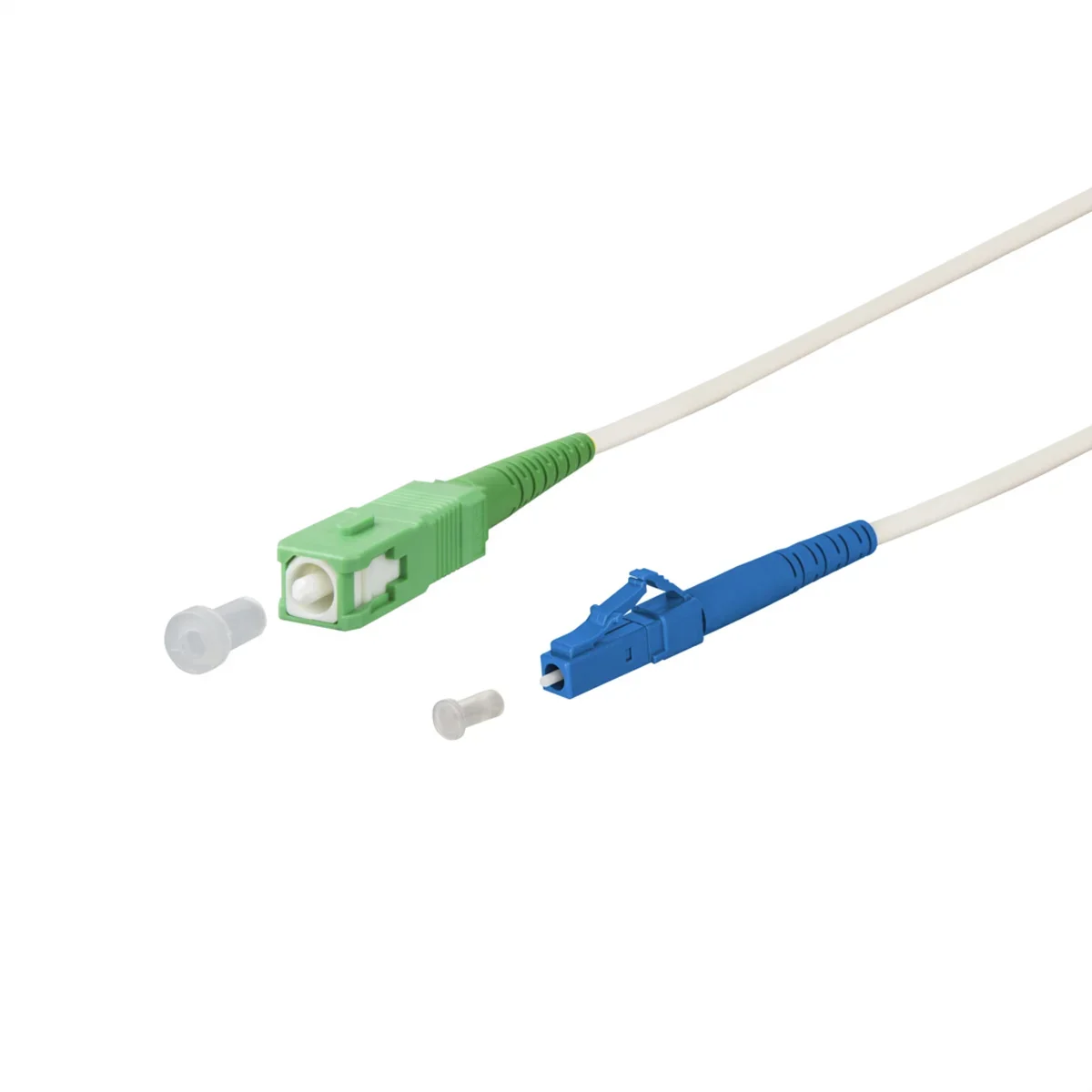

METZ CONNECT OpDAT Patchkabel, SC-S APC/LC-S OS2, 0,5 m
MetzConnect OpDAT Patchkabel SC-S APC/LC-S OS2, weiß, 0,5 m
| Hersteller-Nr. | 151P7EAJO05E |
| Hersteller | METZ CONNECT |
Simplex-Patchkabel I-V(ZN)H1 E9/125 OS2 zur Verbindung von der LWL-Anschlussdose an das Endgerät für FITH-Anwendungen
- Singlemodefaser OS2, E9/125 µm biegeunempfindlich gemäß IEC 60793-2-50 Typ B6_a und B6_b und G.657.A2 und B2 kompatibel zu G.652.D
- Außendurchmesser 2,8 mm
- Kabelmantel halogenfrei mit niedriger Rauchentwicklung LSHF-FR (Low smoke, halogen free, flame retardant)
- zu 100 % auf Einfüge- und Rückflussdämpfung geprüft
- alle Patchkabel sind mit einer Seriennummer versehen
Spezifikationen
| Hersteller | METZ CONNECT |
|---|---|
| Produktgruppe | Fiber Optic Kabel |
| Produkttyp | LWL-Patchkabel OS2 |
| Farbe | weiß |
| Länge | 0.5 m |
| Kabeltyp | Simplexkabel |
| Faserquerschnitt | Singlemode 9/125µm OS2 |
| Anschlüsse | SC APC / LC |
| Seite 1 Typ des Anschlusses | SC APC |
| Seite 2 Typ des Anschlusses | LC |
| Biegeunempfindlichkeit | ja |
| Farbe (Kabel) | weiß |
| Aramid Zugentlastung | ja |
| Aussen-Ø Kabel | 2,8 mm |
| Kabel LSOH | ja |
| Betriebstemperatur min. | -40 °C |
| Betriebstemperatur max. | 70 °C |
| Gewicht | 10 g |
| Verpackungshöhe | 40 mm |
| Verpackungsbreite | 190 mm |
| Verpackungstiefe | 190 mm |
| Paketgewicht | 0.014 kg |
Keine Maßangaben verfügbar.
