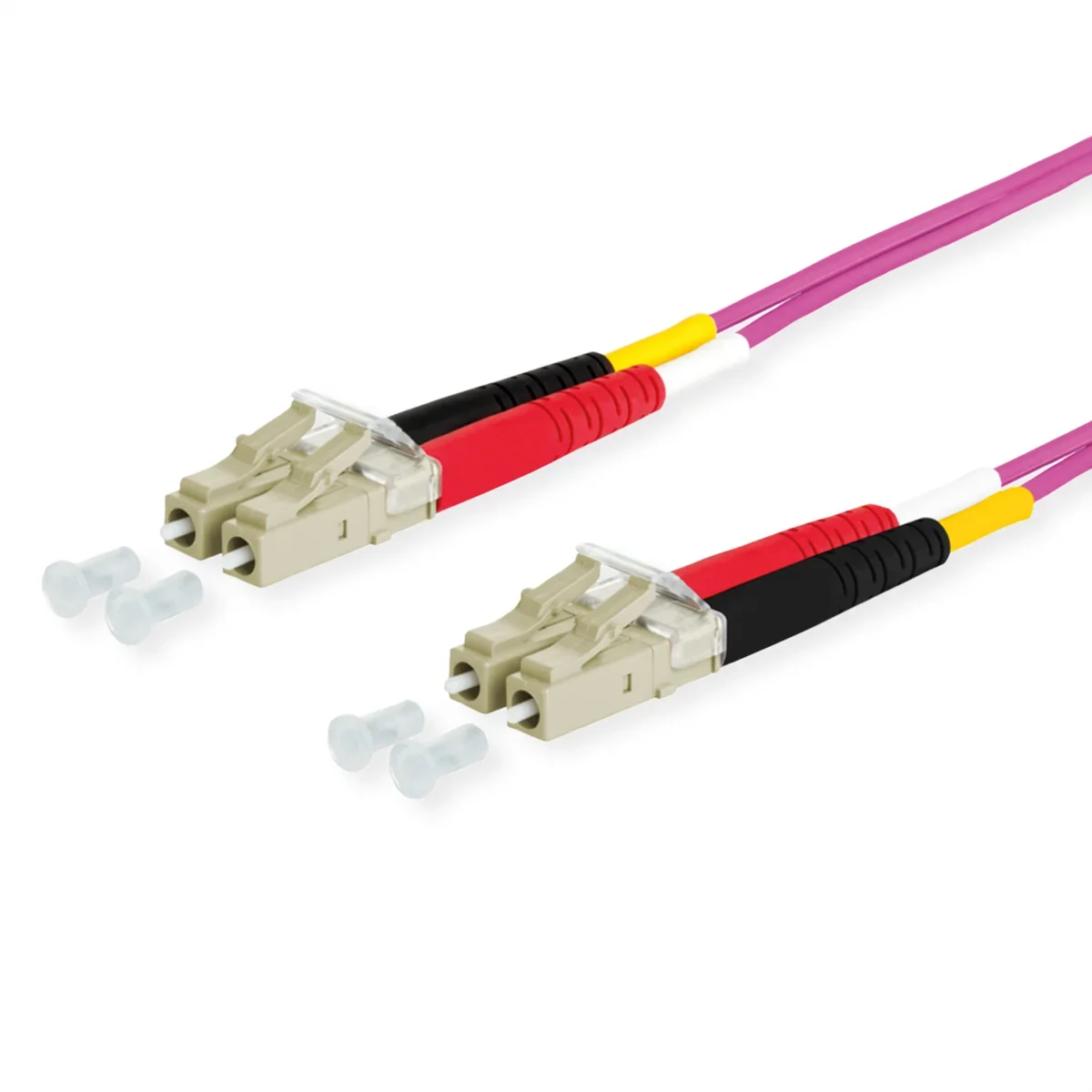

METZ CONNECT OpDAT Patchkabel LC-D/LC-D OM4, 1 m
MetzConnect OpDAT Patchkabel LC-D/LC-D OM4, 1,0 m
| Hersteller-Nr. | 151S1EOJO10E |
| Hersteller | METZ CONNECT |
LWL Patchkabel / OpDAT Patchkabel LC-D/LC-D OM4
- Multimode Patchkabel I-V(ZN)H 50/125 OM4
- Laser-optimierte biegeunempfindliche Multimodefaser OM4, G50/125 µm gemäß IEC 60793-2-10 Typ A1a.3
- Außendurchmesser 2,0 x 4,2 mm
- Mantelmaterial halogenfrei mit niedriger Rauchentwicklung LSHF-FR, flammwidrig

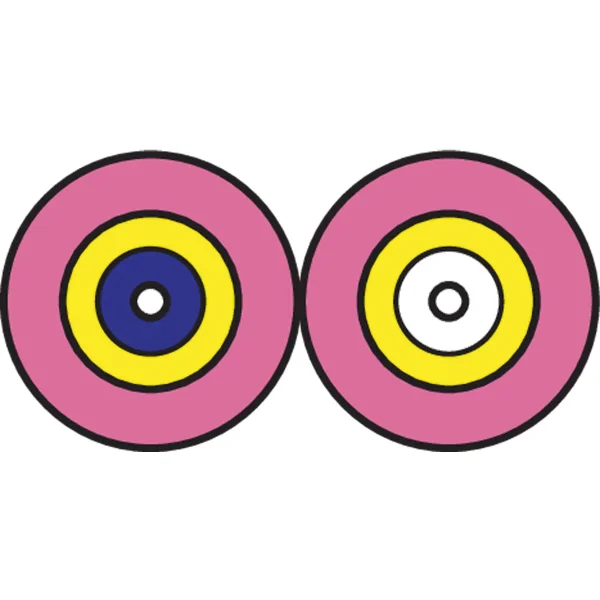

- Duplexkabel als Zipcord (Figur 8) mit zwei Volladern und Aramid als Zugentlastung
Spezifikationen
| Hersteller | METZ CONNECT |
|---|---|
| Produktgruppe | Fiber Optic Kabel |
| Produkttyp | LWL-Patchkabel OM4 |
| Farbe | violett |
| Länge | 1 m |
| Anzahl Fasern | 2 |
| Kabeltyp | Duplexkabel |
| Aussenkabel | nein |
| Faserquerschnitt | Multimode 50/125µm OM4 |
| Anschlüsse | LC / LC |
| Seite 1 Typ des Anschlusses | LC |
| Seite 2 Typ des Anschlusses | LC |
| Biegeradius | 15 mm |
| Biegeunempfindlichkeit | ja |
| Farbe (Kabel) | violett |
| Aramid Zugentlastung | ja |
| Gekreuzt | ja |
| Aussen-Ø Kabel | 2,0 x 4,2 mm |
| Kabel LSOH | ja |
| Flammwidrig nach IEC 60332-1-2 | ja |
| Raucharm nach EN IEC 61034-2 | ja |
| Halogenfrei nach EN IEC 60754-2 | ja |
| Max. Einfügungsdämpfung | 0.4 dB |
| Min. Rückflussdämpfung | 35 dB |
| Betriebstemperatur min. | -10 °C |
| Betriebstemperatur max. | 60 °C |
| Lagertemperatur min. | -10 °C |
| Lagertemperatur max. | 60 °C |
| Höhe | 4.5 cm |
| Breite | 20 cm |
| Tiefe | 20 cm |
| Gewicht | 11 g |
| Verpackungshöhe | 10 mm |
| Verpackungsbreite | 110 mm |
| Verpackungstiefe | 80 mm |
| Paketgewicht | 0.026 kg |
Keine Maßangaben verfügbar.
