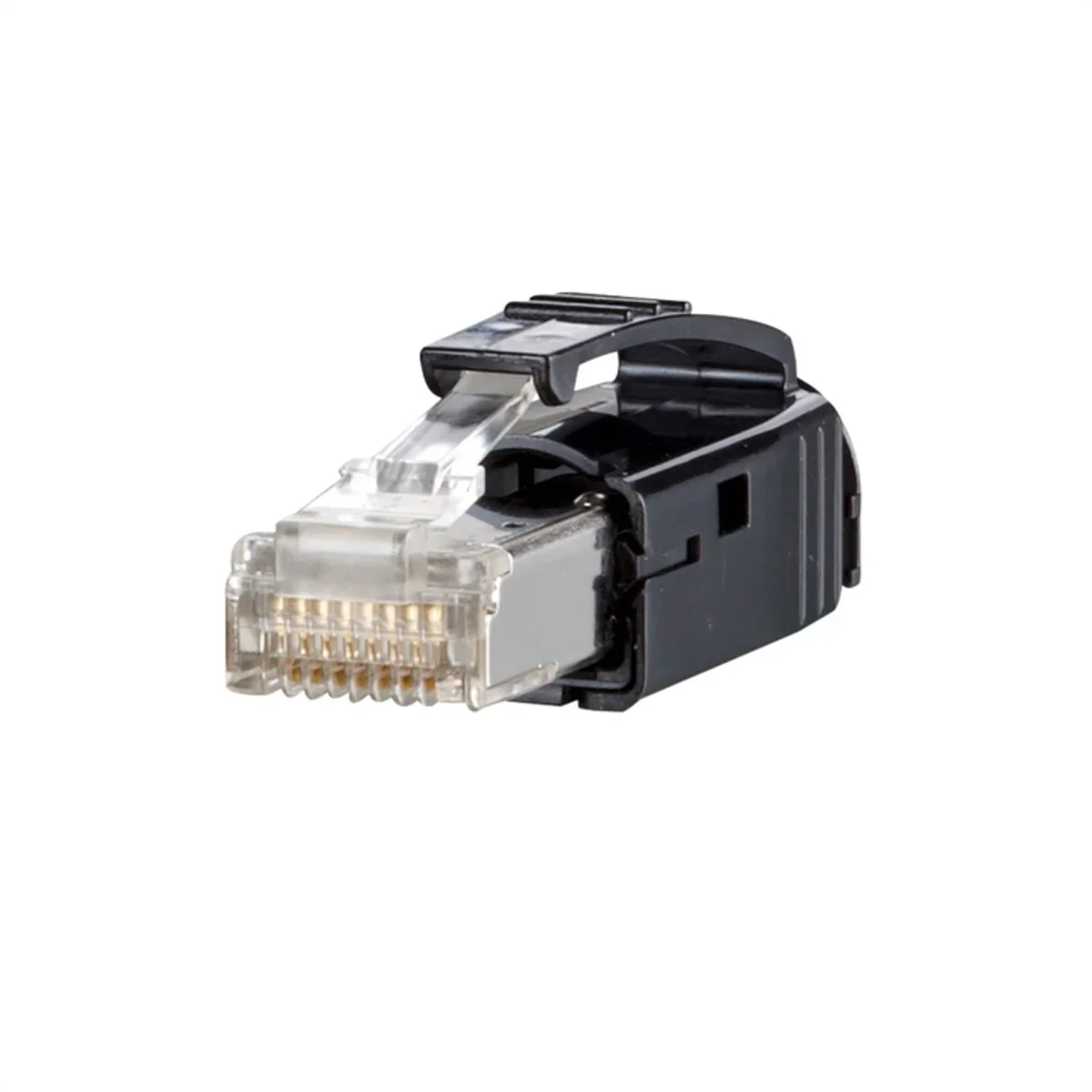

METZ CONNECT E-DAT Industry IP20 RJ45 plug black, mit Tülle schwarz
MetzConnect E-DAT Industry RJ45 Stecker Cat.6, schwarz
| Hersteller-Nr. | 1401505012-E |
| Hersteller | METZ CONNECT |
E-DAT Industry RJ45 Stecker schwarz Cat.6 Class EA
- multiportfähiger Cat.6 Klasse EA Stecker
- Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
- für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
- Anschluss AWG 27/7 - 24/7 und AWG 26/1 - 24/1 möglich
- Volldraht Cu-Leiterdurchmesser 0,36 - 0,51 mm
- Litze Cu-Leiterdurchmesser 0,46 - 0,61 mm
- Aderdurchmesser von 0,85 - 1,05 mm
- Kabelmantel bis 7,3 mm anschließbar
- Anschluss von Crimp-Kontakten und Schirm mit Crimpwerkzeug in einem Arbeitsgang möglich
- Variante mit und ohne Knickschutztülle
- farbige Knickschutztüllen optional erhältlich
- Trompete als Biegeschutz des Anschlusskabels
- kann als Prüfstecker an IP67 geschütze Buchsen der Variante 1, 4, 5, 6, und 14 eingesetzt werden
Spezifikationen
| Hersteller | METZ CONNECT |
|---|---|
| Produktgruppe | Anschlusstechnik TP |
| Produkttyp | Steckverbinder RJ-45 |
| Farbe | schwarz |
| Schirmungstyp | geschirmt |
| Übertragungsqualität | Cat6A / Class EA |
| Power over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Halogenfrei | ja |
| Betriebstemperatur min. | -40 °C |
| Betriebstemperatur max. | 70 °C |
| Höhe | 8.9 cm |
| Breite | 10.5 cm |
| Tiefe | 25 cm |
| Gewicht | 6 g |
| Verpackungshöhe | 30 mm |
| Verpackungsbreite | 80 mm |
| Verpackungstiefe | 90 mm |
| Paketgewicht | 0.038 kg |
Keine Maßangaben verfügbar.
