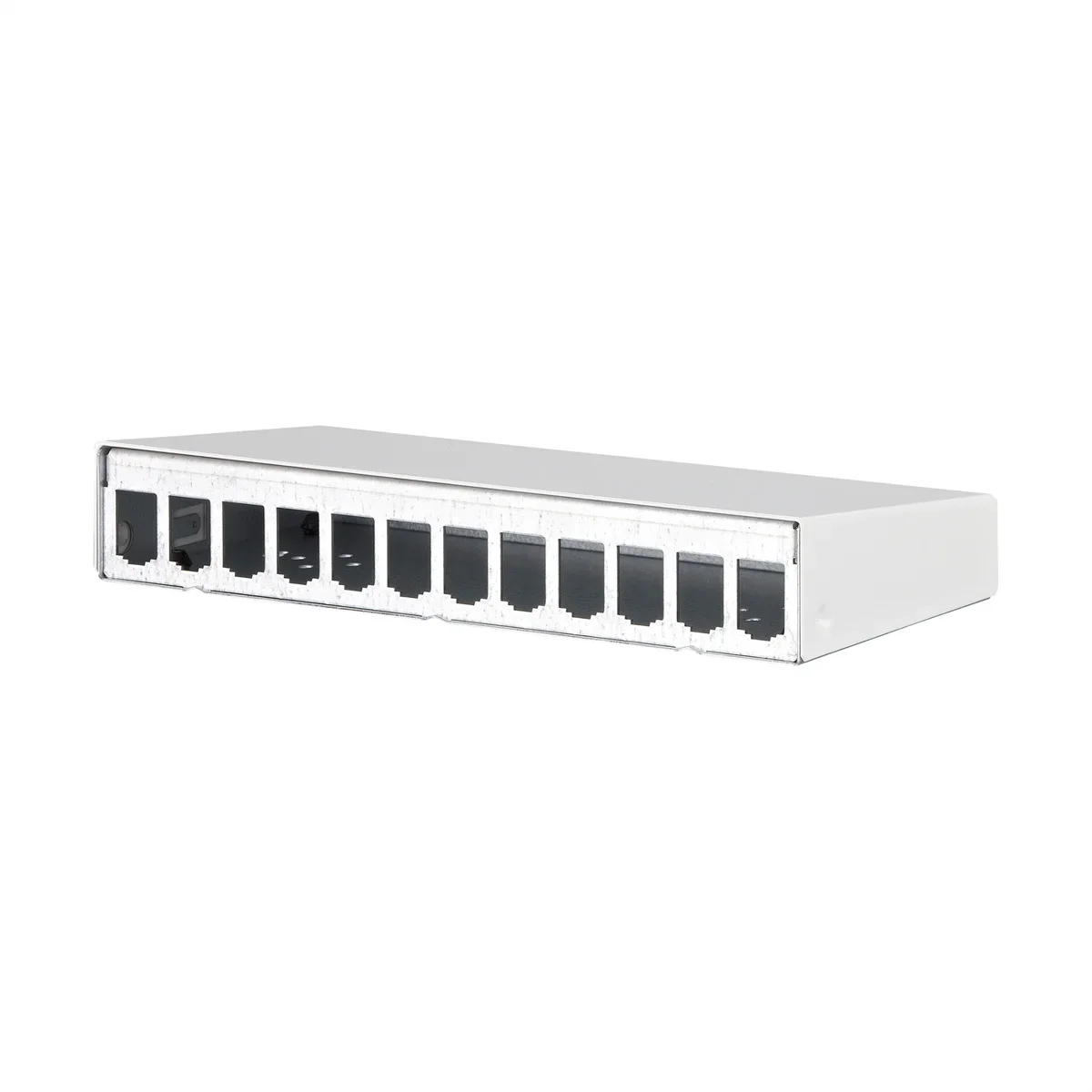

METZ CONNECT Aufputzgehäuse für 12 E-DAT Module
MetzConnect Modul AP-Gehäuse reinweiß RAL9010, für 12 Module, unbestückt
| Hersteller-Nr. | 130861-1202-E |
| Hersteller | METZ CONNECT |
Modulgehäuse Aufputz unbestückt zur individuellen Bestückung mit 12 Stück E-DAT Modulen
- Gehäuse aus Stahlblech (Oberteil reinweiß)
- Einfaches Aufsetzen und Abnehmen des Gehäuseoberteils durch schraubfreie Befestigung
- Potentialausgleich über Flachstecker möglich
- Zusätzliche Kabelzugentlastung am Gehäuseunterteil mit Kabelbinder
- passende Module: 26.11.0652
Spezifikationen
| Hersteller | METZ CONNECT |
|---|---|
| Produktgruppe | Anschlusstechnik TP |
| Produkttyp | Patchpanel |
| Farbe | silberfarben |
| Wandbefestigung | Aufputz |
| Anzahl Ports | 12 |
| Material (Gehäuse) | Stahlblech |

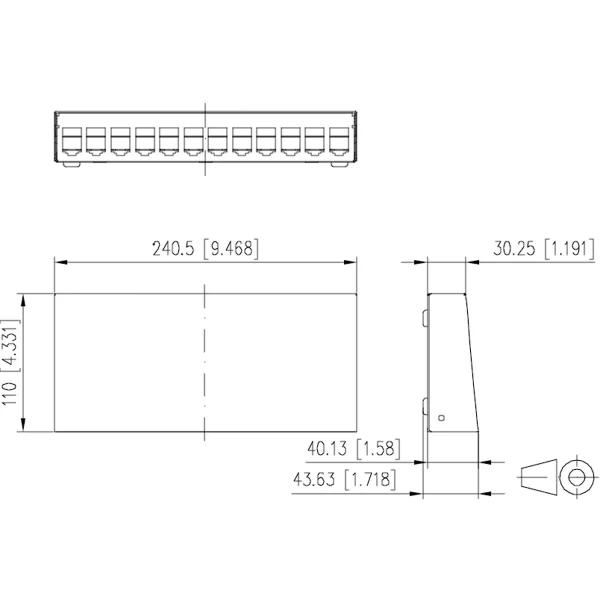

| Abmessungen (HxBxT) | 45 x 242 x 110 |
| Höhe | 45 mm |
| Breite | 242 mm |
| Tiefe | 110 mm |
| Gewicht | 558 g |
| Verpackungshöhe | 40 mm |
| Verpackungsbreite | 270 mm |
| Verpackungstiefe | 120 mm |
| Paketgewicht | 0.625 kg |
Keine Maßangaben verfügbar.
