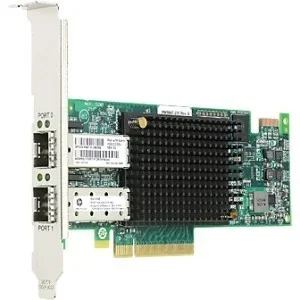

LENOVO ISG Emulex 16Gb Gen6 FC 2Port HBA
LENOVO ISG Emulex 16Gb Gen6 FC Dual-port HBA
| EAN/GTIN | 0889488417346 |
| Hersteller-Nr. | 01CV840 |
| Hersteller | LENOVO |
| Herkunftsland | China |
| Zolltarifnr. | 84732990 |
| Garantie | 12 Monate |
Keine ausführliche Beschreibung verfügbar.
Anschlüsse und Schnittstellen
| Übertragungstechnik | Kabelgebunden |
| Hostschnittstelle | PCIe |
| Schnittstelle | Faser |
| Anzahl Faseranschlüsse | 2 |
| Optischer Kabelverbinder | FC, SFP+ |
| PCI version | 3.0 |
Netzwerk
| Maximale Datenübertragungsrate | 16000 Mbit/s |
| Vollduplex | Ja |
| Web-basiertes Management | Ja |
| Maximaler Arbeitsabstand | 150 m |
Design
| Komponente für | Server |
| Produktfarbe | Schwarz, Grün, Silber |
| Eingebaut | Ja |
| Rack-Einbau | Ja |
| Rack-Kapazität | 2U |
| Hot-Swap | Ja |
| Hot-Plug-Unterstützung | Ja |
| LED-Anzeigen | Ja |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 10000000 h |
| Zertifizierung | AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition |
| Kompatible Produkte | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
Systemanforderung
| Unterstützte Linux-Betriebssysteme | RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0 |
| Unterstützung anderer Betriebsysteme | VMware vSphere ESXi |
| Unterstützte Server-Betriebssysteme | Windows Server 2012, Windows Server 2012 R2 |
Betriebsbedingungen
| Betriebstemperatur | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -20 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
Gewicht und Abmessungen
| Tiefe | 168 mm |
| Höhe | 69 mm |
Lieferumfang
| Montageblöcke enthalten | Ja |
Technische Details
| Konformitätsbescheinigungen | RoHS |
Sonstige Funktionen
| PCI-SIG* SR-IOV fähig | Ja |
Specs: Icecat.biz
| Länge | 24,50 cm |
| Breite | 15,00 cm |
| Höhe | 5,50 cm |
| Gewicht | 0,30 kg |
