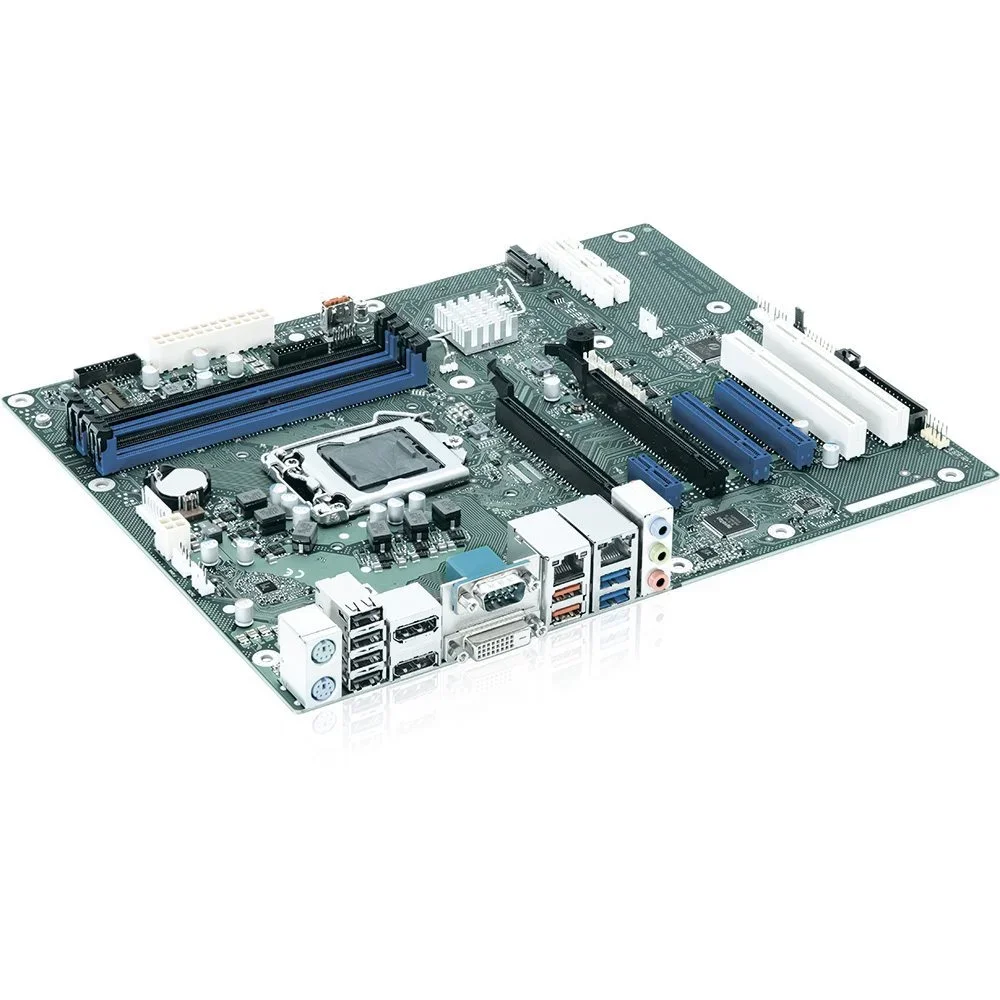

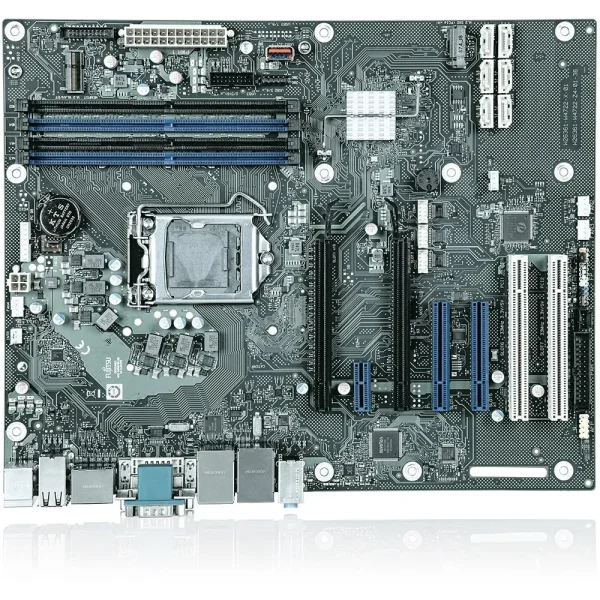

FTS D3646-S S1151v2 C246/DVI/2xPCI/2xLAN/ATX/24-7/vPro 24/7 ready. vPro Support. 2x GbE-LAN RJ45. COM
Klicken zum Vergrößern
Fujitsu Technology

FTS D3646-S S1151v2 C246/DVI/2xPCI/2xLAN/ATX/24-7/vPro 24/7 ready. vPro Support. 2x GbE-LAN RJ45. COM

Board Available up to 05/2026* | Socket LGA1151v2 for Intel CPU's (8th/ 9th Gen) | Xeon E-21xx, E-22xx, Core i3, i5, i7, i9 (max. 95W) | Chipsatz Intel® C246 Express Chipset | 4x DDR4 PC2666/2400/2133, UB, max. 64 GB* | Supports ECC (ECC for Xeon CPU only) | 6x Serial-ATA III (6Gbps), AHCI, RAID 0/1/5/10 | M.2 Key-M for PCIe-based NVMe SSD (PCIe x4 mode) | (Type 2242/2260/2280) | Slots: 1x PCIe 3.0 x16, 1x PCIe 3.0 x16 @ x4, | 1x PCIe 3.0 x1, 2x PCIe 3.0 x8 @x1 Lane | 2x PCI (32Bit, 33 MHz, Rev. 2.3) | Sound Realtek ALC671, 5.1 Multichannel, HD | LAN Intel i219LM & i210ATwith 10/100/1000 MBit/s | Conncetion rear: 2x PS/2, 4x USB 2.0, | 2x USB 3.2 Gen1, 2x USB 3.2 Gen2 (Type A), | 2x RJ-45, 2x DP*, 1x DVI-D*, 1x COM RS-232, 3x Audio I/O | Option: 3x COM RS-232, 1x LPT | *) Supports up to 3 displays simultaneously

Hersteller-Nr.D3646
HerstellerFujitsu Technology
Technische Details
Hersteller Fujitsu Technology
Anzahl der USB-Anschlüsse 6+4+2+1
Integriertes LAN Dual 10/100/1000
Anzahl der USB 3.2 Gen 1 (3.1 Gen 1)Anschlüsse 4,2,1
Formfaktor ATX

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
257,40 €
inkl. USt: 306,31 €
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Nicht verfügbar

Verwandte Produkte

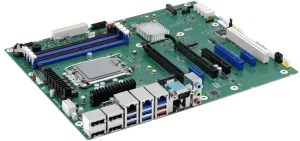

Kontron K3851-R S1700/R680E/DDR5/4xDP/3xLAN/1xPCI/ATX/24-7 Industrial Series available until 10/2030
