Dadc-144DT

EAN/GTIN	4007754264401
Hersteller-Nr.	DADC-144DT
Hersteller	Monacor

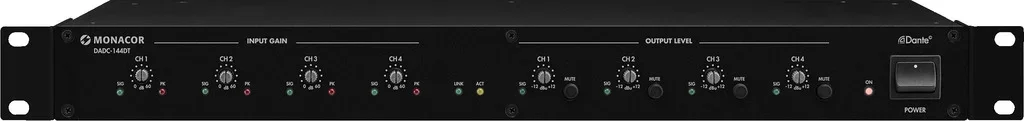

4-Kanal-Dante^®-Transceiver

4 analoge XLR-Audio-Eingänge
4 analoge XLR-Audio-Ausgänge
4-Kanal-Dante^®-Eingang/Ausgang (EtherCon/RJ45)
Pegel der analogen Ein- und Ausgänge über versenkte Potentiometer einzeln regelbar
48-V-Phantomspeisung pro Analog-Eingang zuschaltbar
Mute-Funktion pro Analog-Ausgang
Kombination der Dante^®-Quellen und Dante^®-Receiver per Software möglich
Encoding/Decoding: 16/24/32 Bit
Sample-Rates: 44,1/48/88,2/96 kHz
Frequenzbereich: 20-20000 Hz
LED-Anzeige für Signal, Peak, Network Link, Network Act und Power
Metallgehäuse
482-mm-Rackeinbau (19"), 1 HE

Das Markenzeichen Dante^® sowie die ggf. in diese Produkte integrierte Dante^®-Software wurden lizensiert von der Audinate Pty Ltd.

4-Kanal-Dante^®-Transceiver

Technische Daten

Art	4-Kanal-Dante®-Transceiver
Frequenzbereich	20-20000 Hz
Eingangssignal	max. 2,3 V
Eingangsempfindlicheit	5,7 mV-2,3 V
Verstärkung	0,2-5,2x
Phantomspeisung	48 V
Störabstand	> 90 dB
Klirrfaktor	< 0,005 %
Zul. Einsatztemperatur	0-40 °C
Stromversorgung	230 V/50 Hz/15 VA
Abmessungen	482 x 44,5 x 238 mm, 1 HE
Gewicht	2,9 kg
Eingänge	4 x XLR, sym.
Ausgänge	4 x XLR, sym.
Sonstiges	1 x EtherCon/RJ45
Abtastrate	44,1/48/88,2/96 kHz
Auflösung	16/24/32 Bit

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

530,99 €

inkl. USt: 631,88 €

Versandkostenfrei

94 Stück verfügbar

Lieferzeit: ca. 3 Tage
