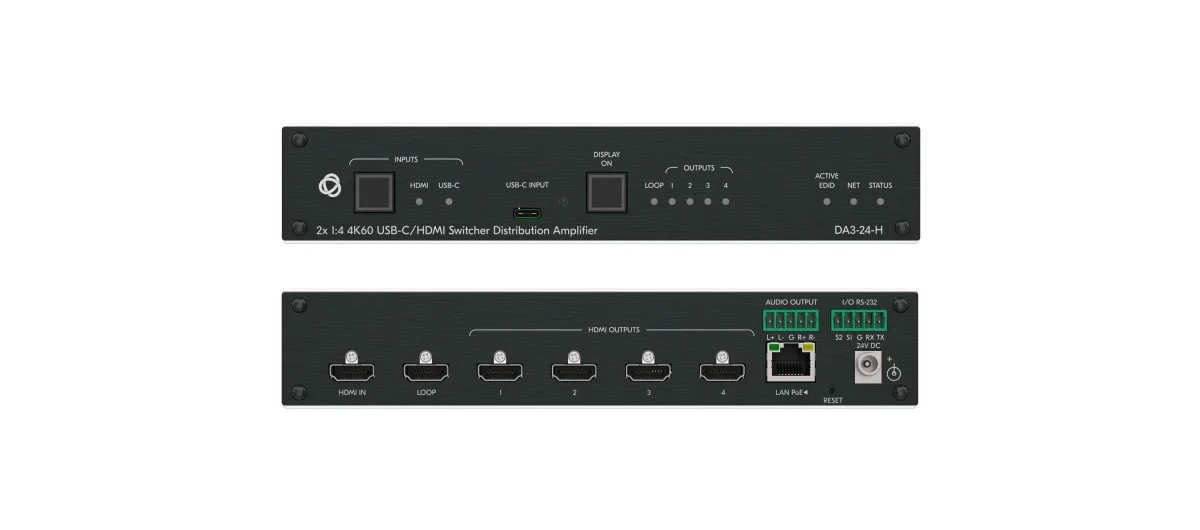

DA3-24-H – 2:4 4K HDR HDMI DA

DA3−24−H is a premium 2x1:4 switcher and distribution amplifier for up to 4K HDR, video signals that comply with HDCP 2.2 content protection standard. The unit switches between one of two inputs HDMI or USB−C, equalizes and re−clocks the selected signal and distributes it to four identical outputs.

• Max. Resolution — 4K@60Hz (4:4:4).
• Intelligent EDID Handling — Use connected display EDID or default EDID, with EDID lock and RGB–force options, to ensure proper operation of HDMI source and display systems.
• Smart Output Scaling — Automatically downscales 4K sources to 1080p for displays that do not support 4K, ensuring compatibility and optimal viewing on all connected screens.
• Force RGB — When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
• Selectable HDCP Authorization — Allows the user to control the appearance of an HDCP or non–HDCP input to the source to permit delivery of protection–free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non–HDCP mode.
• Sophisticated CEC mediator with flexible routing options.
• Analog audio output — de–embedded from the HDMI/USB–C input signal
• RS–232 port may be configured to control external devices
• Easy Installation — 1’ enclosure for over–ceiling mounting, or side–by–side rack mounting.
