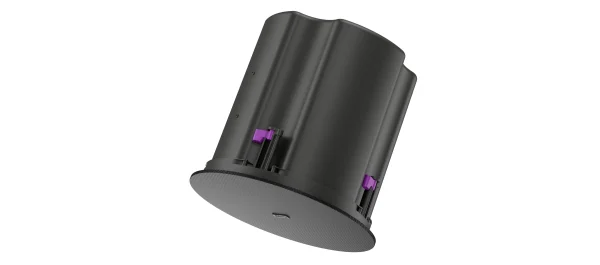

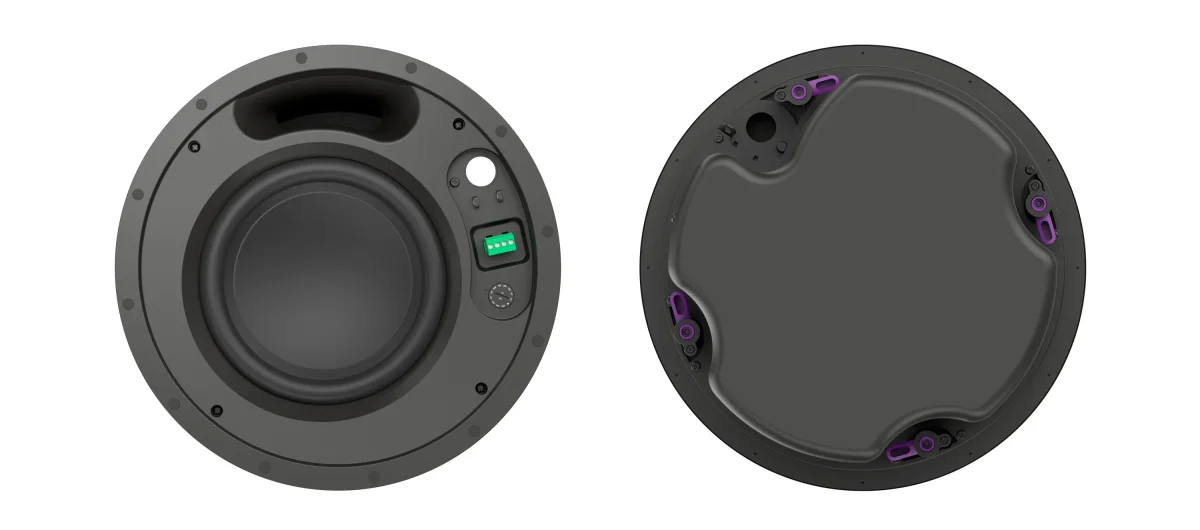

CL-8P-SUB – 8", Passive In–Ceiling Subwoofer

The CL−8P−SUB is an In−Ceiling Passive Subwoofer that enhances any space with deep, rich bass while seamlessly integrating into the ceiling. Designed for both low impedance (8Ω) and high impedance (70V/100V) systems, it offers implementation flexibility. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.

• Enhances the sound of every space
• Plenum rated UL2043 & UL1480A
• Low–impedance (8Ω) / high–impedance (70V/100V)
• Power ratings: 8W continuous / 120W peak
• Sensitivity (1W@1m, free field): 84dB SPL
• Maximum SPL (@1m): Continuous: 103dB SPL / Peak: 105dB SPL
• Industrial design: black & white bezel–less magnetic grills included in the box, front–access wiring
• Eco–friendly mono–material packaging
• Included in the Box — 1 speaker (single unit), 1 speaker box packed in a master box
  Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)

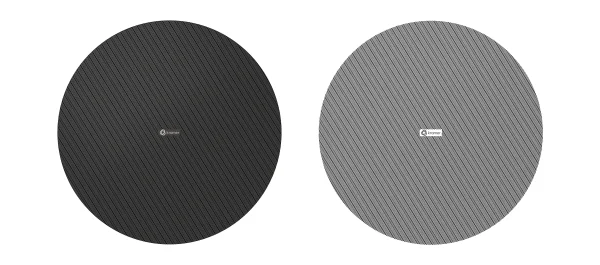

  2 magnetic grills (1 white and 1 black per speaker)
  4–pin pluggable Euroblock connector, 28–12AWG
  Cutout template
  Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
  Quick Start Guide
