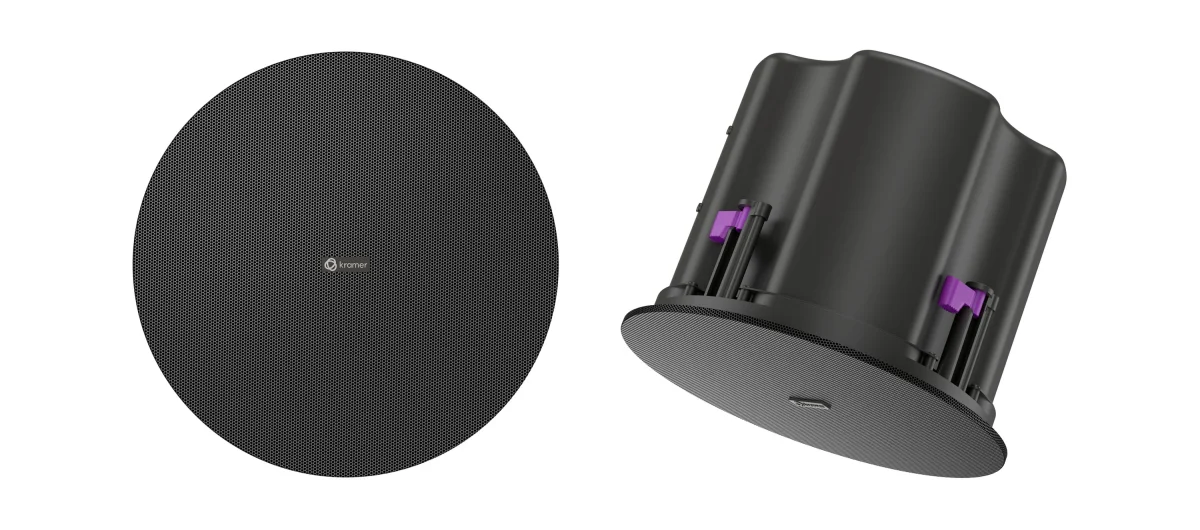

CL-6D – 6.5” PoE powered, Dante, in−ceiling speaker

Note: Download the Kramer Speaker Manager (.exe) and installation instructions from the Resources tab.

Kramer’s CL−6D is a premium 6.5” in−ceiling PoE−powered Dante speaker, engineered to deliver exceptional audio performance and effortless integration in modern commercial spaces. Optimized for both speech intelligibility and high−quality background music, the CL−6D is perfectly suited for meeting rooms, auditoriums, retail spaces, and hospitality environments.

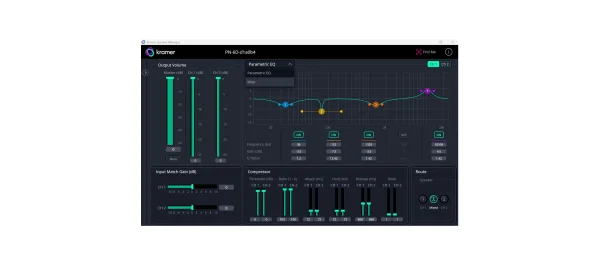

Equipped with a built−in amplifier, DSP, and mixer, the CL−6D supports two−channel mixing and advanced tuning capabilities including parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “Find Me” tone—easily configured through Kramer’s intuitive Speaker Utility software.
To streamline installation and servicing, the CL−6D features front−access wiring, a reset button, and is supplied with both black and white magnetic grilles to blend seamlessly into any ceiling. The CL−6D also supports remote management and control via Kramer Control or third−party systems using its robust API.

• Exceptional sound performance
• Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
• Supports PoE++/PoE+/PoE (auto–negotiate)
• Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
• Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
• Power handling: 10W continuous / 30W peak
• Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
  Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
• Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
  FCC+IC, BIS, RCM
  RoHS, REACH, WEEE
• Industrial design: — wall–mounted, tool–less installation, available in black & white colors, removable logo
• The CL–6D PoE–powered Dante in–ceiling speaker is a premium audio solution designed for professional networked audio installations. It delivers high–performance sound with excellent speech clarity and background music reproduction, making it ideal for meeting rooms, auditoriums, and commercial spaces where quality, flexibility, and clean ceiling integration are essential.
• Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
  Installation kit including C–ring, bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable (mounting rails (CSMR) are not included and should be purchased separately)

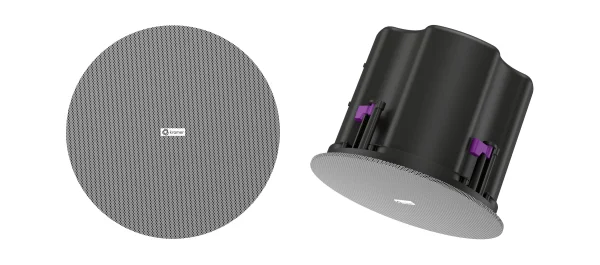

  2 magnetic grills (1 white and 1 black per speaker)
  Cutout template
  Quick Start Guide
