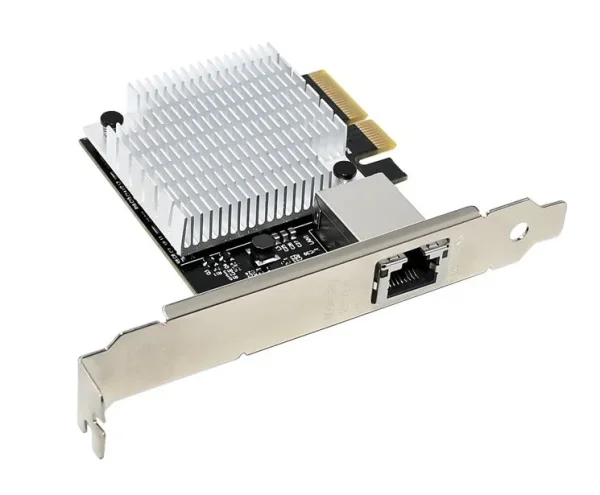

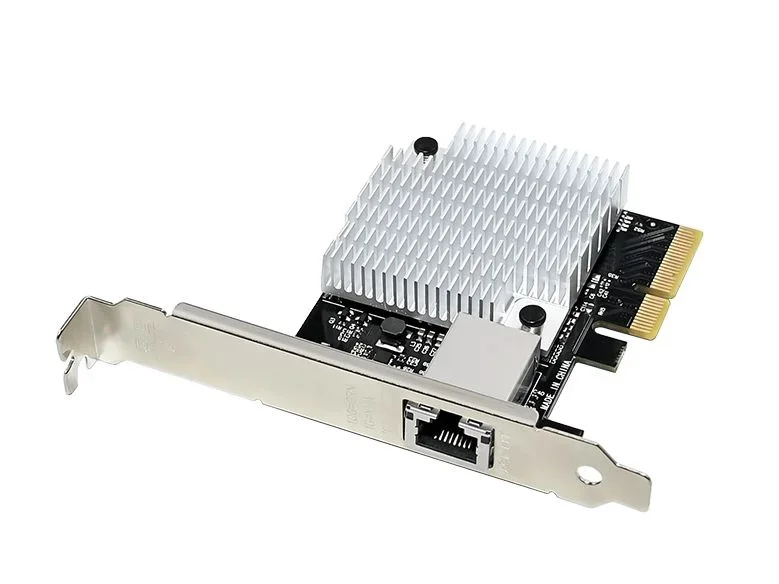

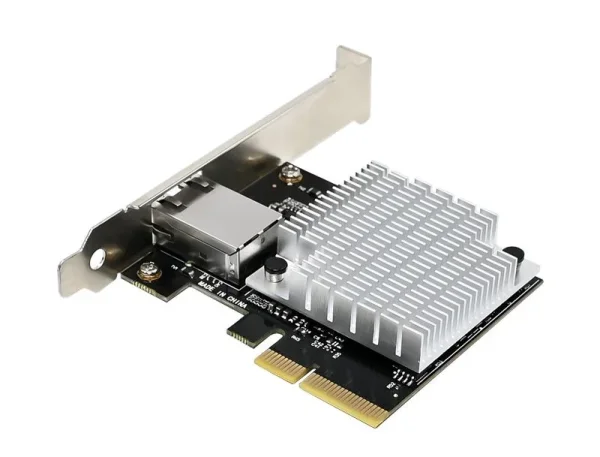

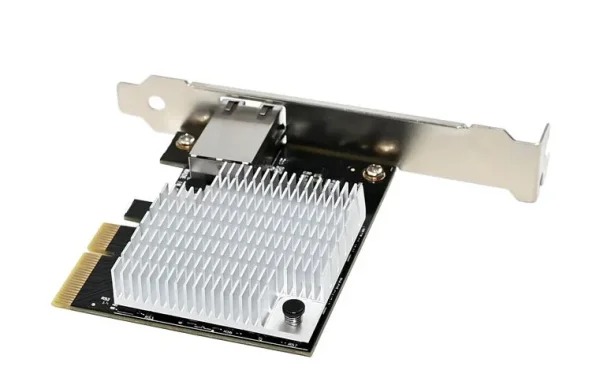

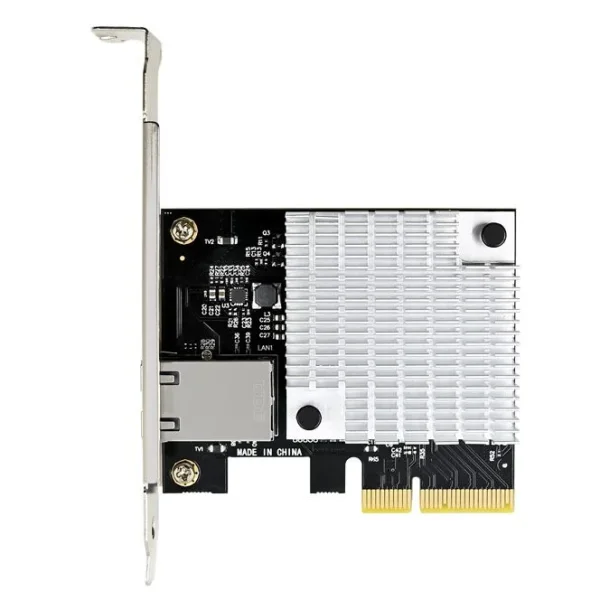

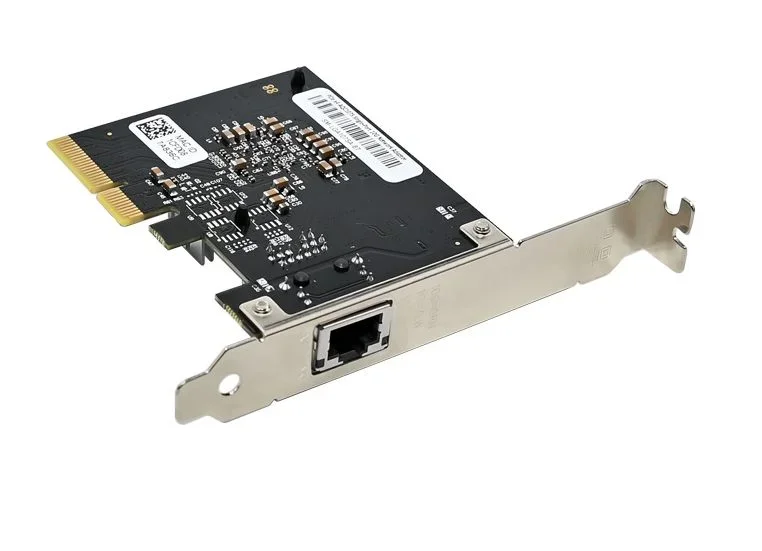

Highlights: The PCIe x4 AQC107S 10GbE Ethernet card is a high-performance, multi-gigabit Ethernet card that supports the 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T, the AQtion Ethernet controller easily handles the 10GbE Line-rate performance. The AQC107 incorporates Aquantia’s AQrate PHY technology which delivers 10GbE network connectivity speed through Cat 6a, and delivers 5 GbE and 2.5 GbE network connectivity speed through 100 meters of Cat 5e or better cabling enabling higher data rates with zero change to legacy cabling. FEATURES - Compliant with PCIE Express Revision 3.0 and downstream with PCI Express Reivison 2.0 - Supports line rate of 8.0GT/s and 5.0GT/s per lane - Supports communication and management function - Integrated Aquantia AQrate PHY featuring NBASE-T technology - Supports PHY specifications with 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T. - On-chip high resolution cable analyzer for advanced cable diagnostics - Energy Efficient Ethernet (EEE) Support - Supports IEEE1588v2 Precision Time Protocol - Support large send offload, Receive Side Scaling (RSS), Direct Cache Access (DCA) and Header checksum for increased network performance and lower host CPU utilization - Supports IPv4, IPv6 and IPv6/UDP checksum offload - Supports Jumbo frame (up to 16kbytes) - Quality of Service (QoS) - Supports up to eight traffic classes and Data Center Bridging (DCB) Target Applications - Marvell AQtion power leading -edge solutions for motherboards, PCs, Workstations, docking station, NAS, Router, Gateways and other embedded applications System Requirements - Drivers: Windows 10/8.1/8/7, Linux 3.10 and higher - Utilities: ROM programming and Windows Installer - Boot Options: UEFI and PXE Technical Details: Essentials Product Collection Network 10G mGig Controller Processors Marvell AQC107S Bus Type PCI Express Gen 3x2 or Gen 2x2 Data Rate 5-Speeds: 10G/5G/2.5G/1G/100M Media Copper 100 meters over Cat 6a at 10Gbps 100 meters over Cat 5e (or better) at 5Gbps/2.5Gbps/1Gbps/ 100Mbps (requires no change to existing infrastructure or cabling) Boot Options UEFI and PXE Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 79 mm x 68 mm (PCIe Board) Technical Specifications Network protocol IEEE802.3an, IEEE802.3bz, IEEE802.3ae, IEEE1588v2, IEEE802.3ab, IEEE802.3z, IEEE802.3u Jumbo frames 16Kbytes IPv4/IPv6 Flow Control Support Boot Options UEFI and PXE System Requirements Windows Client Windows 10/ 8.1/ 8/ 7, Windows Sever 2012/ 2012 R2/ 2016/ 2019 Apple device Mac OS Linux Client Linux kernel: 2.6.32/3.x/4.x or higher, Linux CentOS/RHEL6.5/7.X or higher, Ubuntu: 14.x/15.x/16.x or higher, VMware: ESX/ESXi 4.x/5.x/6.x or higher Environment & Certification Power Consumption Max. 3.8W at 10Gbps, 3.0W at 5Gbps Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) LED Indicators LINK (solid) and ACTIVITY (blinking) LINK S PEED ( green=10 G bps yellow=1 G bps) Marks CE FCC RoHS
Keine Maßangaben verfügbar.
